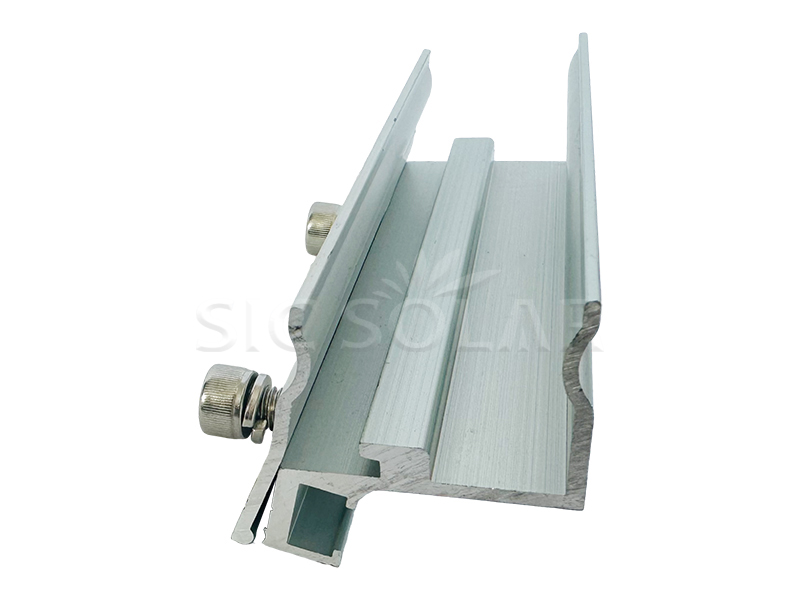

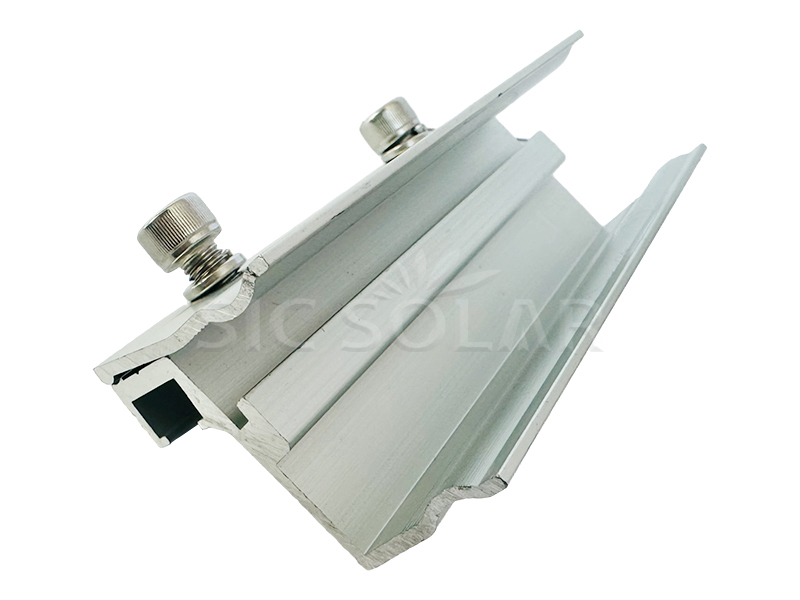

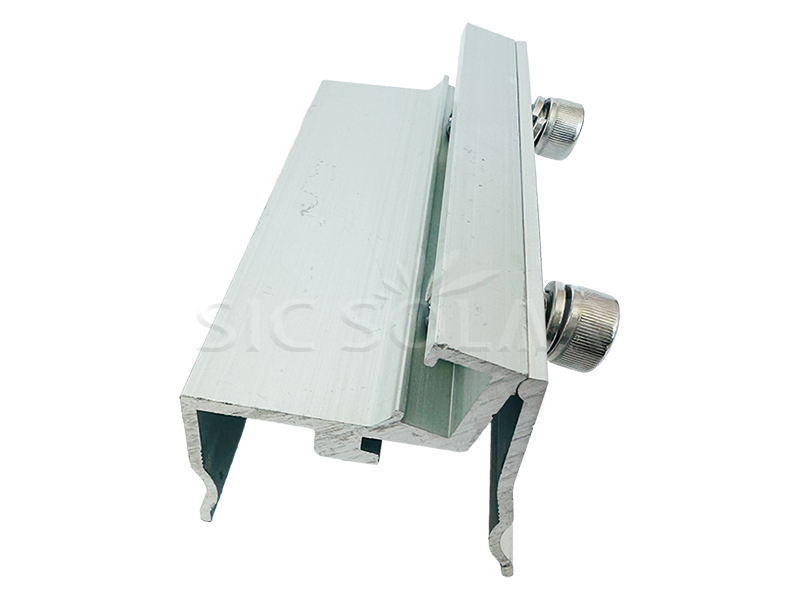

Solar Aluminum Rail Splice C Type

Solar Aluminum Rail Splice C Type is a crucial component used to join two sections of solar mounting rails, ensuring structural continuity and stability in photovoltaic installations. This C-shaped splice provides a strong connection that maintains the alignment and integrity of the solar mounting system.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-C

Color:

NATURE

Installation Site:

Solar Rail

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

Photovoltaic rail splice bracket

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

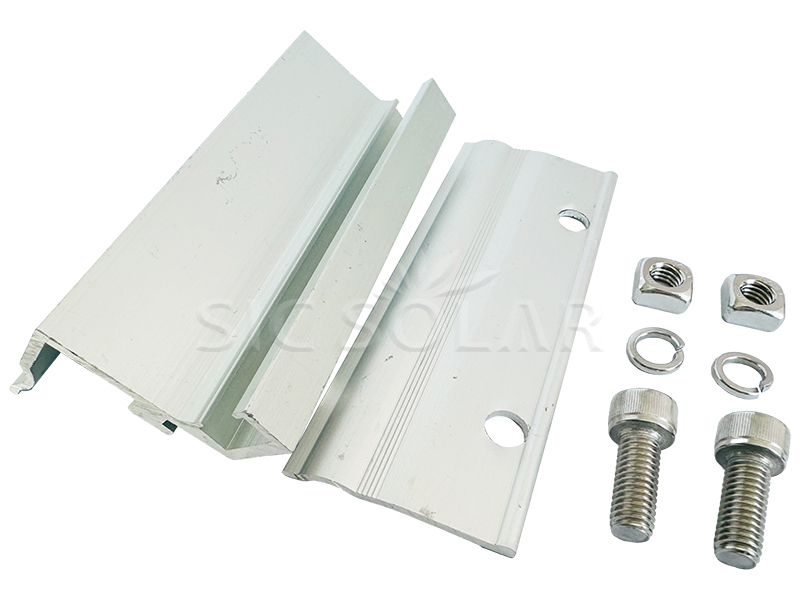

1️⃣ Insert the C-connector into the end of the first rail: Slide the connector halfway into the first rail's inner slot.

2️⃣ Align the second rail and slide in the connector: Position the second rail in line with the connector and push it in.

3️⃣ Secure with fasteners: Push bolts and nuts through the pre-drilled holes in both rails and the connector.

4️⃣ Tighten for stability: Make sure the connector is tight, flat, and properly aligned.

Aluminium profile connector

Advantages as follow:

☆ Various rail splices could be offered for different rail to extend the whole rail length.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Pre-assembled rail splices – highly save the labor cost at your installation site.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
