Non-Adjustable PV Flat Tile Roof Hook

Click here to learn more hooks

1️⃣ Determine rafter position – Mark the fixing points under the flat tile.

2️⃣ Lift or remove the tile – Carefully lift the tile to access the rafter.

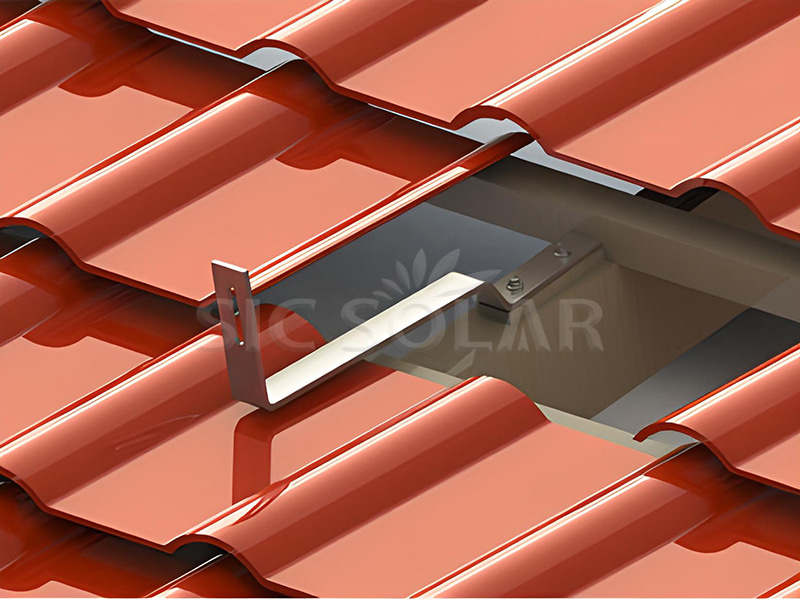

3️⃣ Attach the roof hook – Secure the hook base to the rafter using stainless steel screws.

4️⃣ Reposition the tile – Return the tile to its original position, ensuring the hook extends outward correctly.

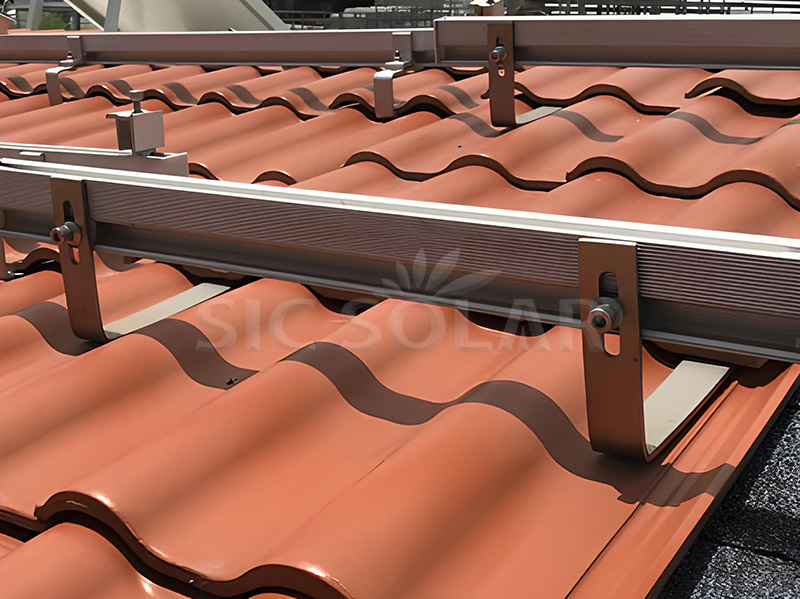

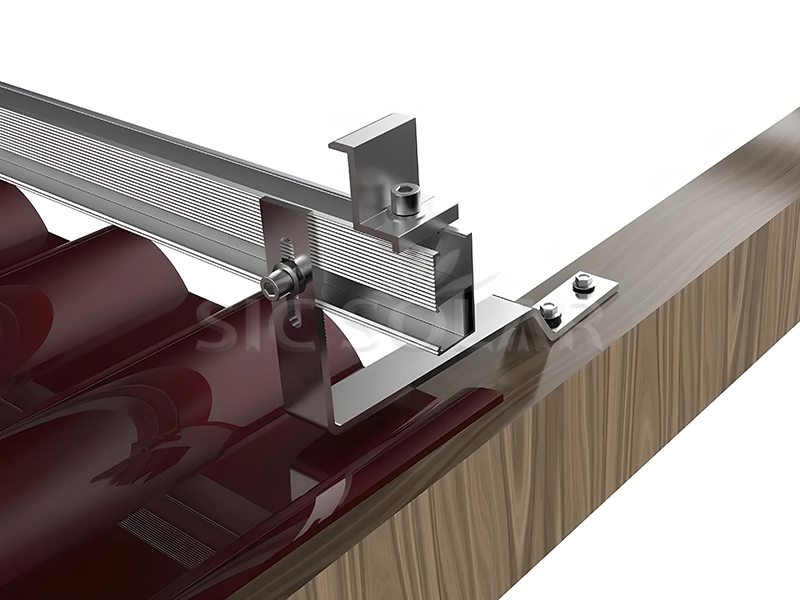

5️⃣ Install the mounting rail – Secure the solar rail to the hook using bolts and nuts.

6️⃣ Install the solar panel – Secure the PV module using the middle and end clamps.

7️⃣ Final check – Ensure the tile is intact and all connections are tightened.

Advantages as follow:
☆ Accommodate different types of flat tile roofs.
☆ Custom-made tile hooks based on tile specifications.

☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.

☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate:

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

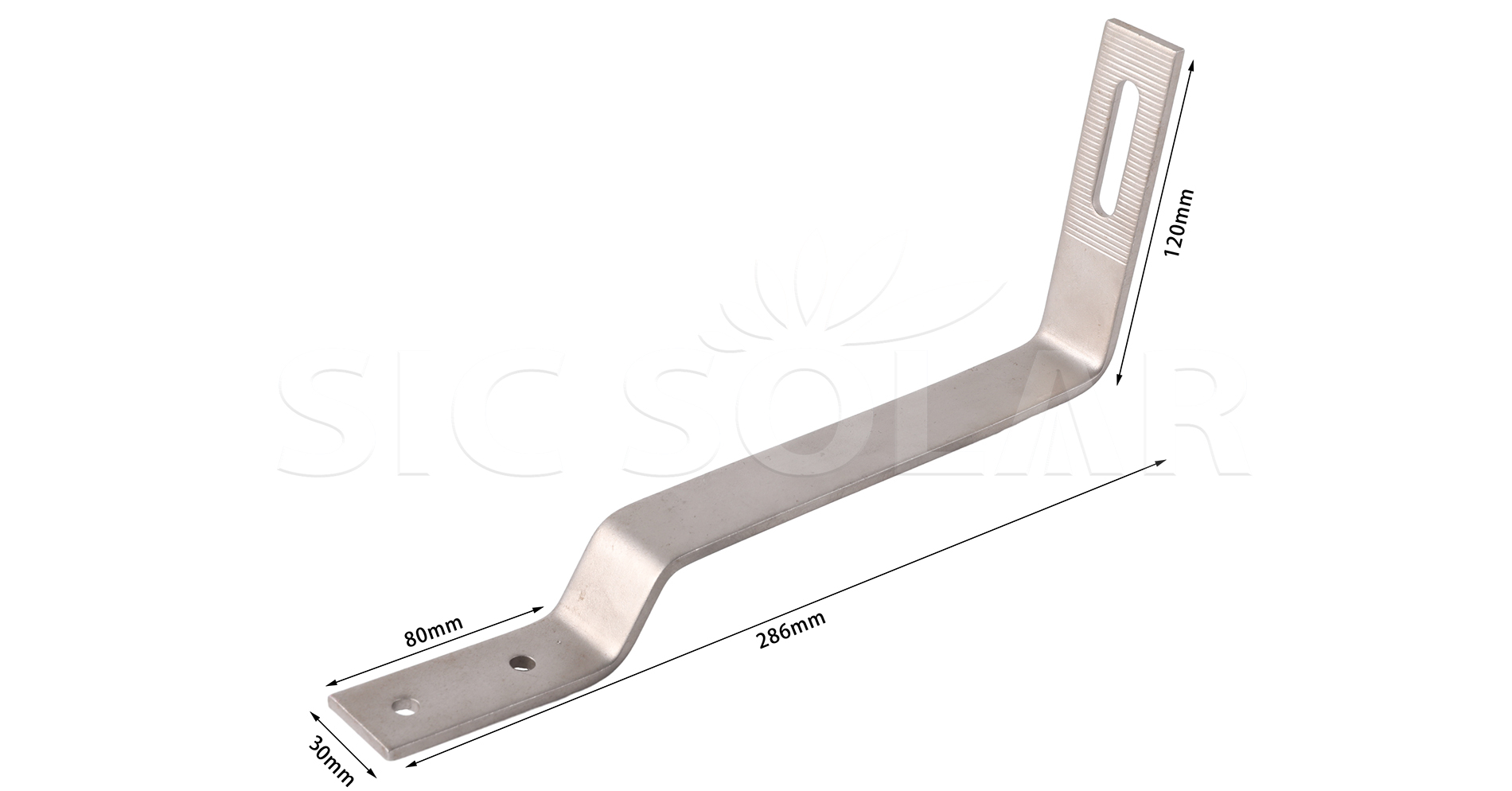

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

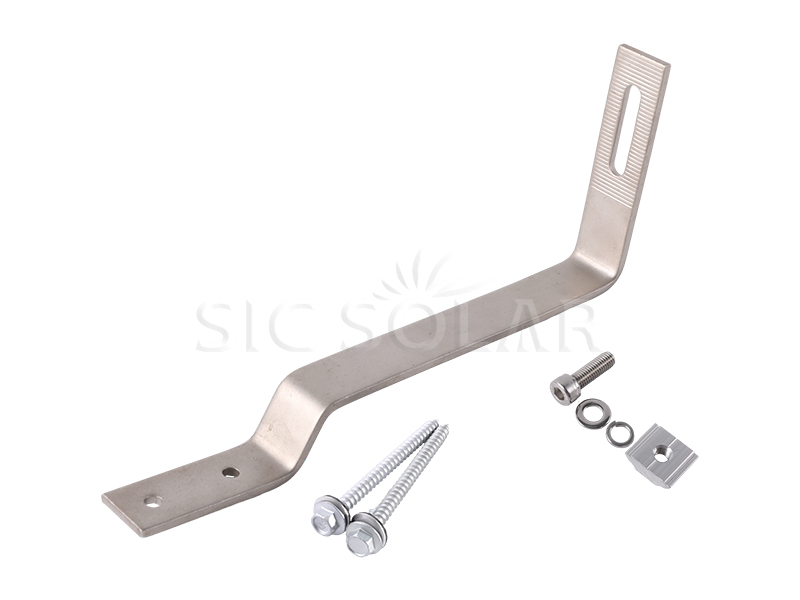

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
