China Solar aluminum carport mounting system manufacturer

Solar aluminum carport mounting system

Solar aluminum carport mounting system is a canopy-style structure that raises photovoltaic panels above the parking space, providing shade and power without requiring extensive ground penetration. They are suitable for use in areas ranging from residential driveways to large commercial lots and can integrate electric vehicle charging stations beneath the canopy.

Brand:

SIC SOLAR

Item NO.:

SIC-SC3-H

Installation Site:

Ground or Openfiled

Tilt Angle:

<60 degree

Material:

AL6005-T5

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

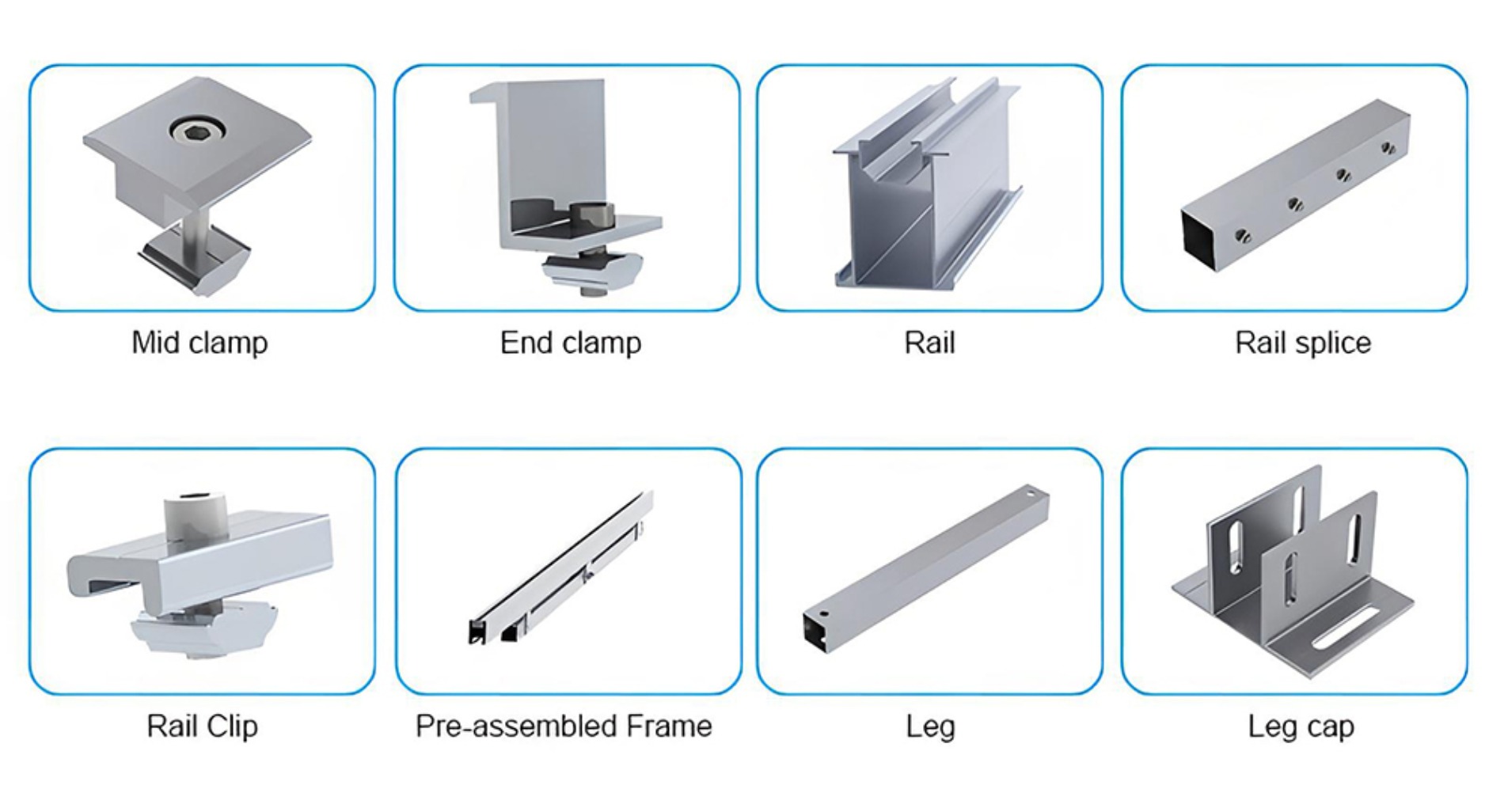

Components Project Technical Details Installation Guide Package Advantage

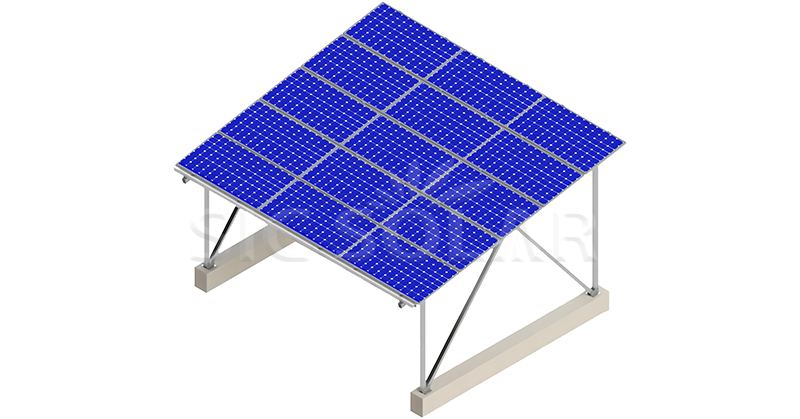

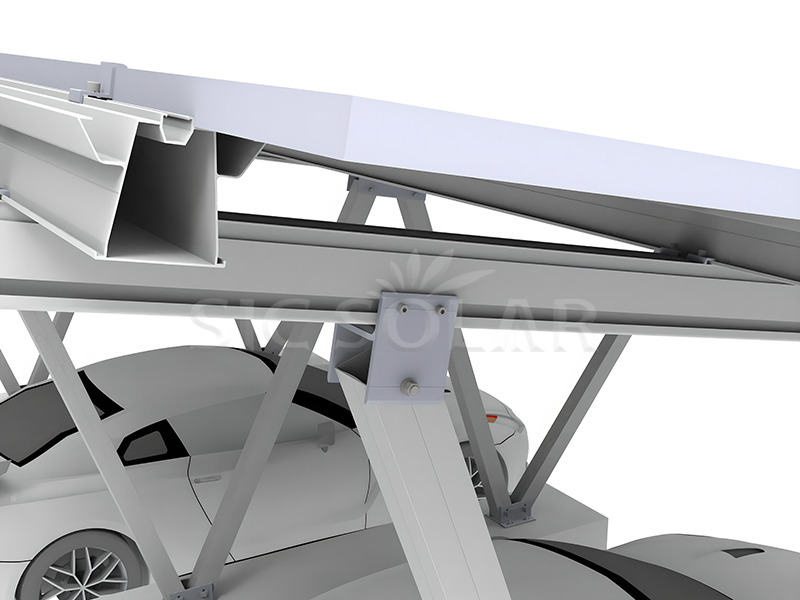

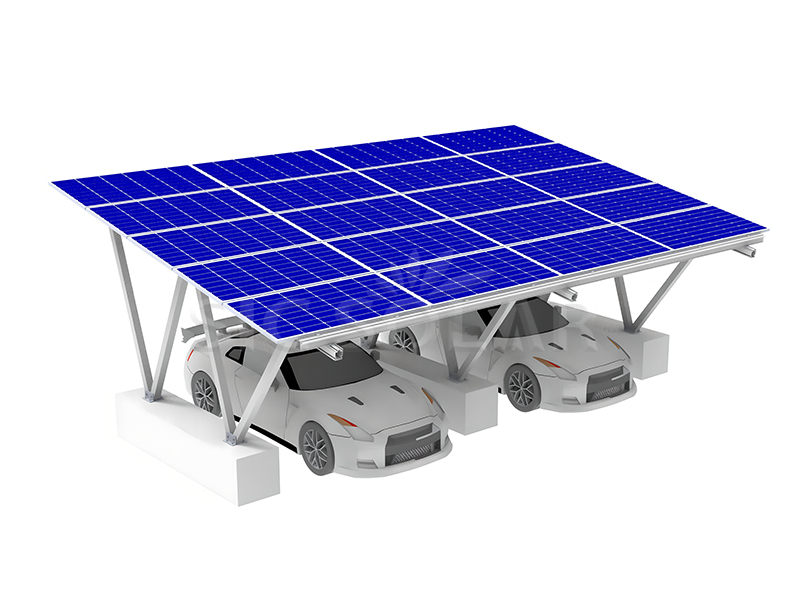

Solar carport components Solar carport structure

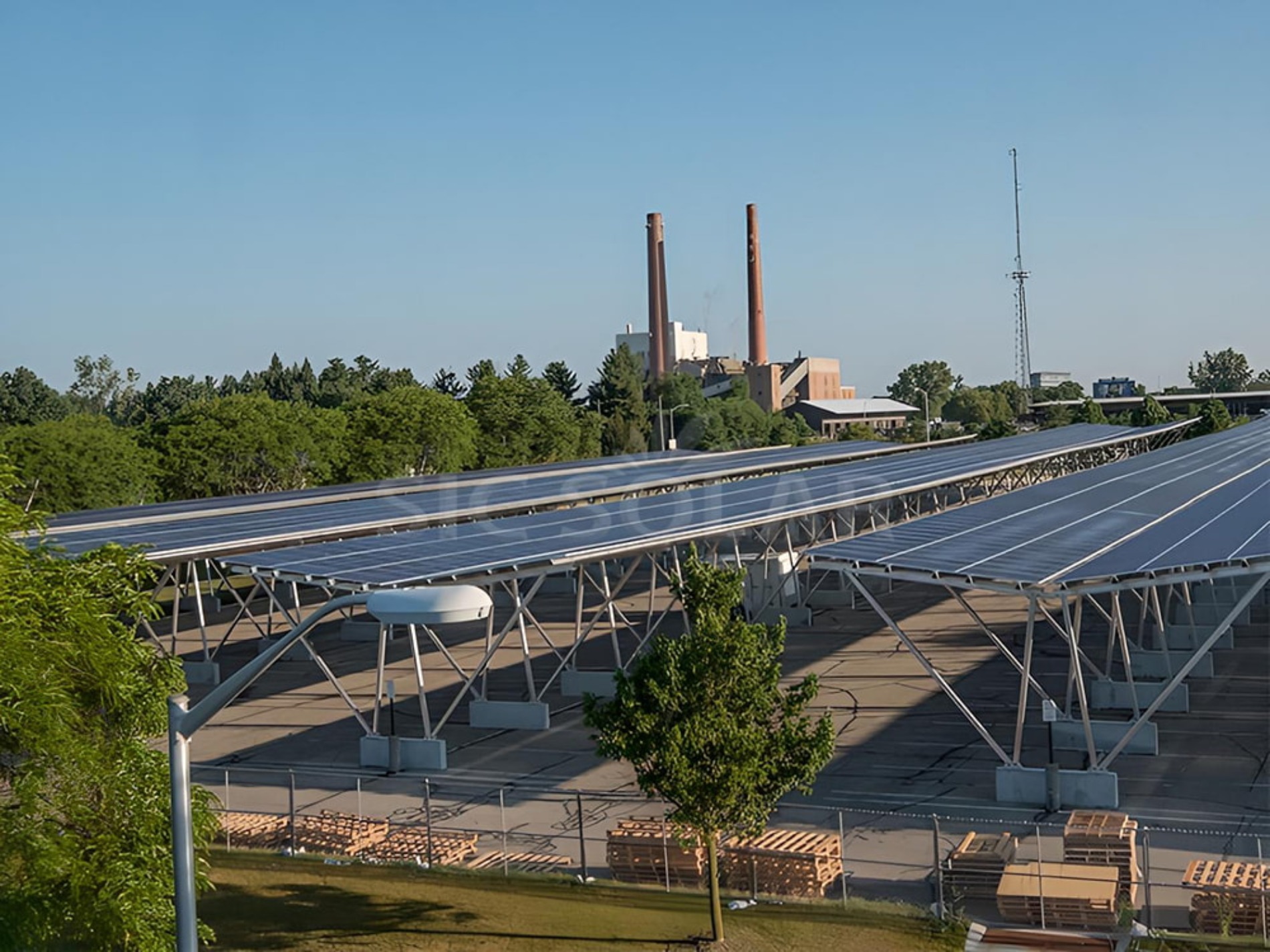

Solar carport power station

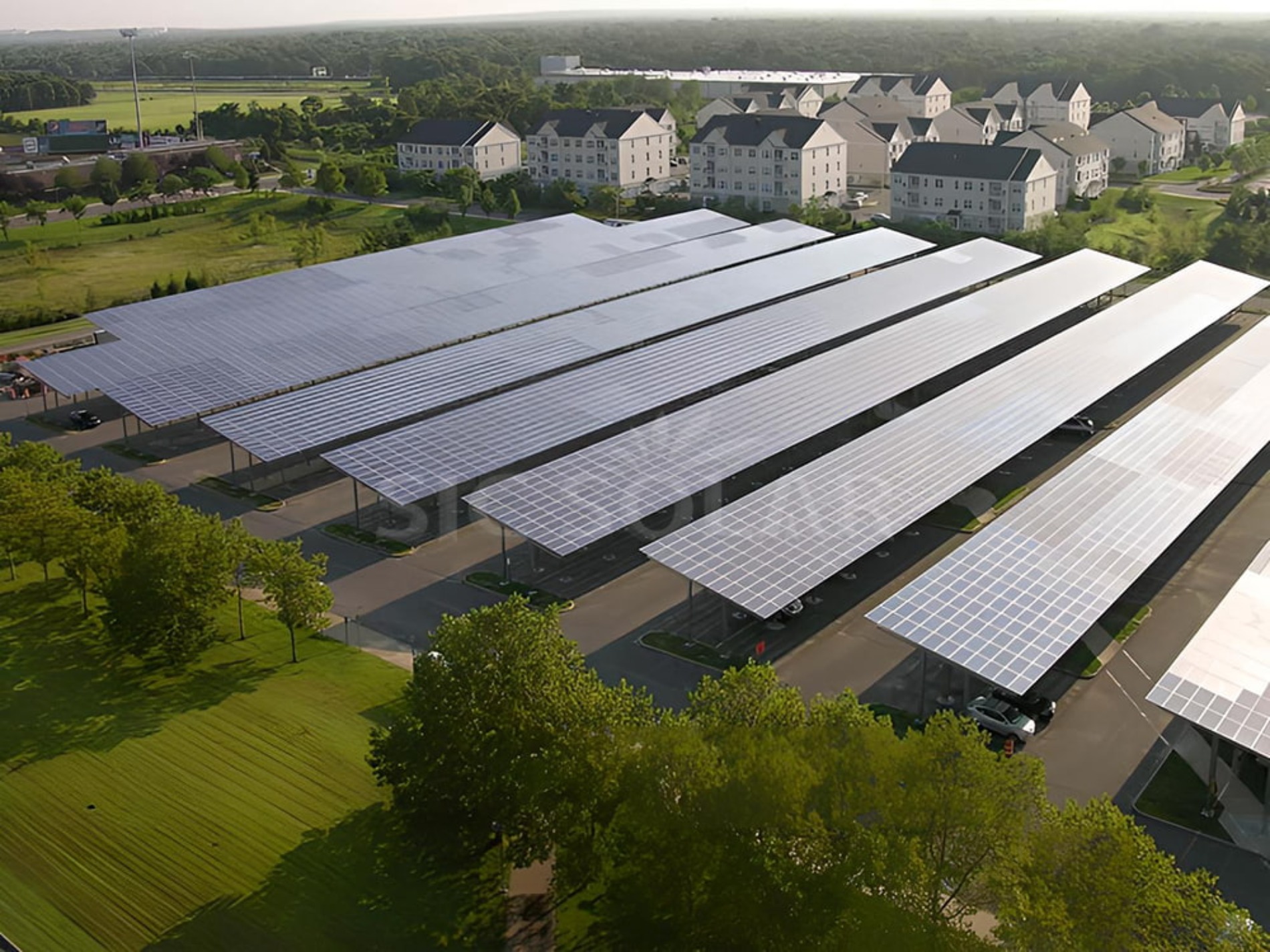

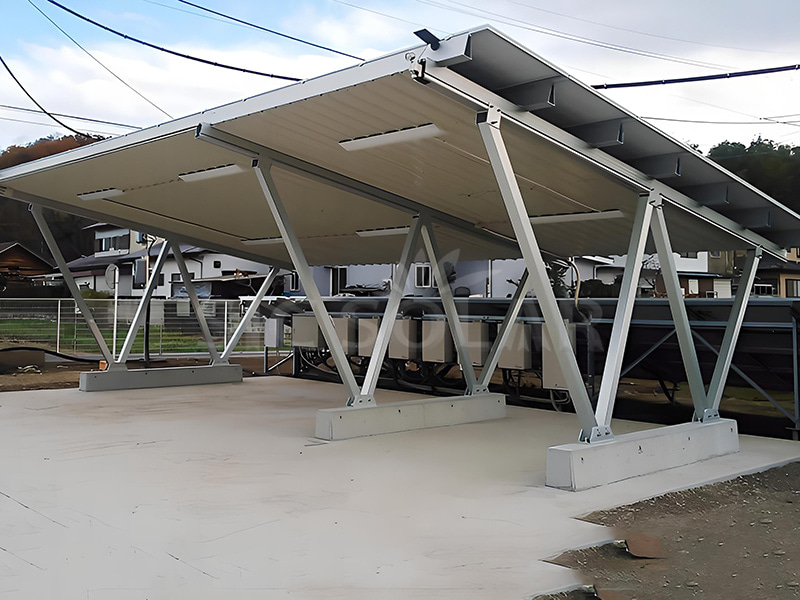

Solar carport project

Product Name	Solar aluminum carport mounting system
Installation Site	Ground or Openfiled
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Site Investigation and Planning

Perform geotechnical assessment and layout marking; select foundation type (screw piles or concrete piers) based on soil data.

2️⃣ Foundation Installation

Install foundation to designed depth and ensure verticality within ±10 mm across support row.

3️⃣ Frame Assembly

Bolt columns and beams together using pre-drilled holes; leave bolts empty for final alignment.

4️⃣ Tilt Bracket and Track Connection

Fix tilt bracket to beam at designed angle, then slide track into bracket and hand tighten fasteners.

5️⃣ Module Installation

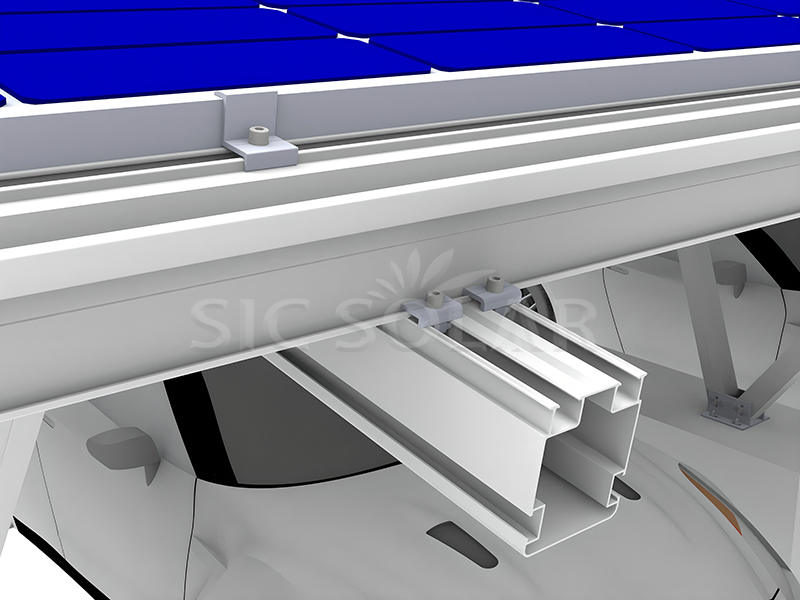

Insert stainless steel clamp into track slot, place module, and tighten bolts to 15-20 Nm using calibrated wrench.

6️⃣ Grounding and Bonding

Connect module frame and aluminum track to grounding system using dedicated grounding lugs; verify continuity according to local regulations.

7️⃣ Final inspection and commissioning

Torque check all fasteners, inspect coating for damage, verify tilt angles, and record as-built drawings; schedule regular inspections.

Our standard package is steel pallet for long aluminum profile, while small aluminum components will be packed into cartons with plywood pallet.

Solar bracket package

Advantages as follow:

☆ Solar carport could be customized according to your ground size.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.

☆ Pre-assembled main frame – highly save the labor cost at your installation site.

Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
