Solar Universal Stainless Steel Tile Roof Hook

Click here to lean more hooks

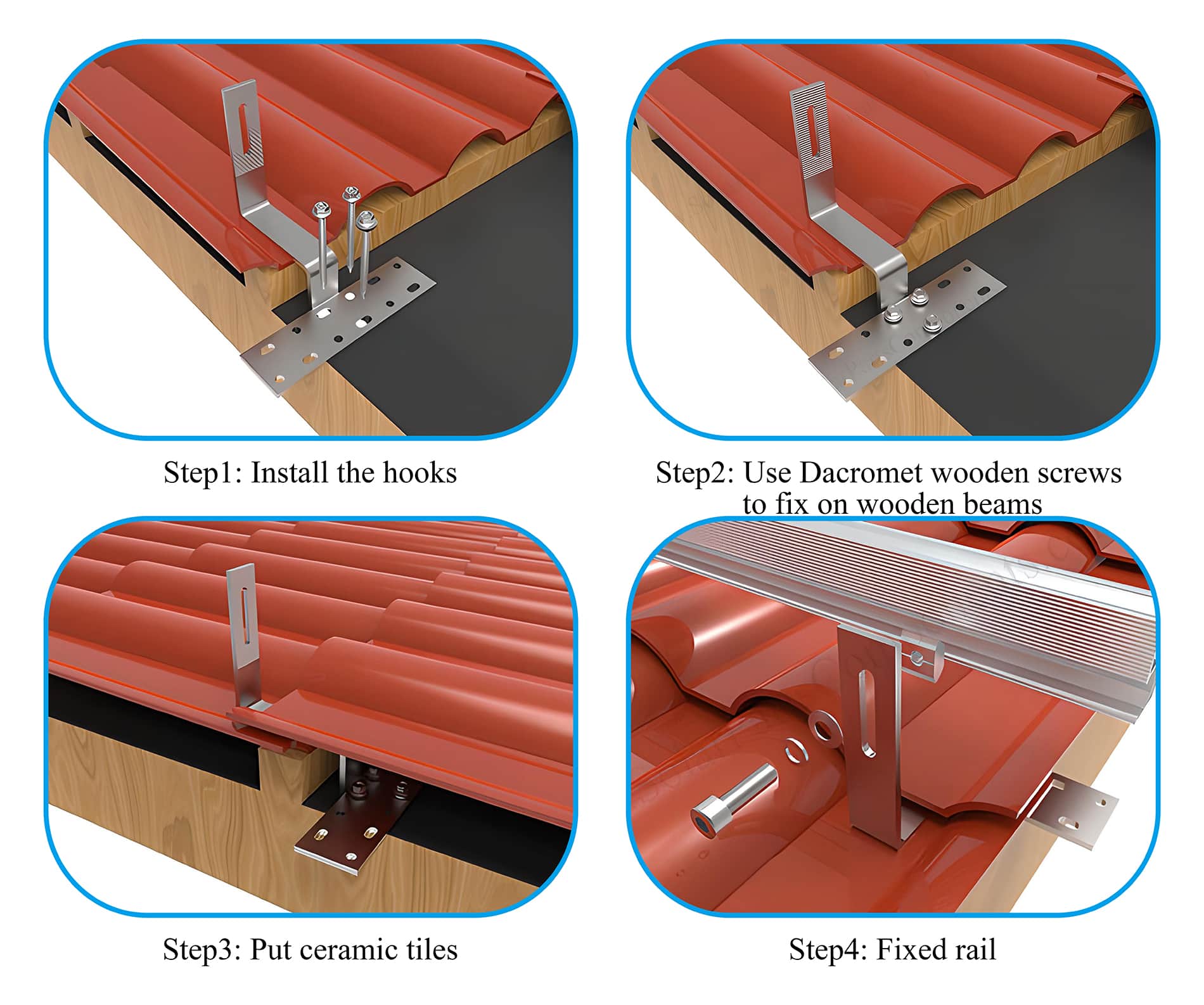

1️⃣ Determine rafter position – Mark the fixing points for the roof hooks.

2️⃣ Lift or remove tiles – Carefully adjust or remove the tiles above the fixing points.

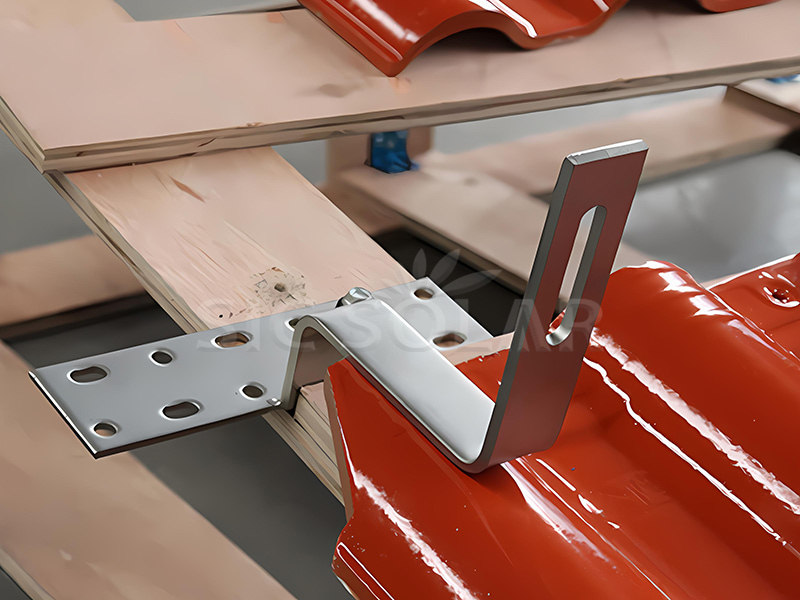

3️⃣ Attach the hook base – Secure the hook to the rafter using stainless steel screws.

4️⃣ Reposition the tile – Place the tile back onto the hook, ensuring a secure fit.

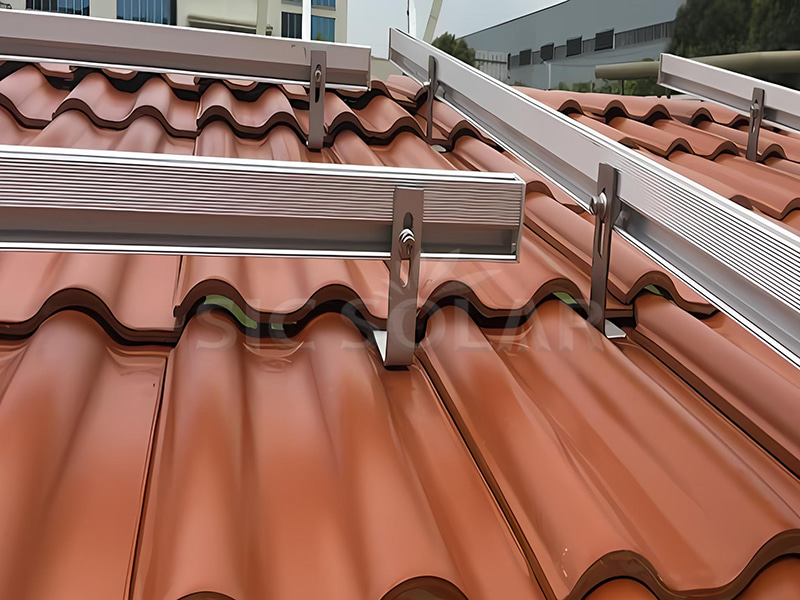

5️⃣ Install the mounting rail – Secure the aluminum rail to the roof hook using bolts and nuts.

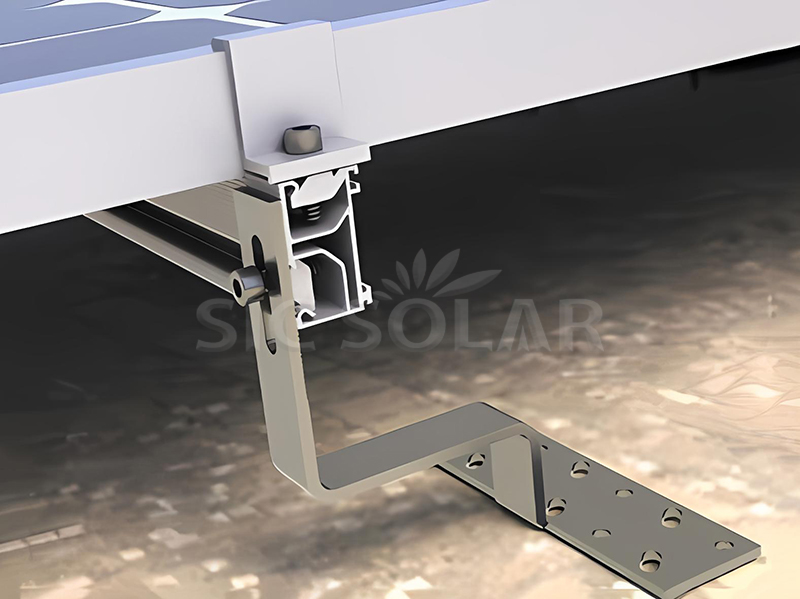

6️⃣ Install the solar panel – Attach the PV module to the rail using the mid- and end clamps.

7️⃣ Final check – Ensure the tiles are properly installed and all fasteners are securely tightened.

Advantages as follow:
☆ High Quality – Best stainless steel 304 ensure, corrosion resistant and anti-oxidation.

☆ 10 years warranty and 25 years service time.

☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate:

Our CE Certificate for solar tile hook roof mount system

Our ISO Certificate for solar tile roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

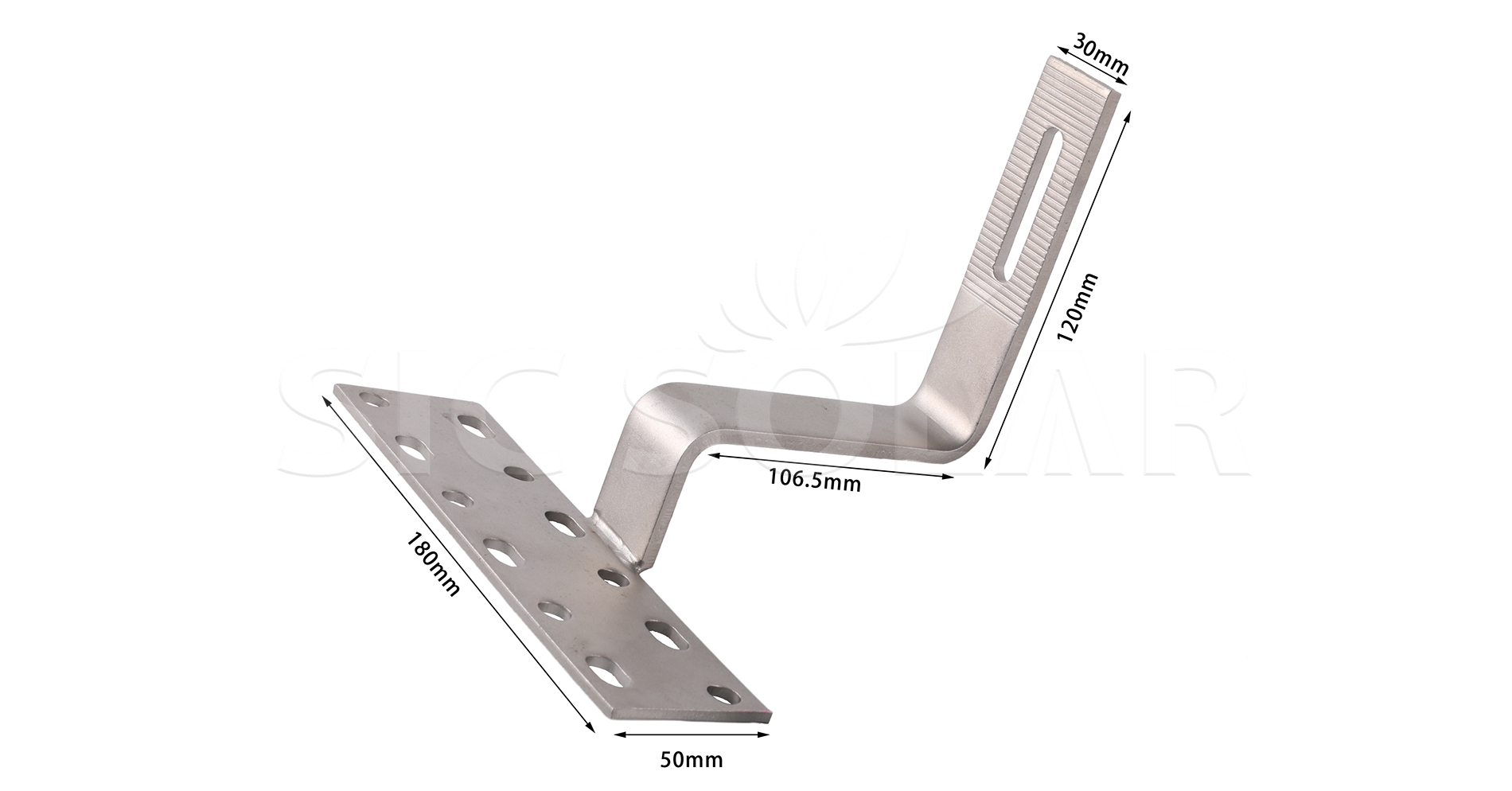

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

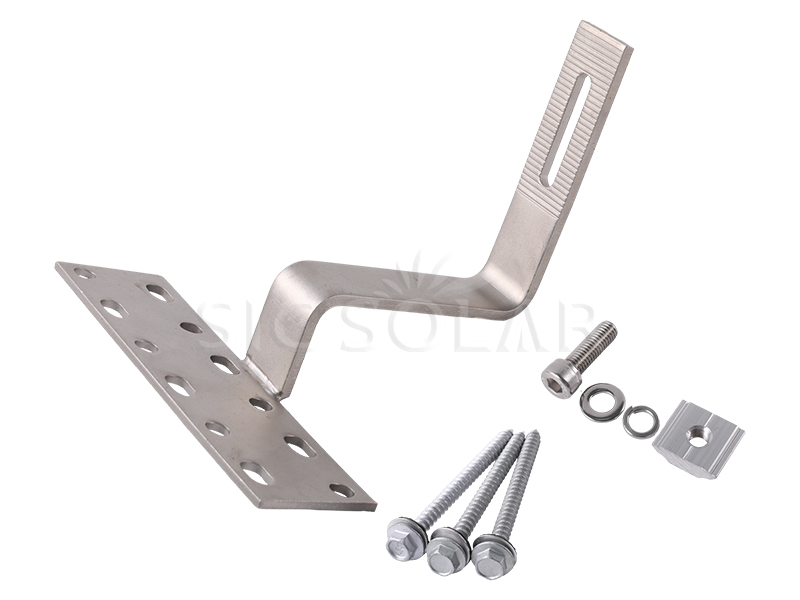

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
