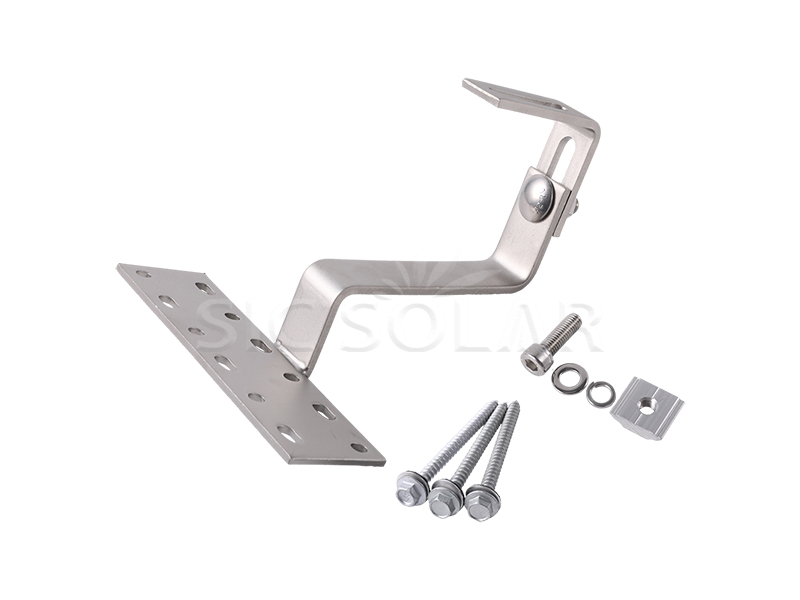

Solar Adjustable Roof Hook For Tile Roof Bracket

Click here to learn more hooks

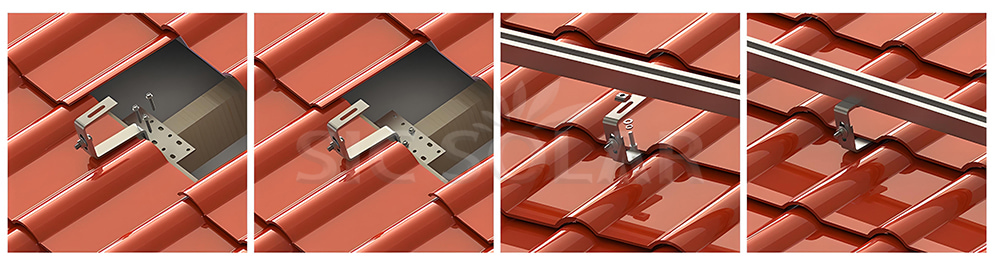

1️⃣ Position the roof rafters – Determine the location of the rafters below the tiles for secure attachment.

2️⃣ Carefully lift the tiles – Raise the tiles above the mounting point without damaging them.

3️⃣ Install the roof hooks – Position the hooks above the rafters and adjust their height or lateral position as needed.

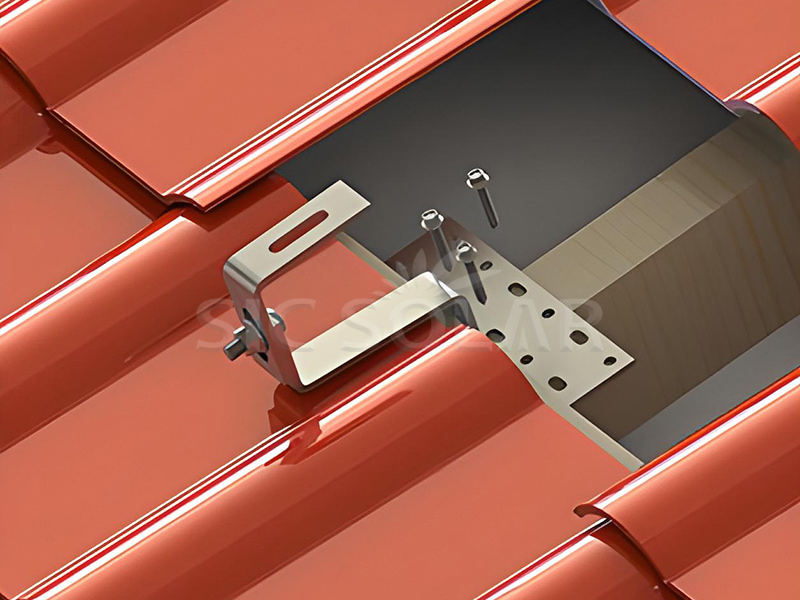

4️⃣ Secure the hooks – Secure the hooks to the rafters using stainless steel screws or lag bolts.

5️⃣ Reposition the tiles – Lower the tiles to ensure they are flush with the hooks.

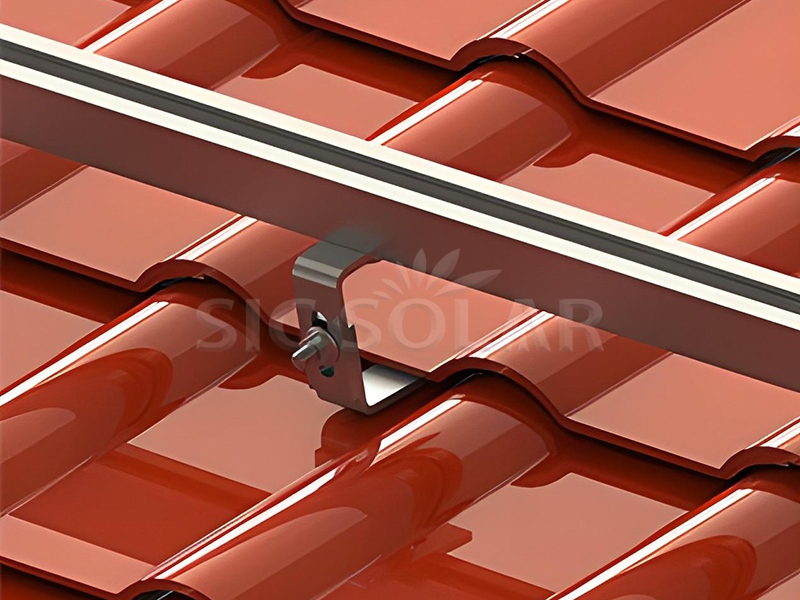

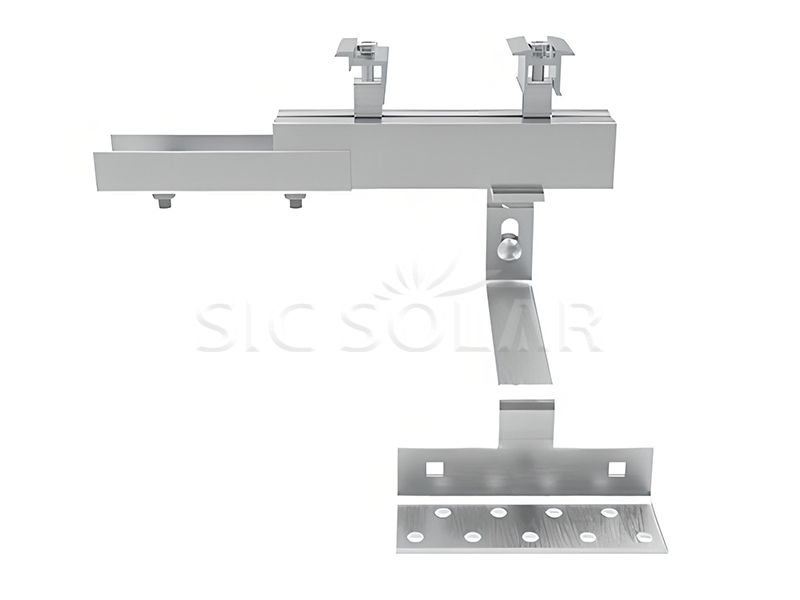

6️⃣ Install the mounting rails – Secure the aluminum rails to the hooks using bolts and washers.

7️⃣ Install the solar panels – Install the PV modules and secure them with center and end clamps.

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

Advantages as follow:
☆ Height adjustment (39mm, From 130mm to 169mm)
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGSCertificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

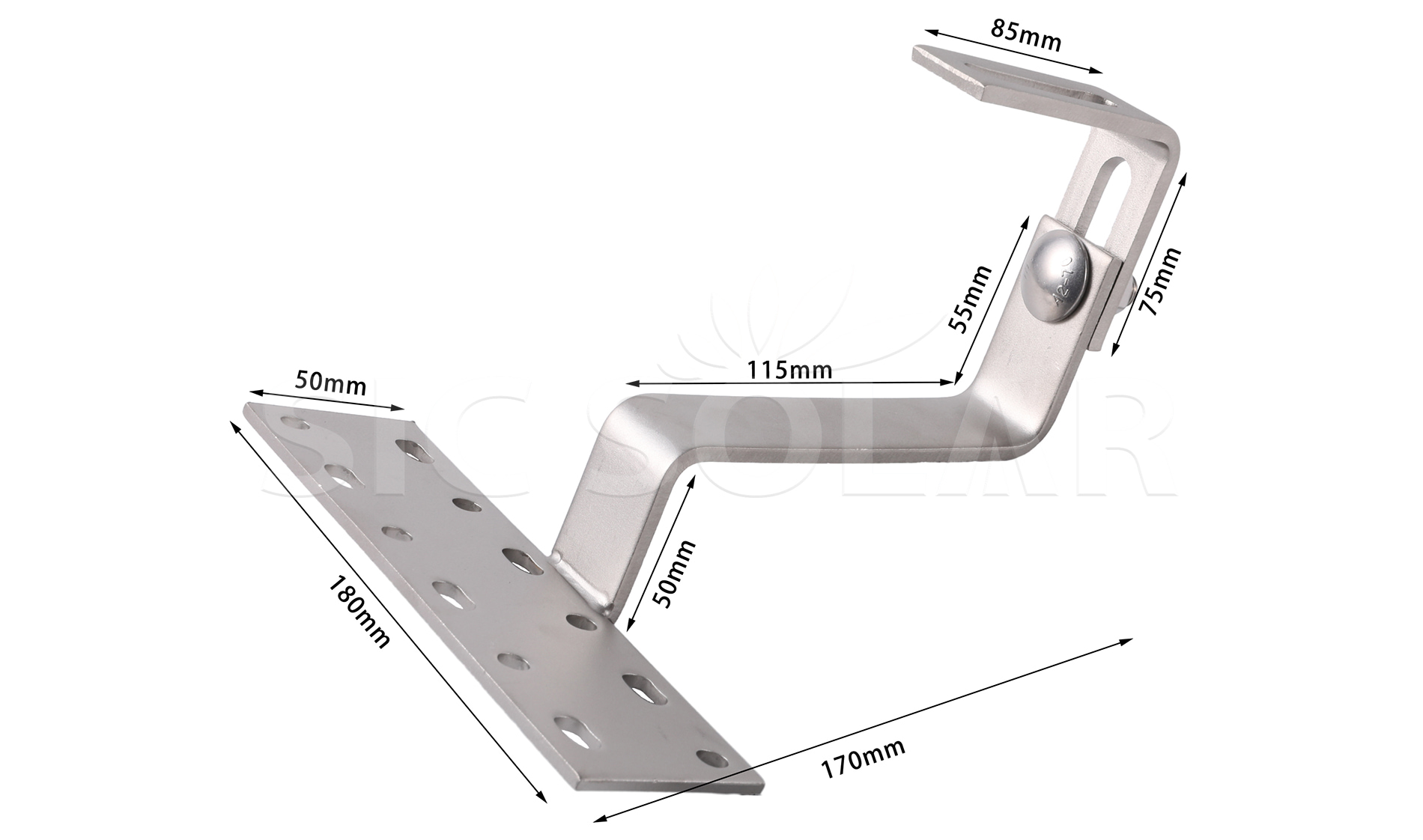

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
