Aluminum Adjustable Roof Hook Solar Mount Brackets

If you're putting up solar panels, these Aluminum Adjustable Roof Hook Solar Mount Brackets are a key part of the setup. They're designed to hold panels securely on tile roofs, no matter the roof type, angle, or how thick your tiles are.

Brand:

SIC SOLAR

Item NO.:

SIC-AH

Shipping Port:

Xiamen port

Installation Site:

Pitched roof

Color:

Silver and Black

Material:

AL6005-T5

Warranty:

10 years and 25 years

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

Click here to learn more hooks

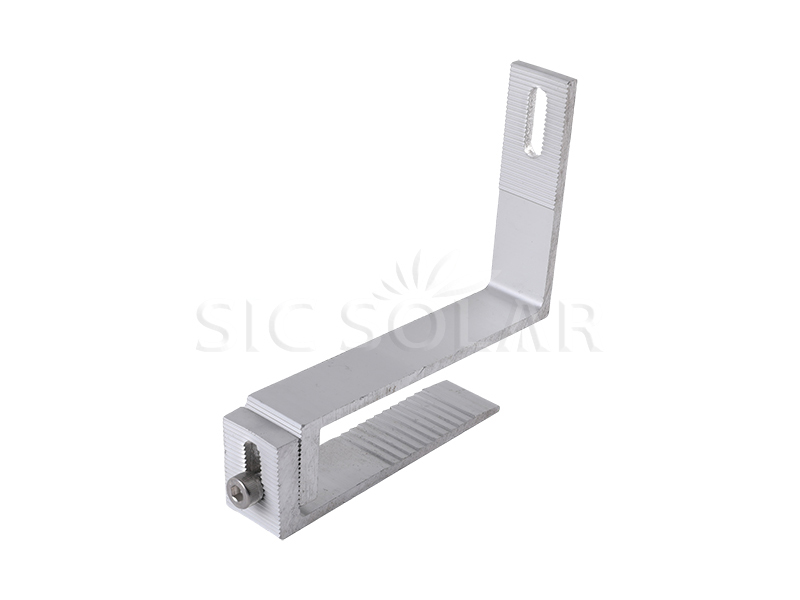

Aluminum Roof Hook

Name	Aluminum adjustable roof hook solar mount brackets
Installation Site	Pitched roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Silver and Black
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

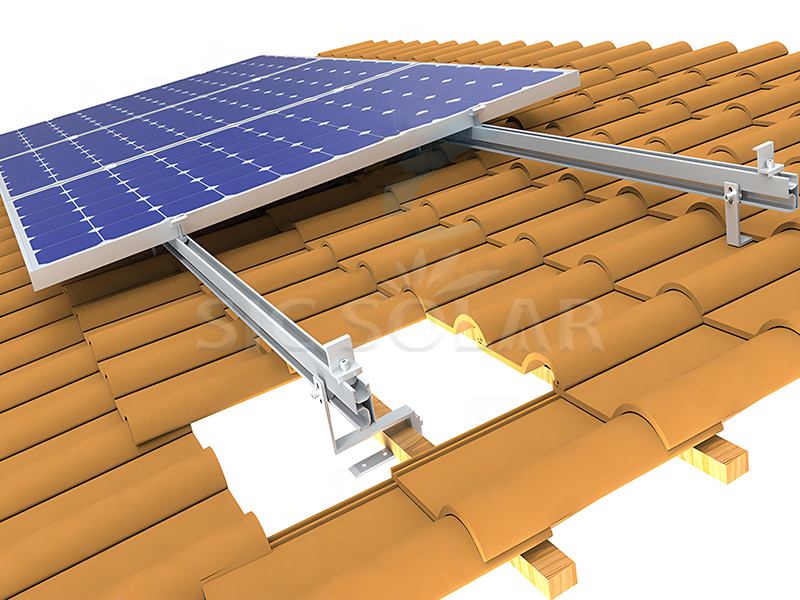

1️⃣ First, find where your roof rafters are. You'll need to mark those spots under the tiles where you'll attach things.

2️⃣ Then, carefully lift a tile to find where the hooks will go.

3️⃣ Next, screw in the aluminum hooks using stainless steel screws to make sure they're secure.

4️⃣ After that, adjust the hooks' height or angle so they line up perfectly with your guide rails.

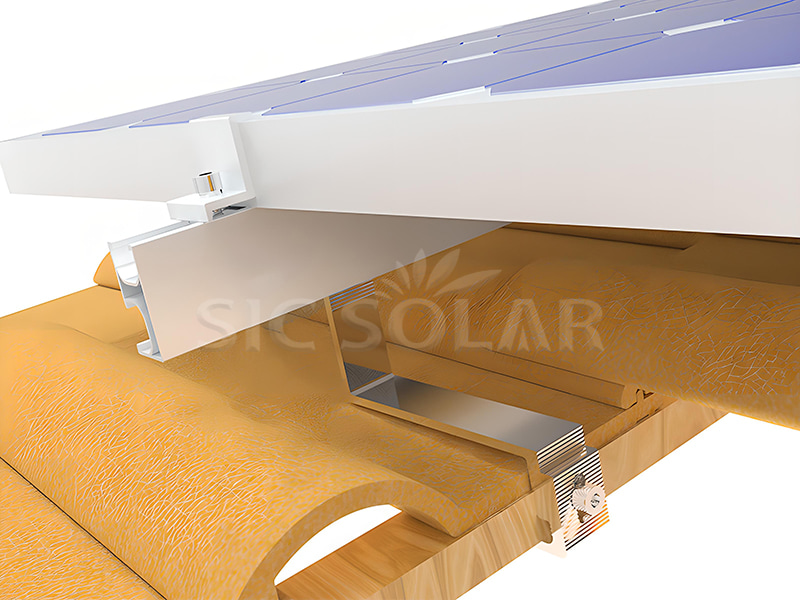

5️⃣ Put the roof tiles back, making sure everything stays waterproof while leaving the hooks exposed.

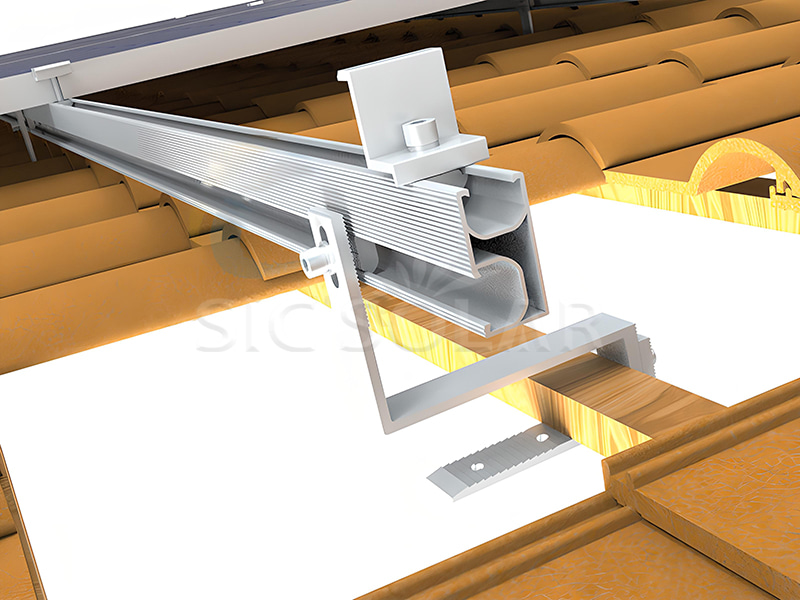

6️⃣ Finally, attach your guide rails and then use clamps to secure the solar panels.

Solar bracket package

☆ High anodized -- Effectively prevent corrosion and prolong service life.

☆ High-quality and light weight aluminum -- Quick and easy to mount.

☆ Strong intensity -- It can be used in extremely bad installation condition.

☆ Decrease Labor -- No cutting of the tile required.
