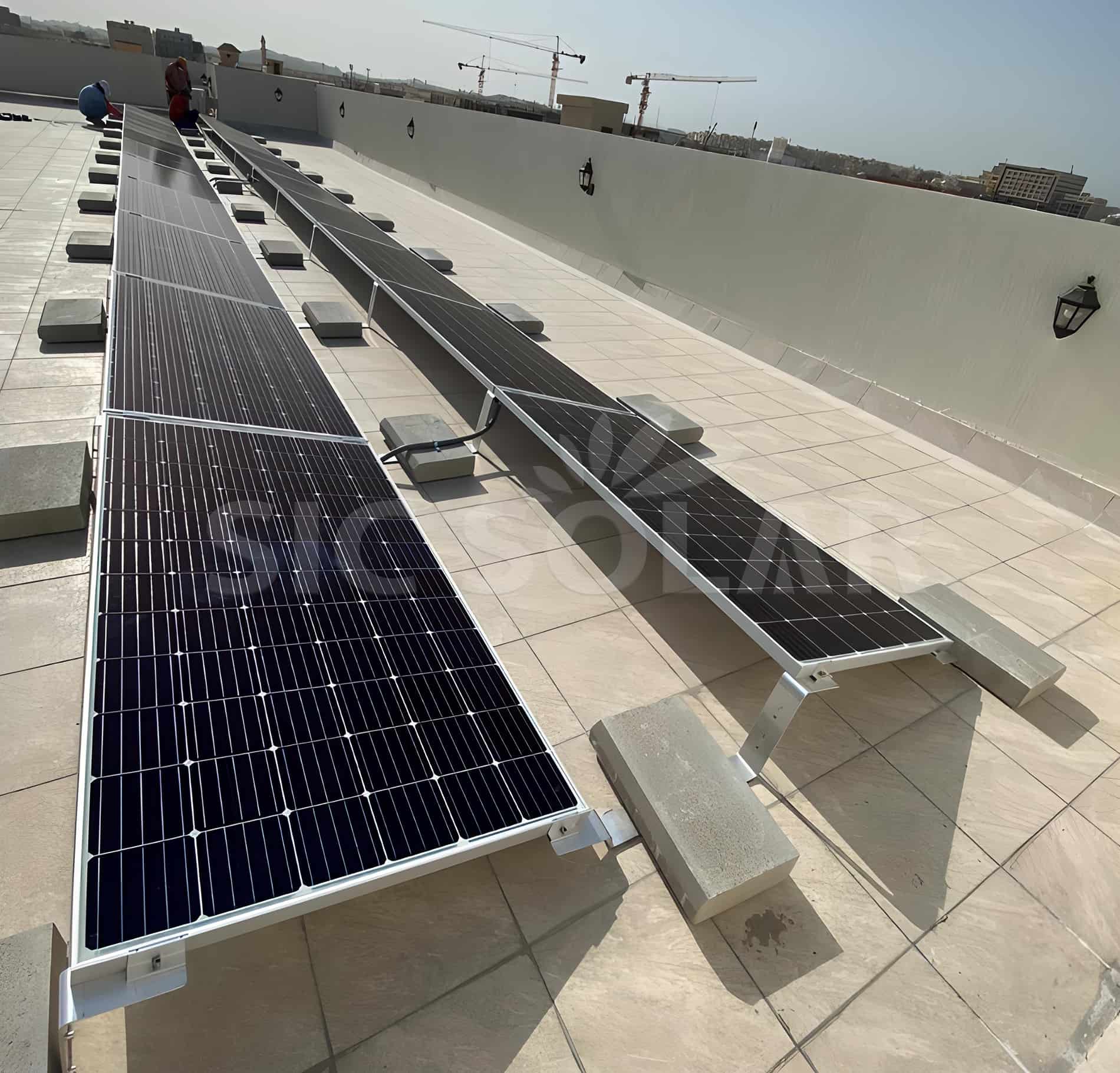

Ballasted Solar PV Roof Mounting System

Click here to learn more produce

1️⃣ Design & Load Assessment

Analyze roof capacity, wind/snow loads, and optimize array layout.

2️⃣ Install Support Structure

Position frames according to layout drawings.

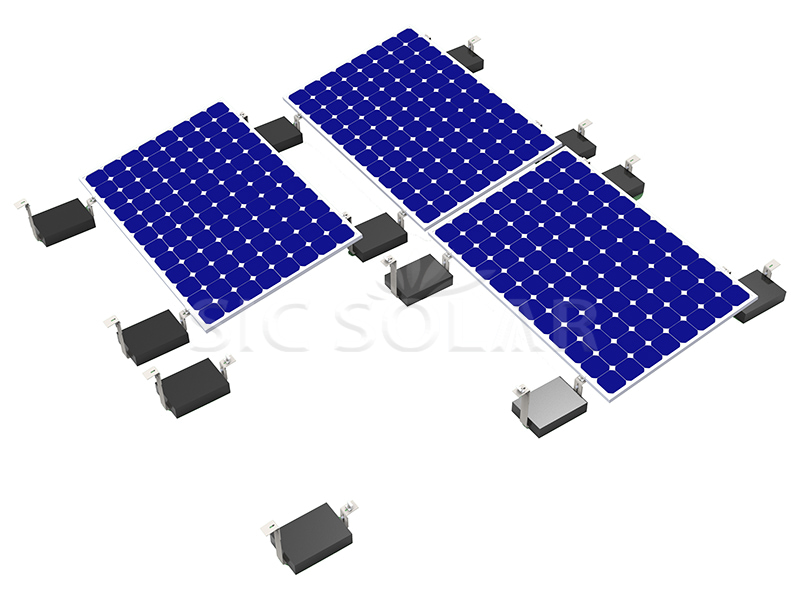

3️⃣ Add Ballast Blocks

Load concrete or paving blocks into designated pallets to hold down the system.

4️⃣ Install Solar Panels

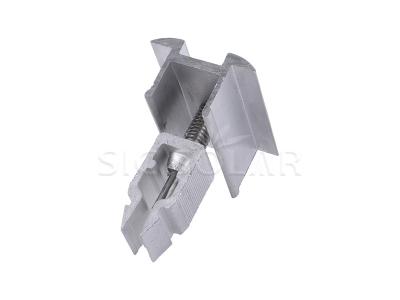

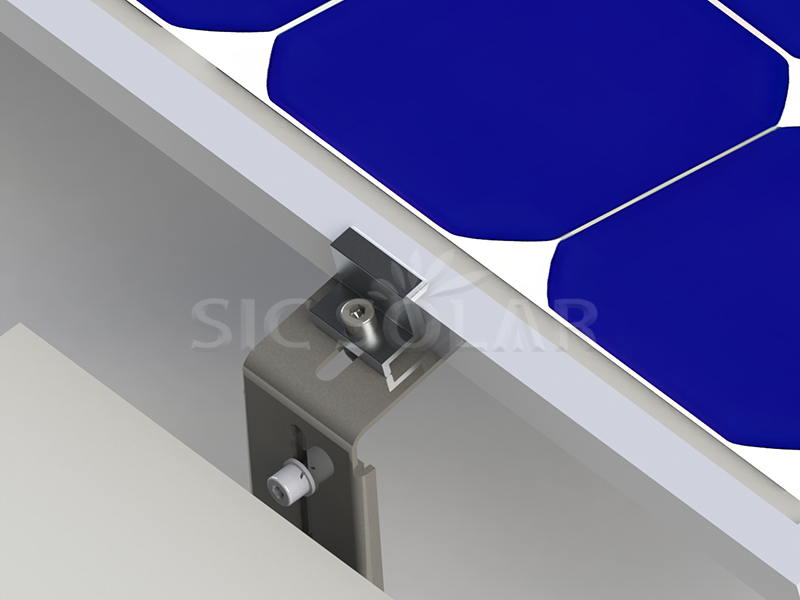

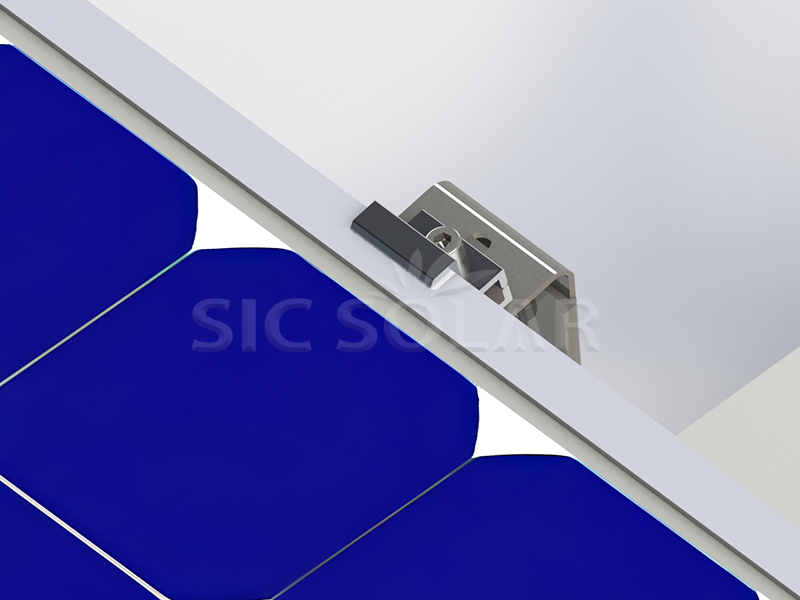

Secure solar panels using aluminum end clamps.

5️⃣ Wiring & Grounding

Route wiring, add grounding lugs/clips, and ensure safety requirements are met.

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

Advantages as follow:

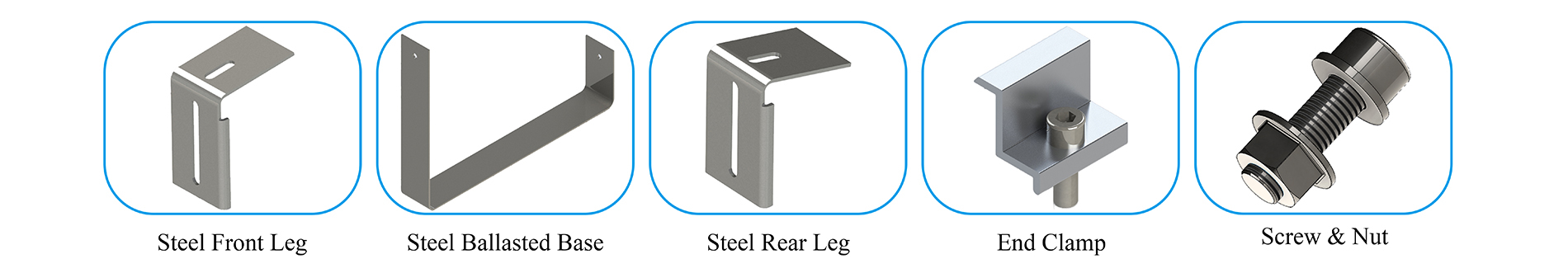

☆ Easy to use - Only Ballast Frame and Screws.

☆ High Durability – Best steel Ensure 10 years warranty and 25 years service time.

☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.

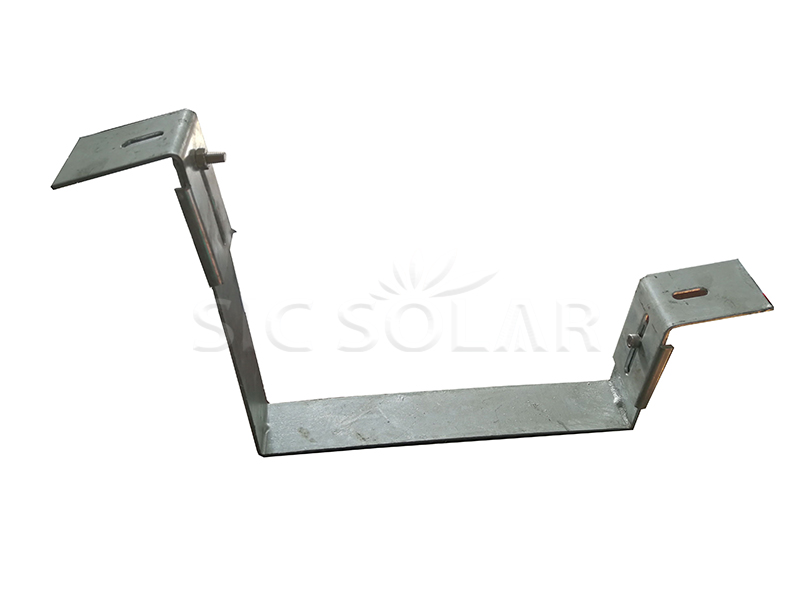

☆ Pre-assembled adjustable ballast frame  – highly save the labor cost at your installation site.

Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. Can you provide East-West Ballasted Mount?

Yes.

Q2. What’s the weight of Ballasted Object?

This will need customers local wind speed and snow load.
