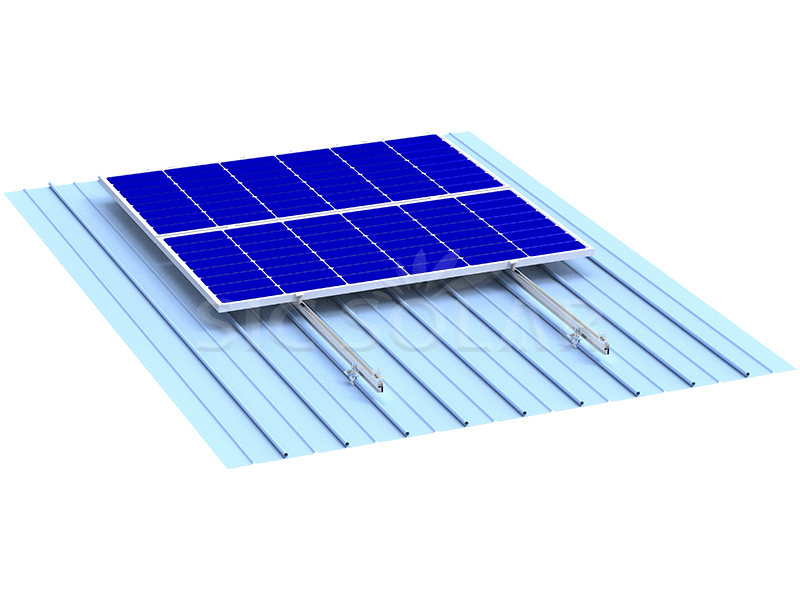

Metal Roof Solar Panel Mounting Structure

Metal Roof Solar Panel Mounting Structure provides a stable and reliable base for installing solar panels on metal roofs. It securely connects the PV modules to the roof while keeping the panels properly aligned and spaced.

Brand:

SIC SOLAR

Item NO.:

SIC-TC-10

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Metal Roof

Color:

Natural

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

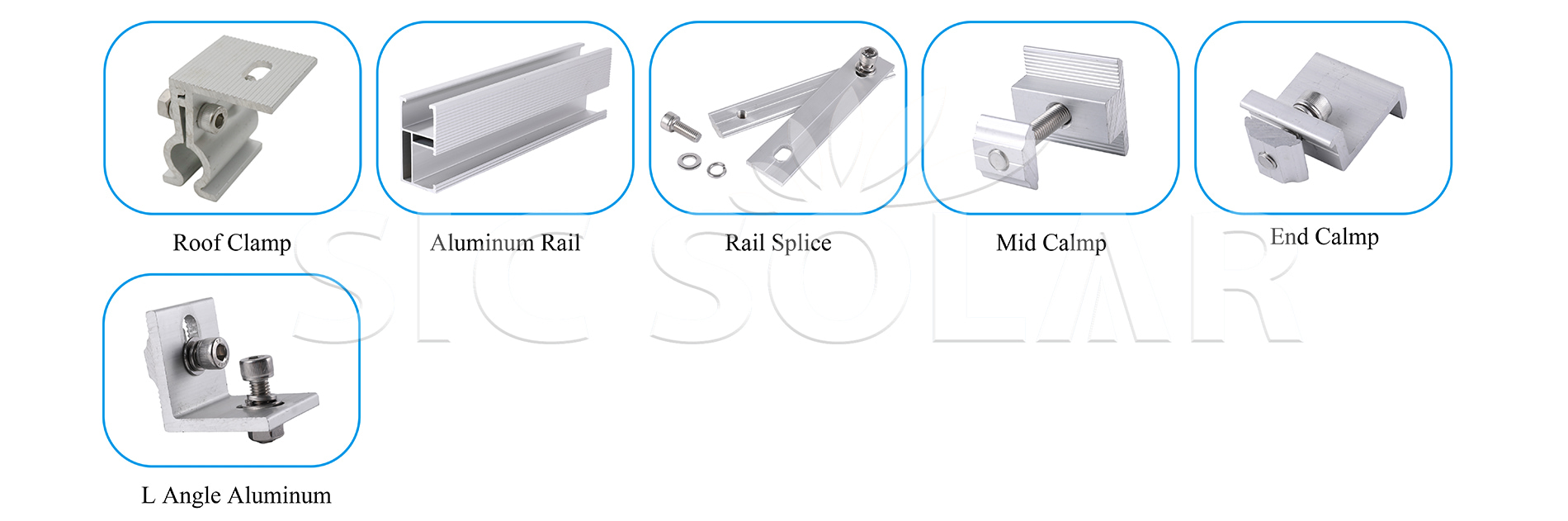

Components Project Technical Details Installation Guide Package Advantage FAQ

Click here to learn more product

solar roof mounting installation

solar roof mounting system

Solar Clamp Size

Installation Site	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M²
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Check the Roof – Identify the roof type and plan the panel layout.

2️⃣ Install Clamps or Brackets – Fit the suitable mounting components to the metal roof.

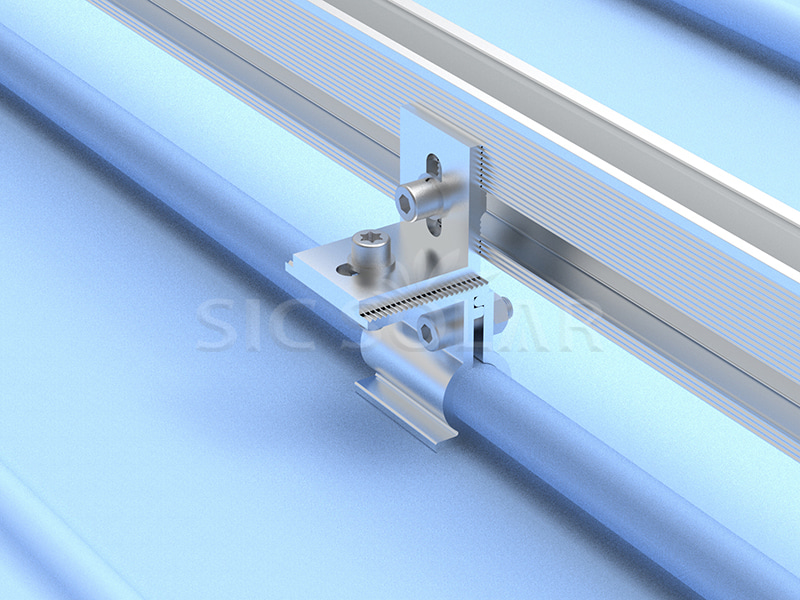

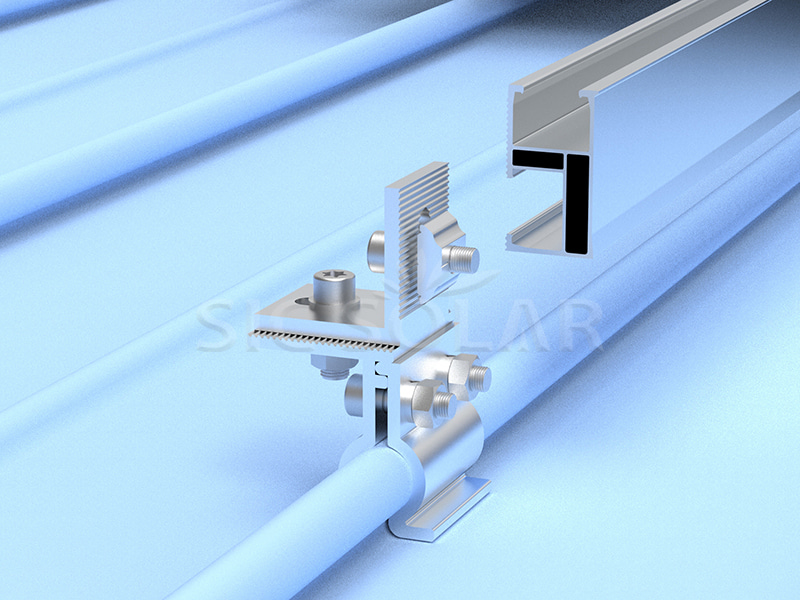

3️⃣ Install the Rails – Attach the aluminum rails to the clamps or brackets.

4️⃣ Adjust the Rails – Set the rail spacing to keep the panels properly aligned.

5️⃣ Secure the Panels – Place the panels on the rails and fix them with mid and end clamps.

6️⃣ Tighten All Connections – Check that all bolts and fasteners are properly tightened.

7️⃣ Final Inspection – Check the overall stability, panel alignment, and roof waterproofing.

Solar bracket package

☆ Designed for Metal Roofs: Can be configured for different compatible metal roof profiles.

☆ Flexible Installation: Supports different panel sizes, orientations, and array layouts.

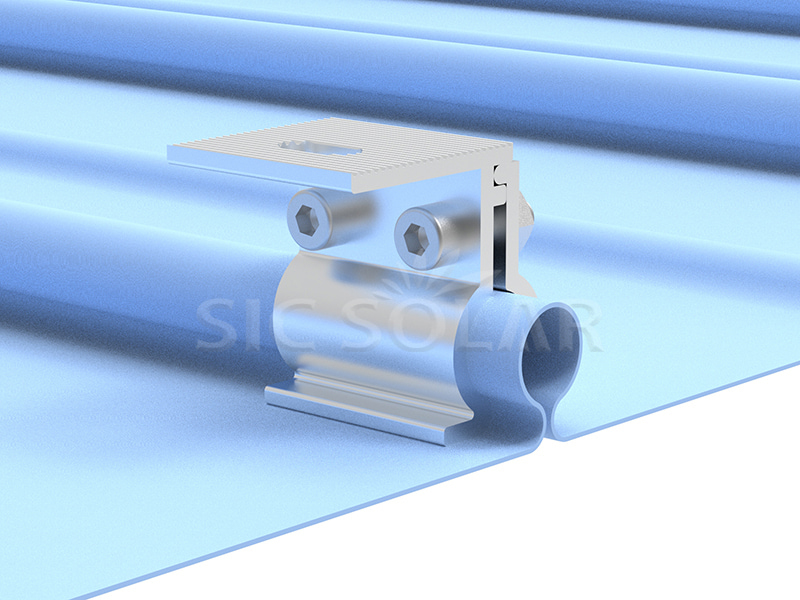

☆ Roof-Friendly Design: Standing seam clamps can be installed without drilling into the metal roof sheet.

☆ Sturdy and Stable: Provides reliable panel support and good resistance to wind loads.

☆ Corrosion-Resistant: Quality materials and surface treatment help ensure long-term durability.

☆ Quick Installation: Pre-assembled components help save installation time and labor.

Q1: Can rubber pads be included?

Yes. Rubber or EPDM components can be included according to the roof type and project requirements.

Q2: Can the screws be customized?

Yes. Screw type, size, and material can be customized based on the installation requirements.

Q3: What materials are available for the metal roof clamps?

We offer AL6005-T5 aluminum and SUS304 stainless steel options.

Q4: What delivery options do you offer?

For formal orders, we usually offer EXW, FOB, CIF, DDU, and other shipping terms. For samples, we can arrange delivery through TNT, DHL, FedEx, or similar express services.

Q5: Where are the goods shipped from?

Our products are shipped directly from Xiamen, China.

Q6: Is there an MOQ for the clamps?

There is no strict MOQ. Sample orders are also welcome.

Q7: Do you have a warehouse in the EU?

Not at the moment. Our products are currently shipped directly from China.

Q8: Can this clamp be used on my trapezoidal metal roof?

Please send us the specifications or profile dimensions of your trapezoidal roof sheet. Our technical team can check compatibility and recommend a suitable solution.
