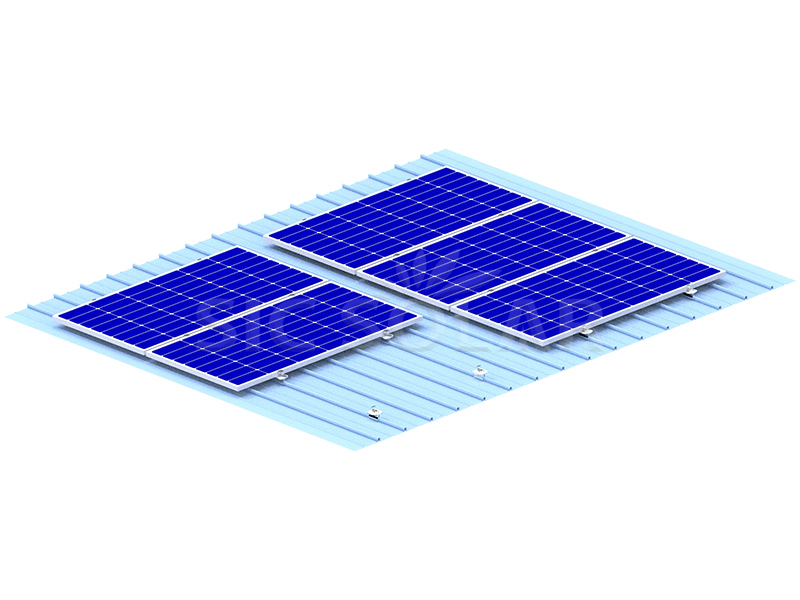

Iron Roof Solar Mounting System

Click here to learn more product

1️⃣ Choose the Right Roof Attachments
Select the appropriate clamps or brackets according to the metal roof profile, such as corrugated, trapezoidal, or standing seam roofs.

2️⃣ Install the Roof Attachments
Position the clamps or brackets at the specified locations and secure them to the roof structure or standing seams as required.

3️⃣ Install the Rails
Attach the aluminum mounting rails to the roof attachments using the appropriate stainless steel fasteners. Check the rail alignment before fully tightening the connections.

4️⃣ Install the Solar Panels

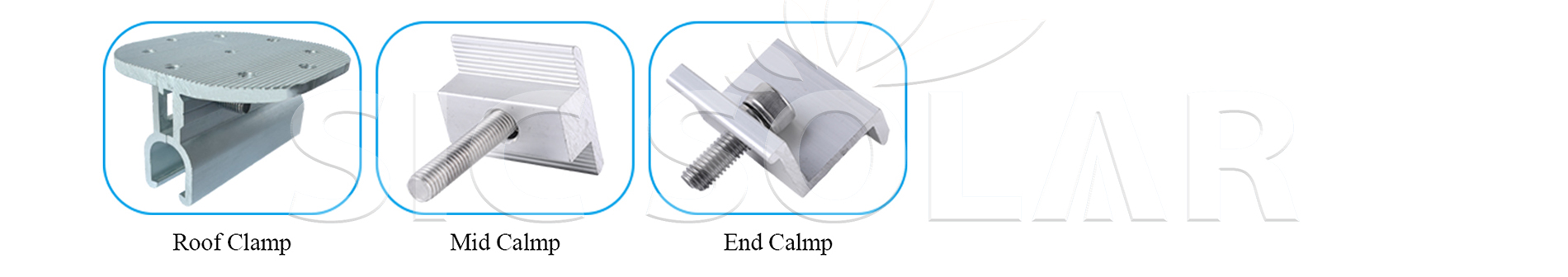

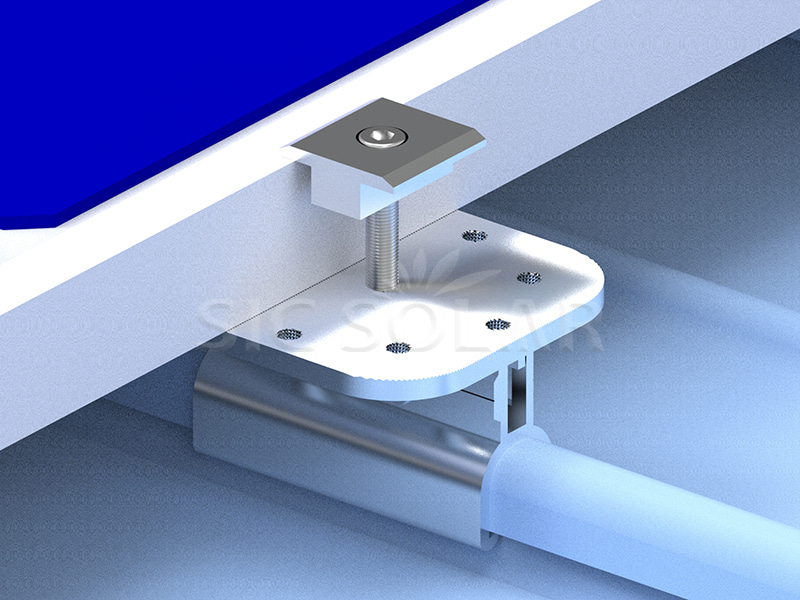

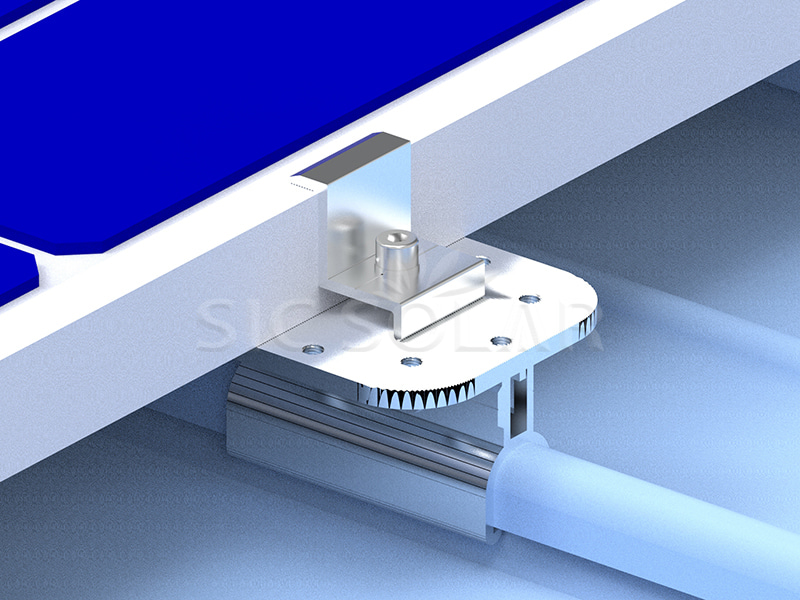

Place the solar panels on the rails and secure them with compatible mid clamps and end clamps.

5️⃣ Complete the Grounding Connection
Ensure electrical continuity between the mounting components and connect the system to the grounding network using a suitable grounding lug or grounding jumper.

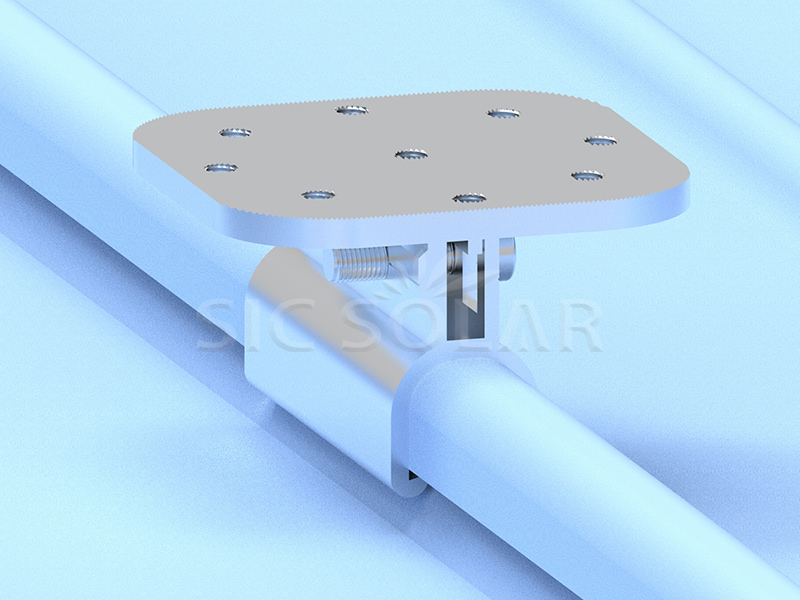

☆ Roof-Friendly Design: Non-penetrating standing seam clamps can be installed without drilling through the metal roof sheet.

☆ Durable Construction: Aluminum alloy and stainless steel components provide reliable performance for long-term outdoor use.

☆ Corrosion Resistant: The selected materials and surface treatment offer good resistance to rain, humidity, and other outdoor conditions.

☆ Easy Installation: Pre-assembled components can reduce on-site preparation and make installation more efficient.

☆ Wide Compatibility: Different clamp and bracket options are available for various metal roof profiles.

☆ Low Maintenance: Durable materials and a straightforward mounting structure help reduce routine maintenance requirements.

Q1. Can rubber pads or rubber inserts be included?
Yes. Rubber components can be provided according to the roof type and project requirements.

Q2. Can the screws be customized?
Yes. Screw specifications, dimensions, and materials can be customized based on the application.

Q3. What materials are available for the metal roof clamps?
The main options are AL6005-T5 aluminum alloy and SUS304 stainless steel.

Q4. What delivery options do you offer?
For formal orders, we generally offer EXW, FOB, CIF, DDU, and other shipping terms depending on the order and destination. For samples, express services such as DHL, FedEx, and TNT are available.

Q5. Where are the products shipped from?
Our products are shipped directly from Xiamen, China.

Q6. Is there an MOQ for the clamps?
There is no fixed MOQ. Sample orders are also welcome.

Q7. Do you have a warehouse in the EU?
Currently, we do not have an EU warehouse. Products are shipped directly from our facility in China.

Q8. Can the clamp be used on a trapezoidal metal roof?
It may be suitable depending on the roof profile and dimensions. Please provide the trapezoidal roof sheet specifications, including the profile, sheet thickness, and relevant dimensions, and our technical team can help check compatibility.
