Mounting Solar On Metal Roof

Click here to learn more product

1️⃣ Evaluate Roof Type – Determine whether your metal roof is standing seam, corrugated, or trapezoidal.

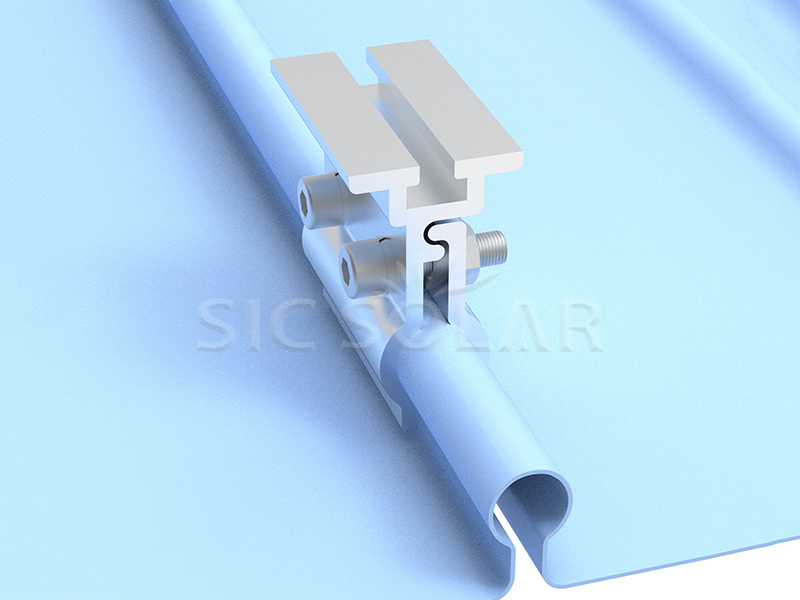

2️⃣ Select Mounting System – Choose seam clamps for standing seam roofs and trapezoidal brackets/hanger bolts for corrugated and ribbed roofs.

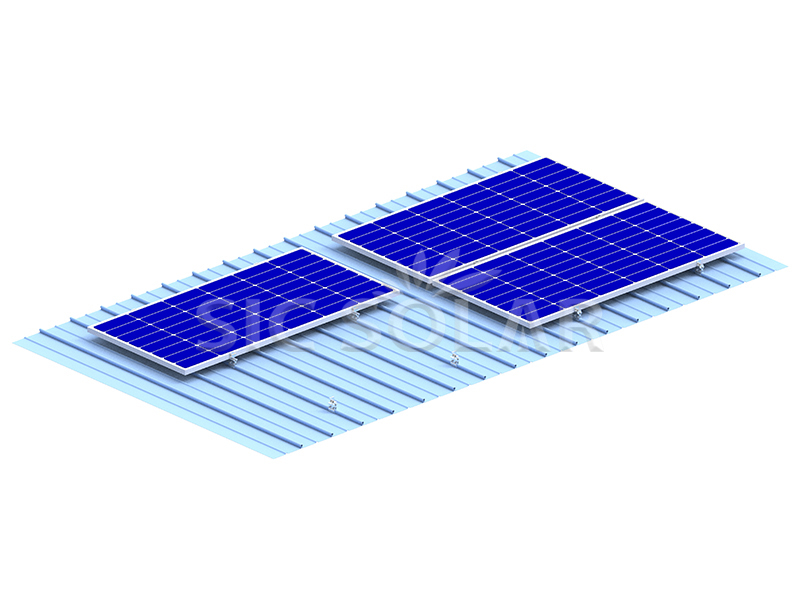

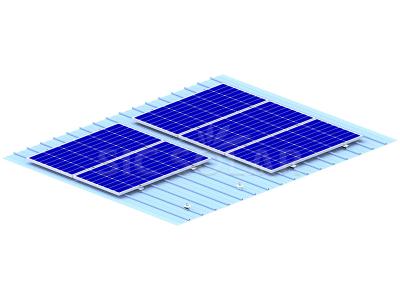

3️⃣ Mark Mounting Points – Plan the panel layout and mark the connection locations to align with the roof beams.

4️⃣ Install Clamps or Brackets – Securely fasten the mounting hardware to the roof seams or panel ribs and tighten to the recommended torque.

5️⃣ Install Rails – Align and secure the aluminum rails to the clamps or brackets, ensuring proper spacing and level positioning.

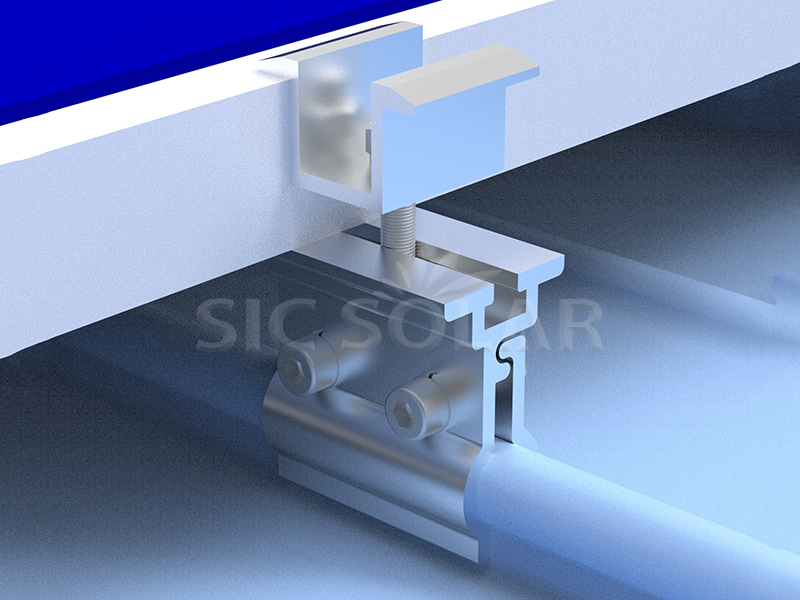

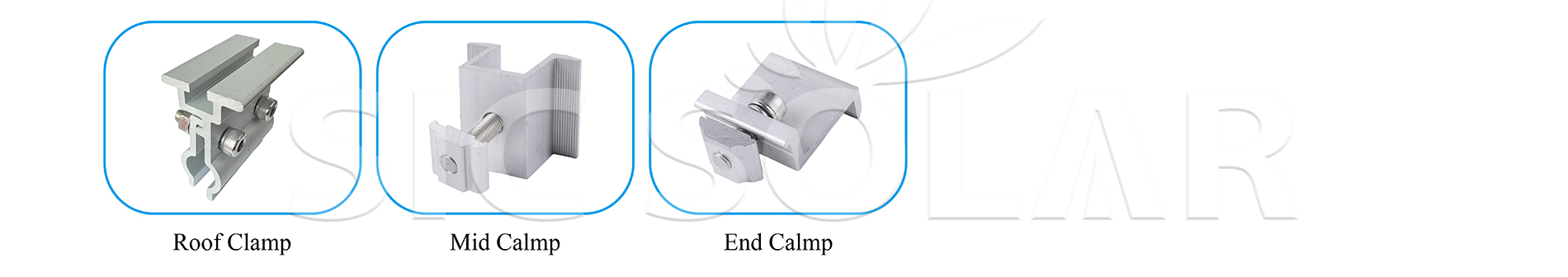

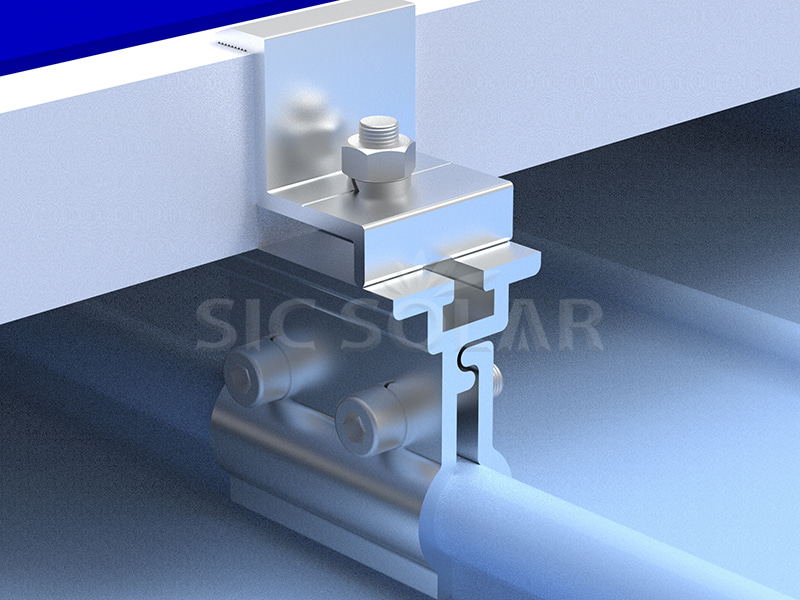

6️⃣ Install Solar Panels – Place the panels on the rails and secure with the center and end clamps.

7️⃣ Final Inspection – Verify the torque value, watertight seal, and overall stability before starting the system.

Advantages as follow:
☆ Standing seam roof clamps will not damage the metal  roof sheet.

☆ High Durability – Best Aluminum profile AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆High Pre-assembly – Save labor cost at the installation site

Related Certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
