Solar Panel Mounting Brackets For Metal Roof

Click here to learn more product

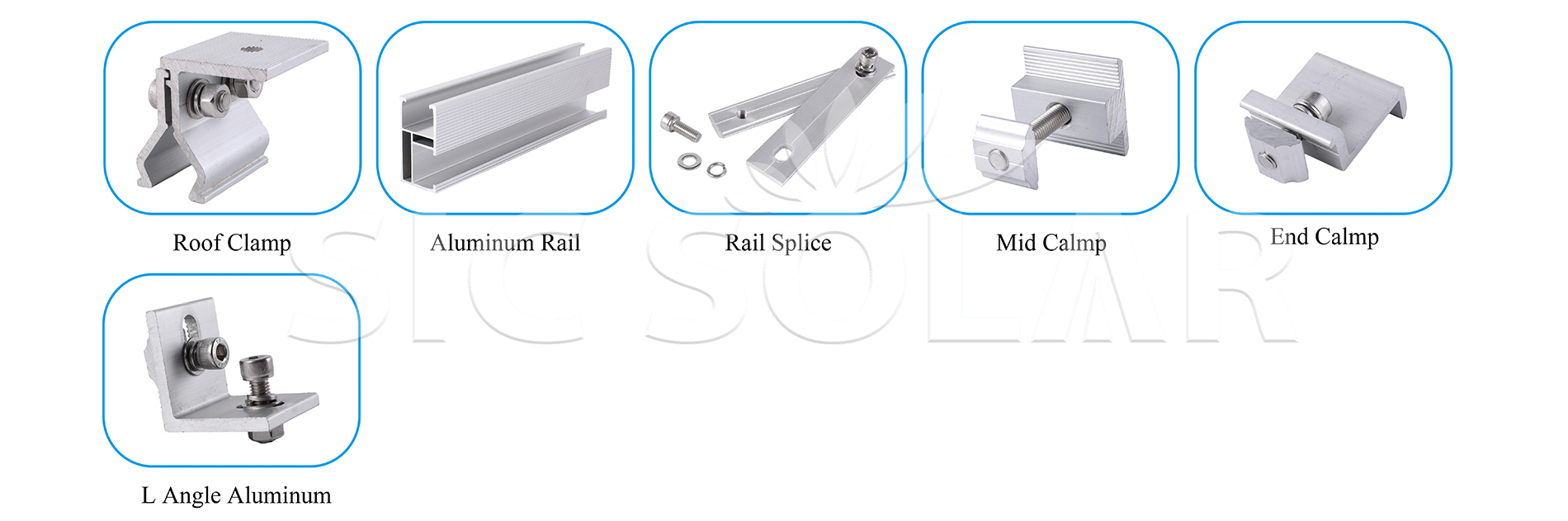

1️⃣ Determine roof type – Choose the correct bracket model for your standing seam, trapezoidal, or corrugated roof.

2️⃣ Mark fixing points – Measure and mark the mounting locations on the roof decking.

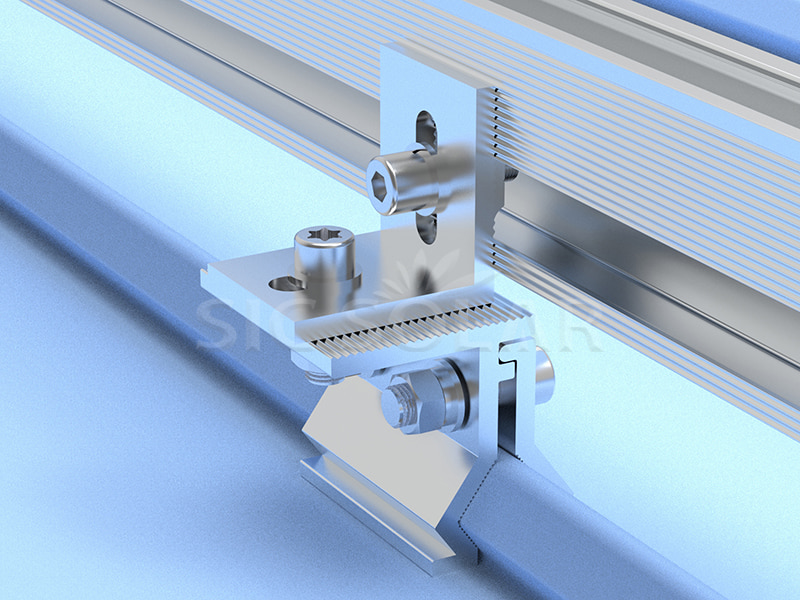

3️⃣ Mount brackets – Secure the brackets directly to the roof using screws or seam clamps.

4️⃣ Seal joints – Use waterproof gaskets or sealing washers to prevent leaks.

5️⃣ Install aluminum rails – Secure the rails to the installed brackets.

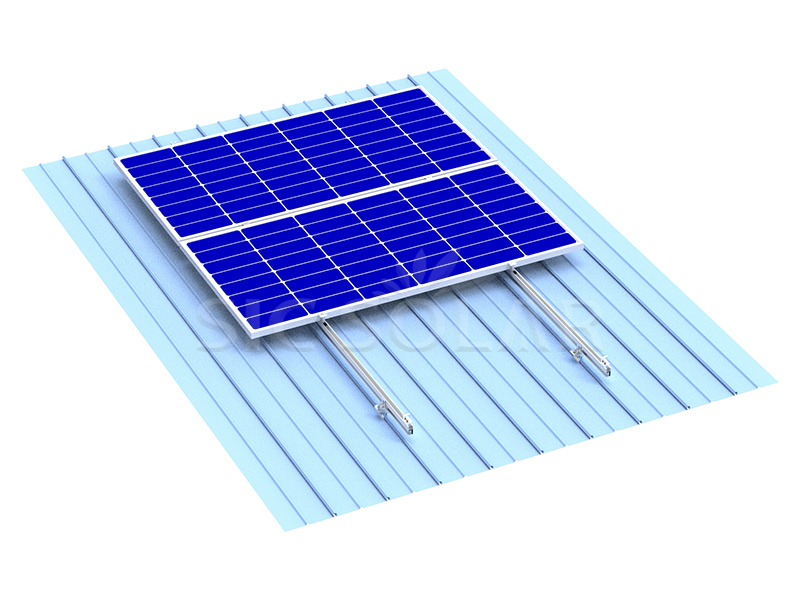

6️⃣ Position solar panels – Place the PV modules on the rails.

7️⃣ Secure with clamps – Use middle and end clamps to securely lock the panels in place.

Advantages as follow:

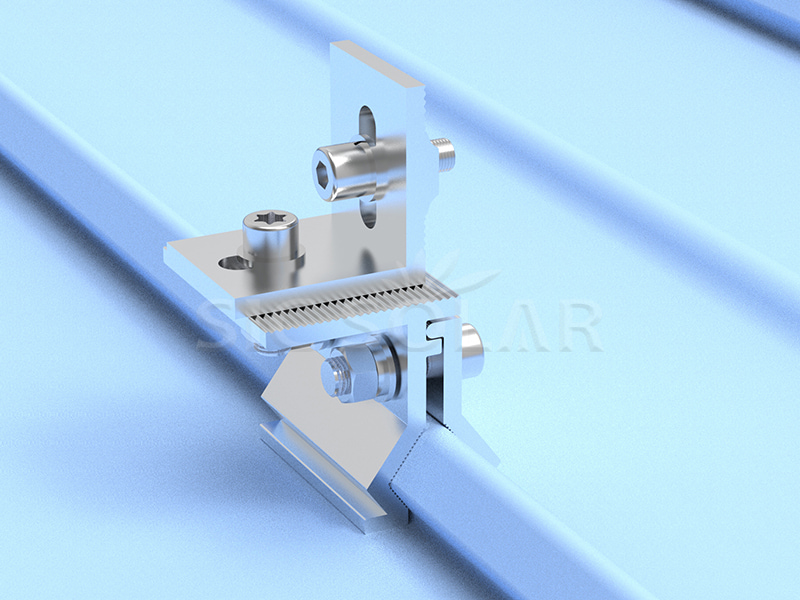

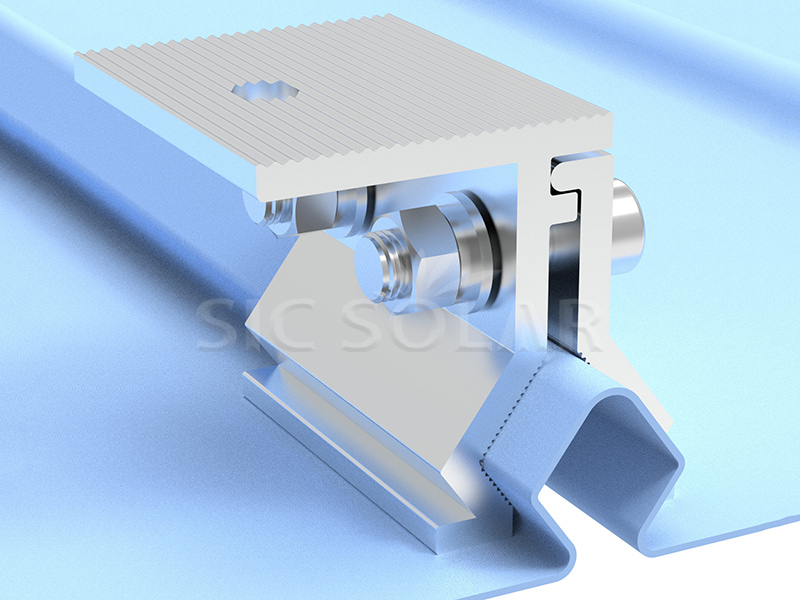

☆ Standing seam roof clamps will not damage the metal  roof sheet.

☆ High Durability – Best Aluminum profile AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆High Pre-assembly – Save labor cost at the installation site

Related Certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
