Metal Roof Solar Mounting Systems

Click here to learn more product

1️⃣ Check the Roof
Identify the roof profile and condition, then select the appropriate mounting components for the project.

2️⃣ Install the Roof Attachments
Position the suitable clamps or brackets at the required fixing points. For compatible standing seam roofs, no-drill clamps can be used.

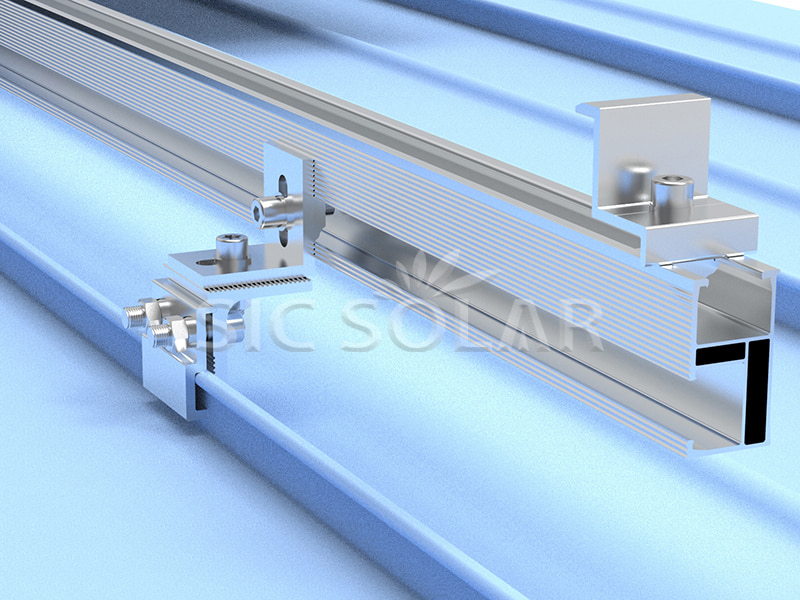

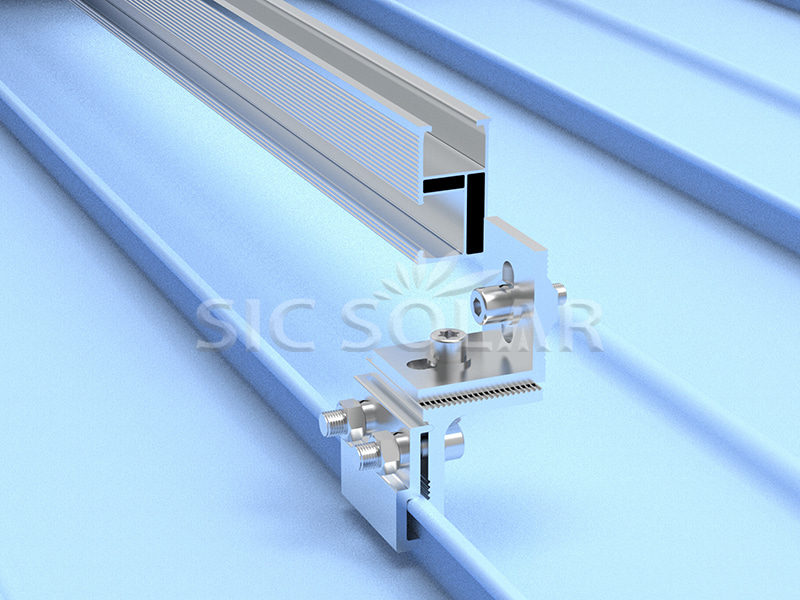

3️⃣ Attach the Rails
Connect the aluminum mounting rails to the roof attachments. Use rail connectors where additional rail length is required, and check the alignment before tightening.

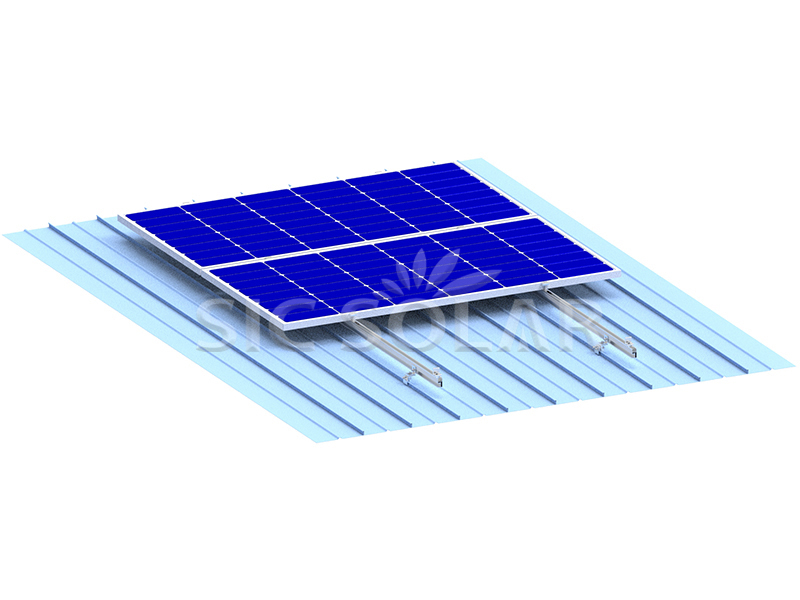

4️⃣ Install the Solar Panels
Place the panels on the rails and secure them with compatible mid clamps and end clamps.

5️⃣ Inspect the System
Check the panel alignment, fasteners, rail connections, and grounding to make sure the system is properly installed before operation.

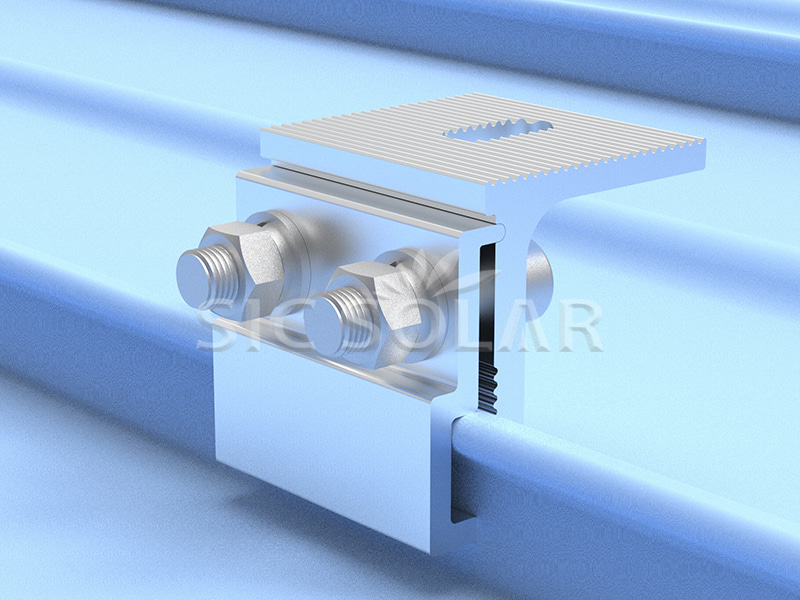

☆ Roof-Friendly: Non-penetrating standing seam clamps can attach to compatible seams without drilling through the metal roof.

☆ Strong and Reliable: Provides stable support for solar panels and is designed to handle normal structural and wind loads when properly engineered.

☆ Corrosion Resistant: Aluminum alloy and stainless steel components offer good resistance to outdoor weather conditions.

☆ Easy Installation: Pre-assembled components can reduce preparation work and make installation more efficient.

☆ Flexible Application: Suitable mounting options are available for standing seam, trapezoidal, corrugated, and other compatible metal roof profiles.

☆ Lightweight Structure: Aluminum components help keep the overall mounting weight relatively low while providing stable support for the solar array.

Q1: Can rubber pads be included?

Yes. Rubber or EPDM components can be included according to the roof type and project requirements.

Q2: Can the screws be customized?

Yes. Screw type, size, and material can be customized based on the installation requirements.

Q3: What materials are available for the metal roof clamps?

We offer AL6005-T5 aluminum and SUS304 stainless steel options.

Q4: What delivery options do you offer?

For formal orders, we usually offer EXW, FOB, CIF, DDU, and other shipping terms. For samples, we can arrange delivery through TNT, DHL, FedEx, or similar express services.

Q5: Where are the goods shipped from?

Our products are shipped directly from Xiamen, China.

Q6: Is there an MOQ for the clamps?

There is no strict MOQ. Sample orders are also welcome.

Q7: Do you have a warehouse in the EU?

Not at the moment. Our products are currently shipped directly from China.

Q8: Can this clamp be used on my trapezoidal metal roof?

Please send us the specifications or profile dimensions of your trapezoidal roof sheet. Our technical team can check compatibility and recommend a suitable solution.
