Home Products Pitched Roof Mounting Tile roof Asbestos tile roof Pitched Roof Tile Hook

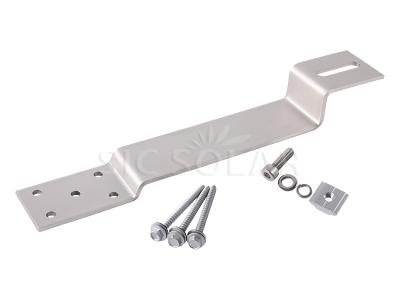

Fixed tile roof hook
Fixed tile roof hook
Fixed tile roof hook

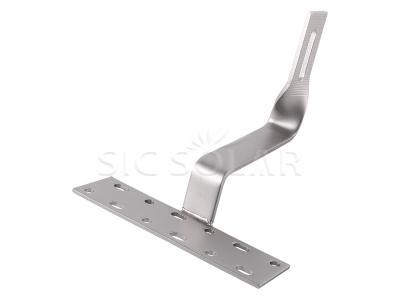

Pitched Roof Tile Hook

Pitched Roof Tile Hook are a key component of the solar mounting system used to install solar panels on sloped tile roofs. These hooks are specially designed to secure the solar mounting rails to the roof structure without damaging the tiles or affecting the waterproofing of the roof.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-TH-07

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Tile ceramic roof

  • Color:

    Natural or Customized

  • Material:

    Stainless Steel 304

  • Warranty:

    10 years and 25 years

  • Surface:

    Stainless steel

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now



Solar Tile Roof Hook Tile Roof

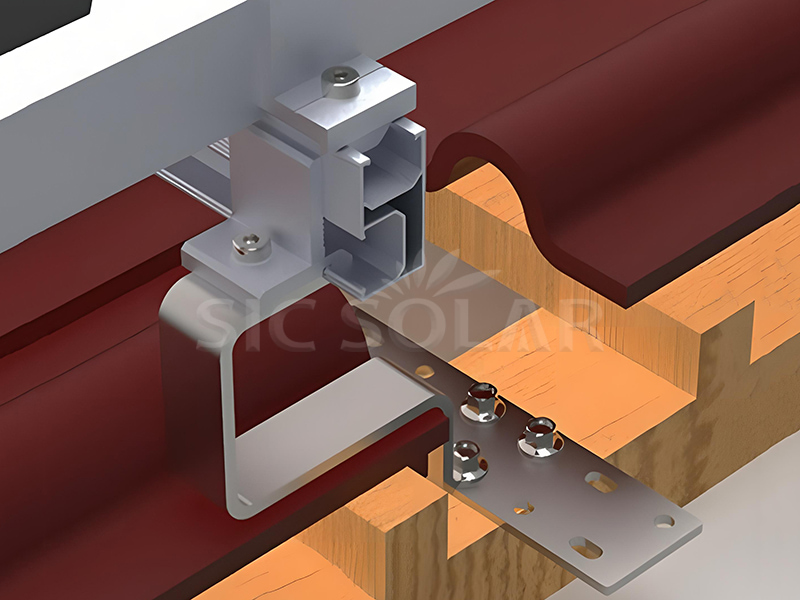

Pitched Roof Tile Hook are essential components for mounting solar panel systems on sloped tile roofs. They provide a secure connection between the roof structure and the mounting rails that hold the solar panels.

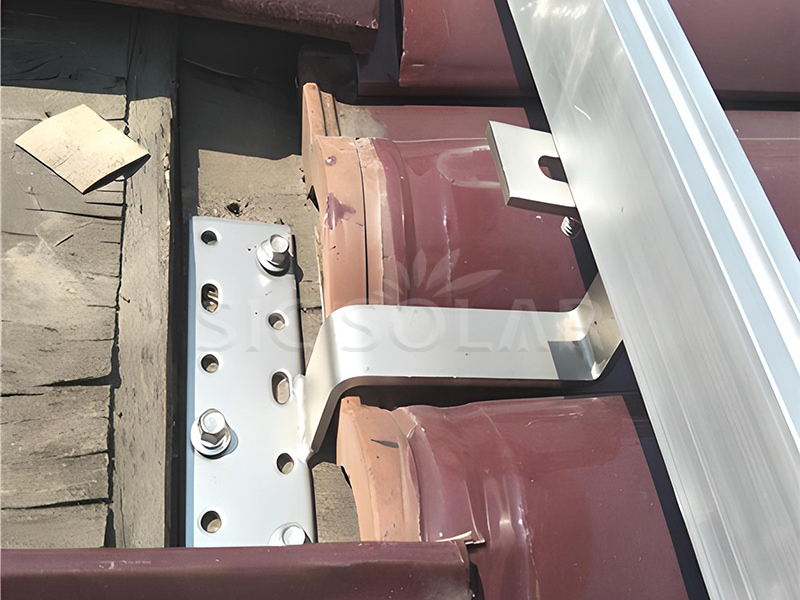

Roof Solar Tile Roof Hook

Pitched Roof Tile Hook come in a variety of shapes and sizes to accommodate different types of roof tiles and roof slopes. They are often adjustable to allow for a custom fit to a specific roof profile.

Components Video Technical Details Installation Guide Package Advantage

Click here to learn more hooks

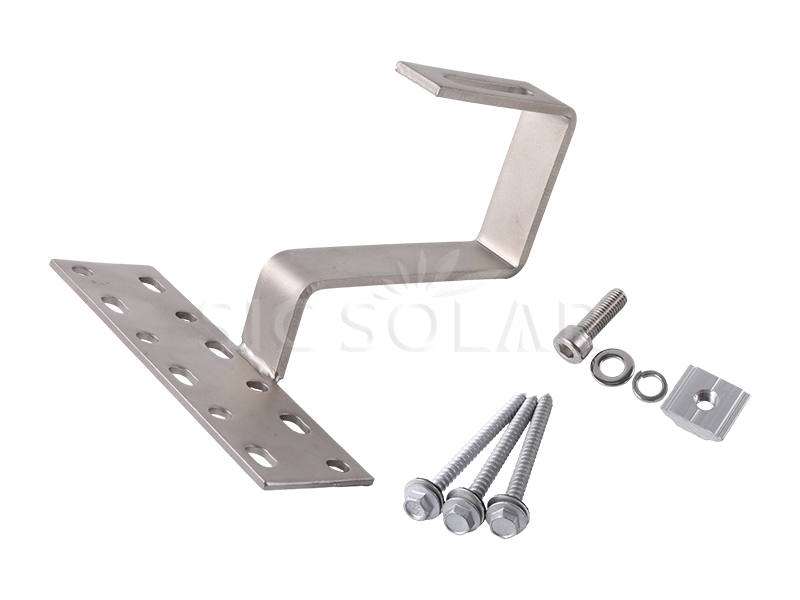

solar tile hook

Pv Tile Roof Hook

Name Pitched Roof Tile Hook
Installation Site Tile roof
Wind Load <60M/S
Snow Load <1.4KN/M2
Material Stainless Steel 304
Color Natural or Customized
Anticorrosive Stainless steel
Warranty 10 years and 25 years service time

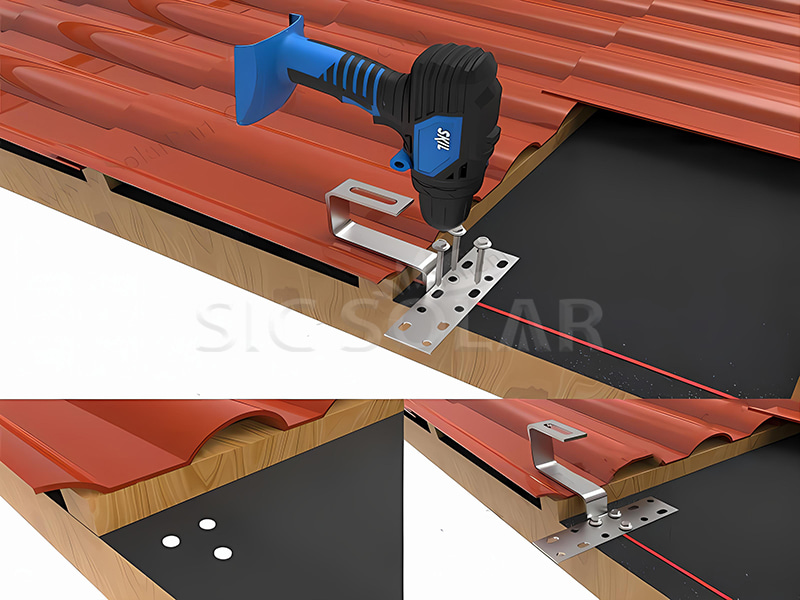

1️⃣ Removing Tiles – Carefully lift the shingle where the hook is to be installed.

2️⃣ Placing the Hook – Place the roof hook on the rafter and adjust its height as needed.

3️⃣ Securing the Hook – Attach the hook to the rafter using stainless steel wood screws.

4️⃣ Adjusting the Tiles – Place the shingle back in place, ensuring it is properly positioned and without excessive stress.

5️⃣ Rail Attachment – ​​Attach the solar aluminum rail to the installed hook using the rail bolts.

6️⃣ Panel Mounting – Attach the solar panel to the rail using the mid- and end-clamps.

7️⃣ Final Check – Check all connections to ensure the installation is secure and stable.

Solar bracket package

Advantages as follow:
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site



Hot Tags : Roof tile hooks Solar ceramic roof hooks Solar panel roof hooks Solar roof tile hooks Ceramic roof tile hooks Solar panel roof tile hooks solar tile hook Solar tile roof hook
