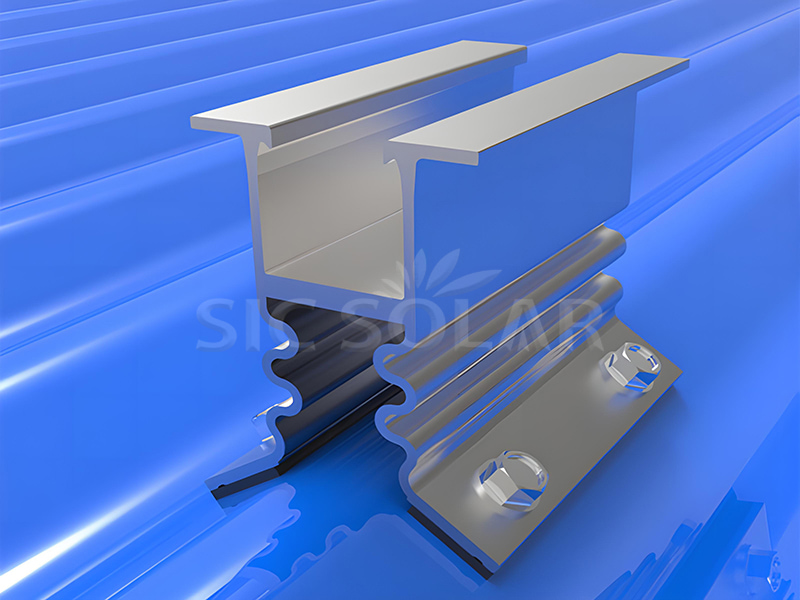

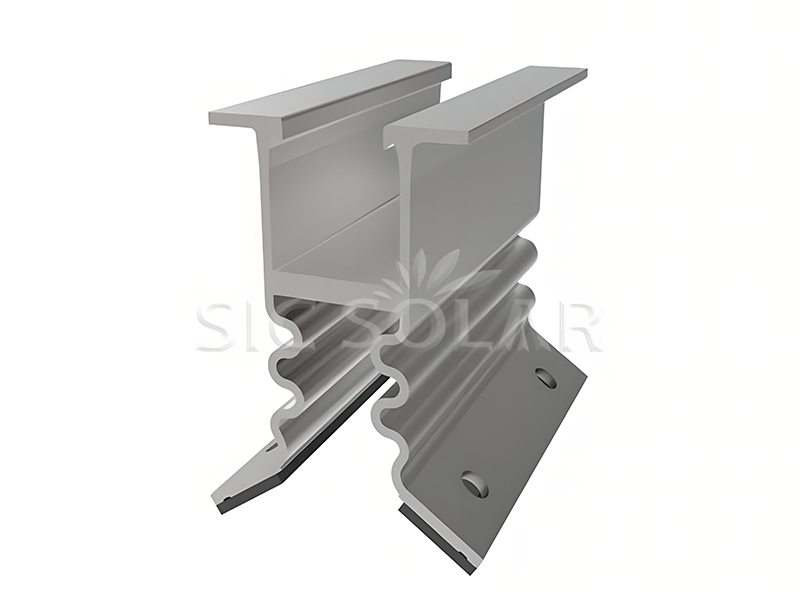

Clamps for PV Module on Metal Roof for Solar System

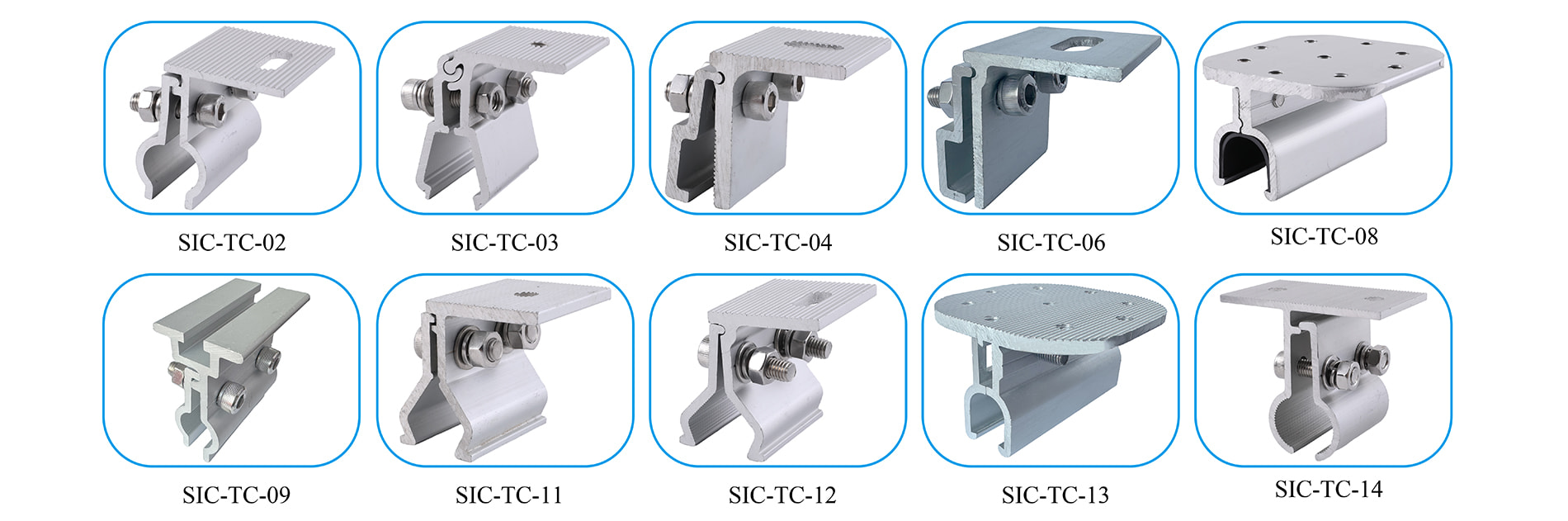

Click here to learn more metal roof holders

1️⃣ Identify your roof type—whether it’s vertical, stepped, or corrugated.

2️⃣ Place the clamps on the roof’s joints or ribs.

3️⃣ Secure the clamps using bolts without drilling into the roof.

4️⃣ Attach the aluminum mounting rails to the clamps.

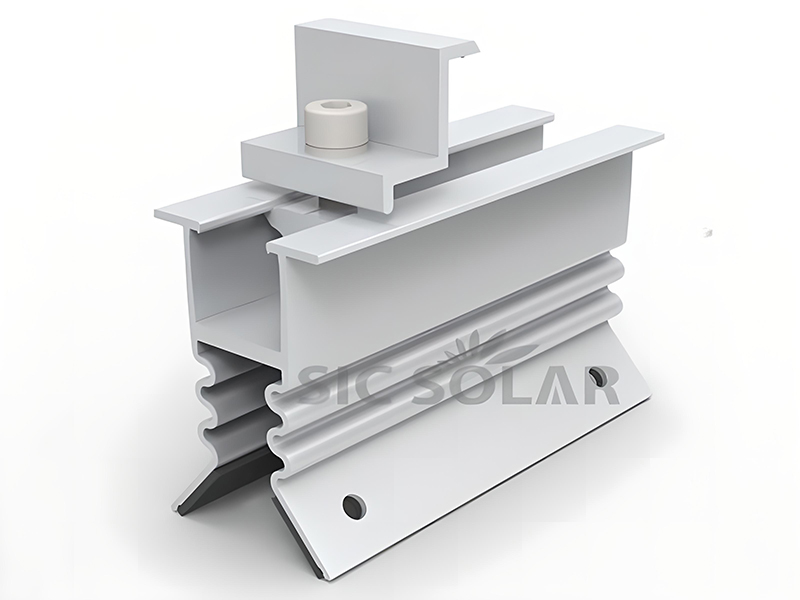

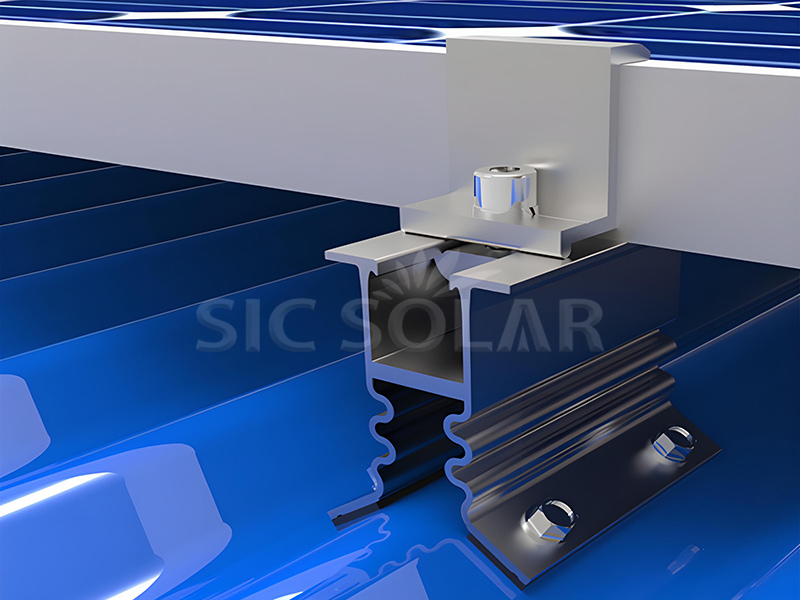

5️⃣ Mount the solar panels using the middle and end clamps.

6️⃣ Make final adjustments by checking the alignment and tightening all bolts.

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

☆ Installation doesn’t disturb the roof covering.

☆ Assembly is quick and doesn’t require finding the roof beams.

☆ The product is durable with a 10-year warranty and an expected service life of 25 years.

Related Certificate:

☆ Strength analysis reports are available to verify the mounts meet specific wind and snow load requirements.

Q1. Can it include rubber?

Yes.

Q2. Can the screws be customized?

Yes.

Q3. What’s the material of tin roof clamps?

We have 2 material, AL 6005-T5 and SUS304.

Q4: What delivery option you offer?

Usually, for formal order, we provide EXW, FOB, CIF, DDU etc.

For sample order, we provide TNT, DHL, FEDEX etc.

Q5: Where is the cargo shipped from?

Currently our goods are shipped directly from Xiamen China.

Q6: Does the clamp has MOQ limited?

There is no MOQ limited, one sample order is ok.

Q7: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.

Q8: Can this clamp be used on my trapezoid roof?

Pls offer your trapezoidal roof sheet specs for us, our technical staff will help you check on it.
