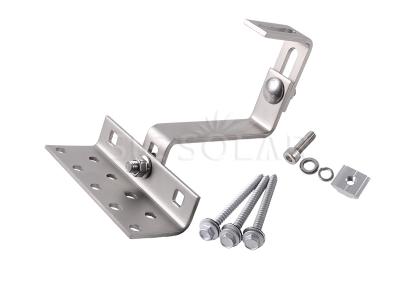

Double Adjustable A2 Solar Roof Hook

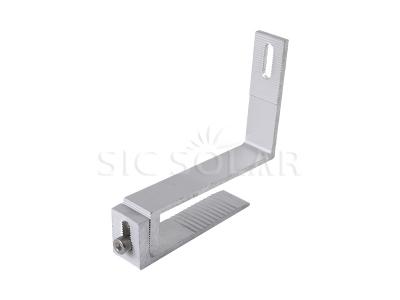

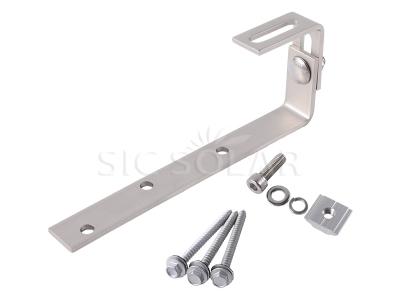

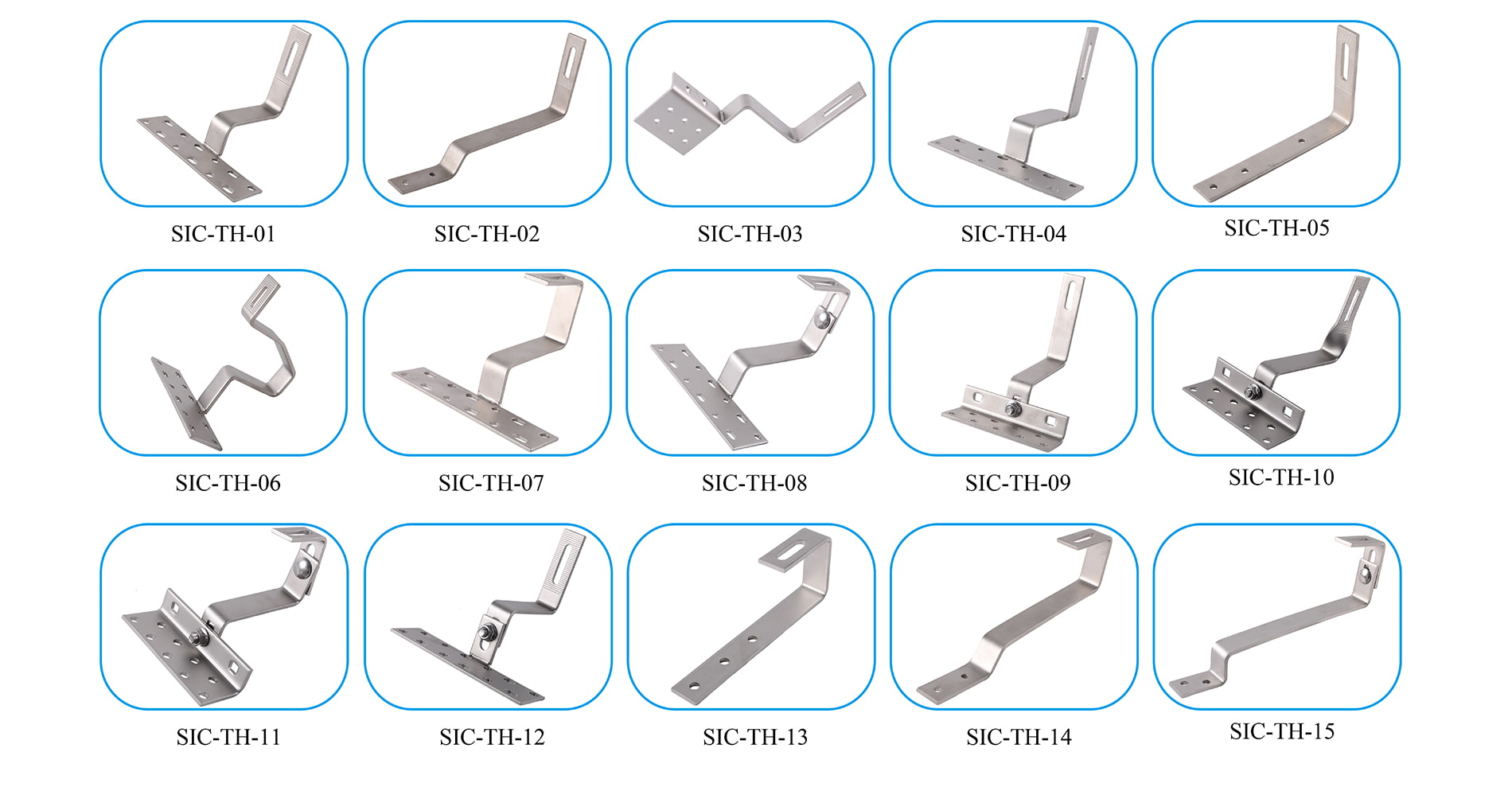

Click here to learn more hooks

1️⃣ Check the Roof Structure：Before starting, check the roof type, tile layout, rafter positions, and planned solar panel arrangement.

2️⃣ Access the Fixing Point：Carefully lift or temporarily remove the relevant roof tile to access the rafter or other structural support underneath.

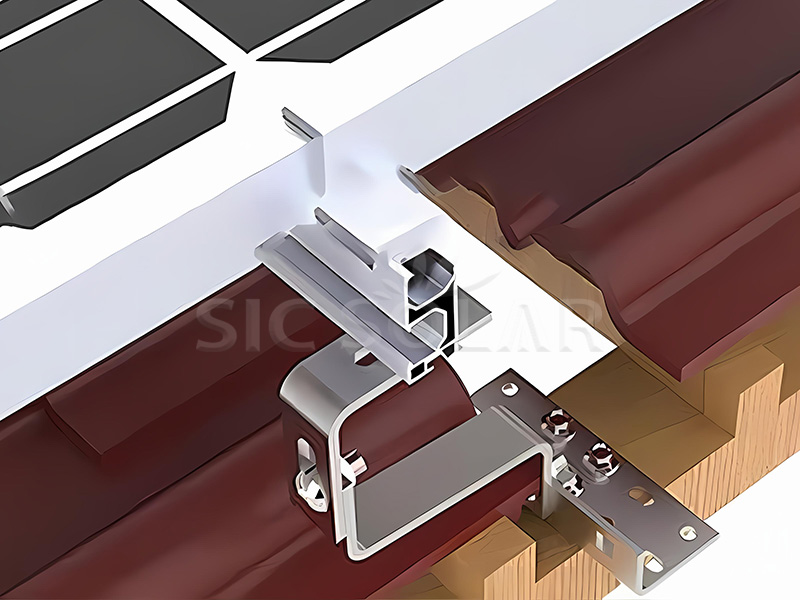

3️⃣ Position the Roof Hook：Place the Double Adjustable A2 Solar Roof Hook over the appropriate rafter or structural member. Make sure the base sits securely on the supporting structure.

4️⃣ Secure the Base：Fasten the hook to the structural support using the specified stainless steel screws or bolts. Make sure the connection is secure before making further adjustments.

5️⃣ Adjust the Hook：Use the two adjustment points to set the required height and position. Align the hook with the planned position of the solar mounting rail.

6️⃣ Check Tile Clearance：Place the roof tile back into position and check that it fits properly around the hook. The tile should not be forced against the hook or placed under excessive pressure.

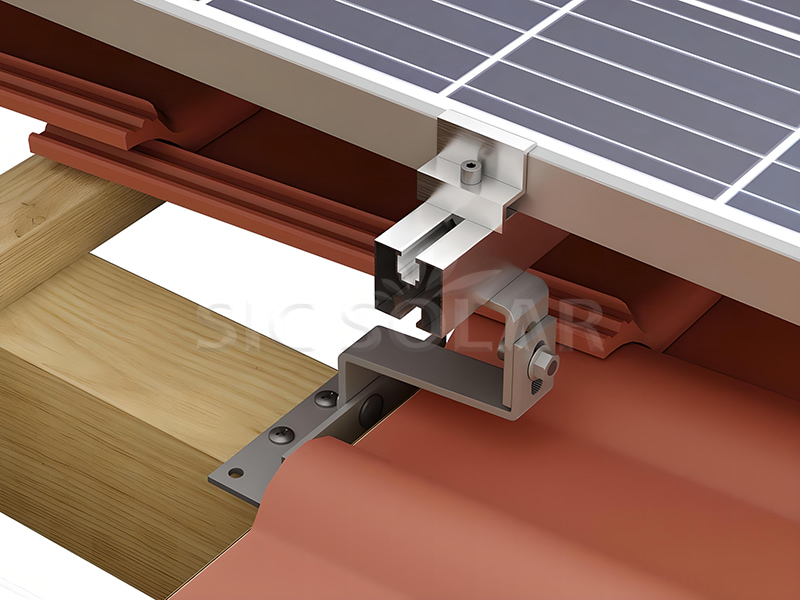

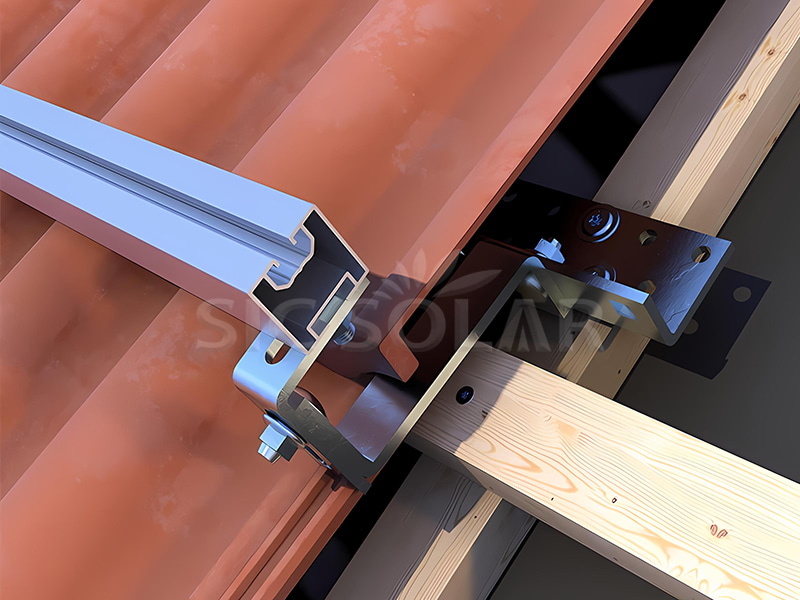

7️⃣ Install the Solar Rail：Attach the aluminum mounting rail to the roof hook. Adjust the rail position and alignment before fully tightening the fasteners.

8️⃣ Install the Solar Panels：Mount the PV modules using compatible mid clamps and end clamps. Check the panel alignment and all fastened connections before completing the installation.

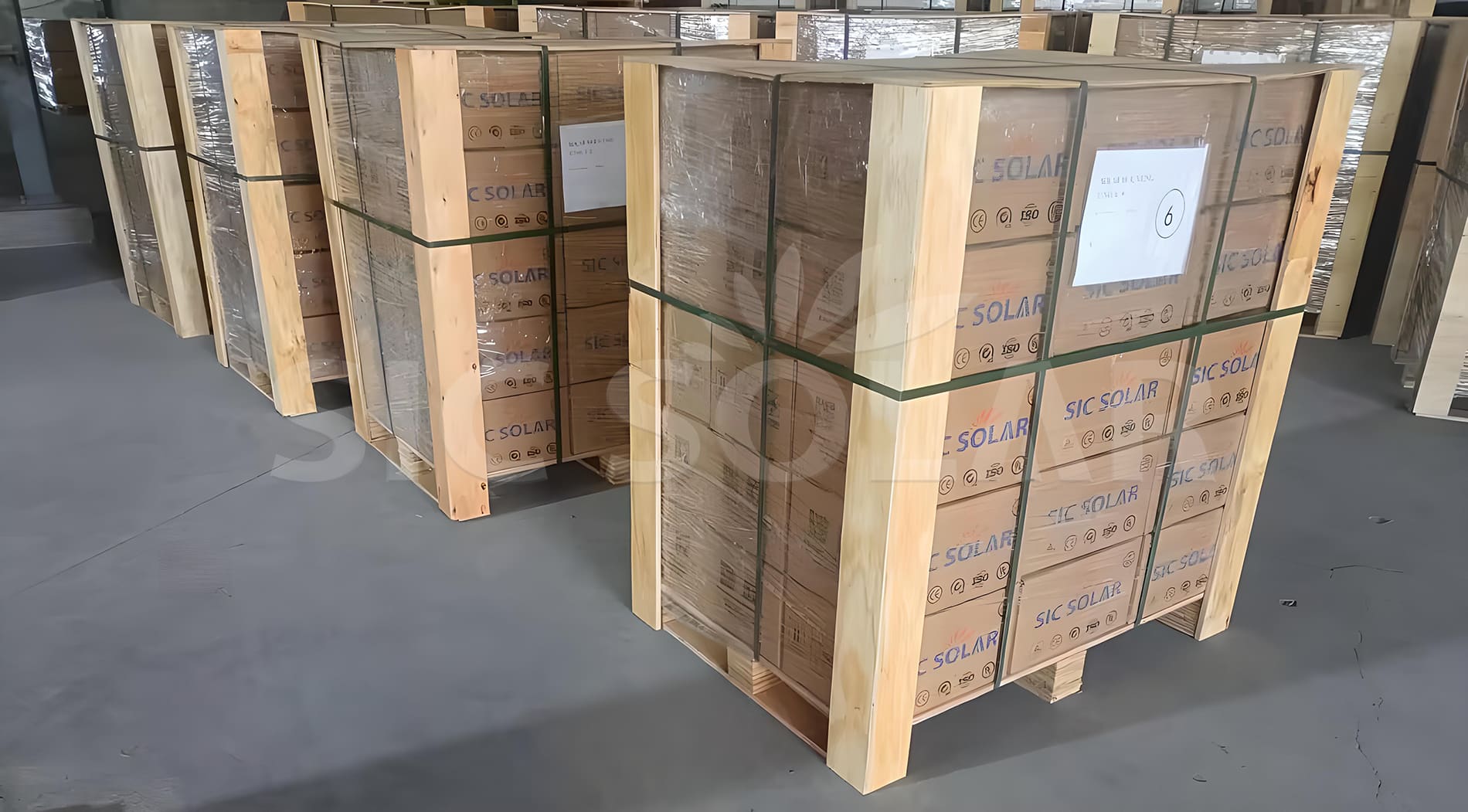

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

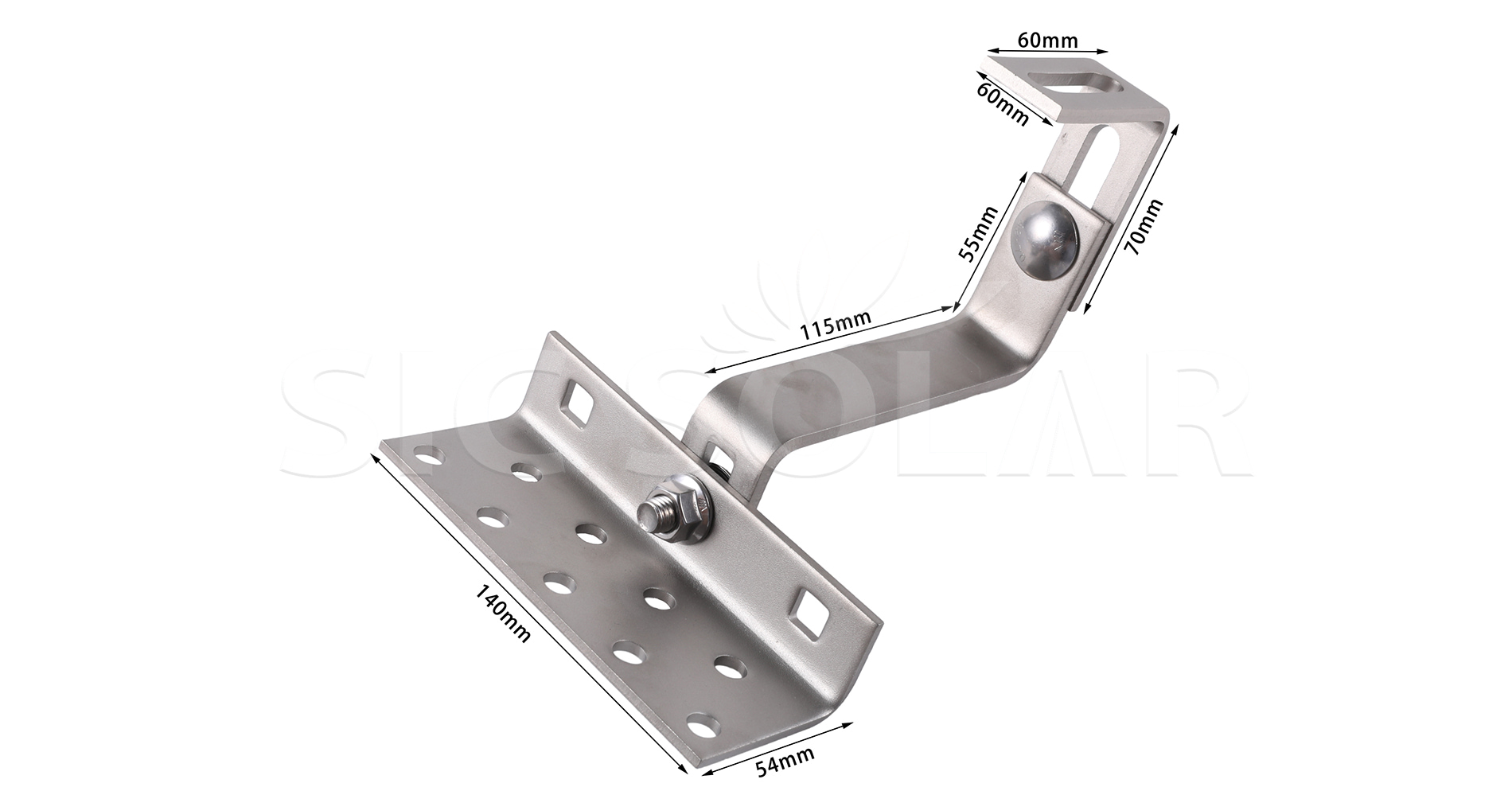

☆ Height can be changed (39mm, from 130mm to 169mm)

☆ Strong and Lasting: Made of good stainless steel 304, so it comes with a 10-year warranty and should last 25 years.

☆ Mostly Assembled: This saves you work when you put it together.

☆ Easy Alignment: Adjustment features help installers achieve accurate rail positioning.

☆ Strong Connection: Provides a secure fixing point between the roof structure and solar mounting rail.

☆ Wide Roof Compatibility: Suitable for various pitched and tiled roof configurations.

Related Certificate

☆ Our CE Certificate for solar tile hook roof mount system

☆ Our SGS Certificate for hook material -- SUS304

☆ Our SGS Certificate for screw material -- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

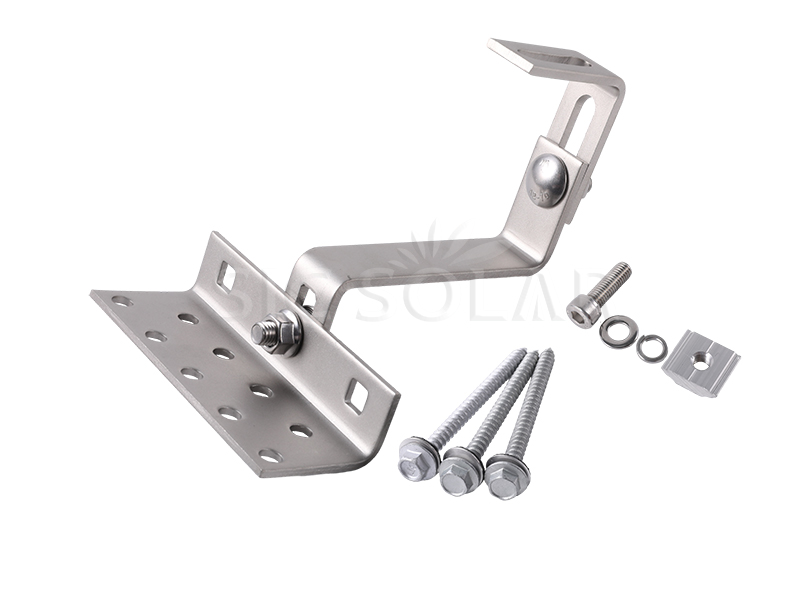

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
