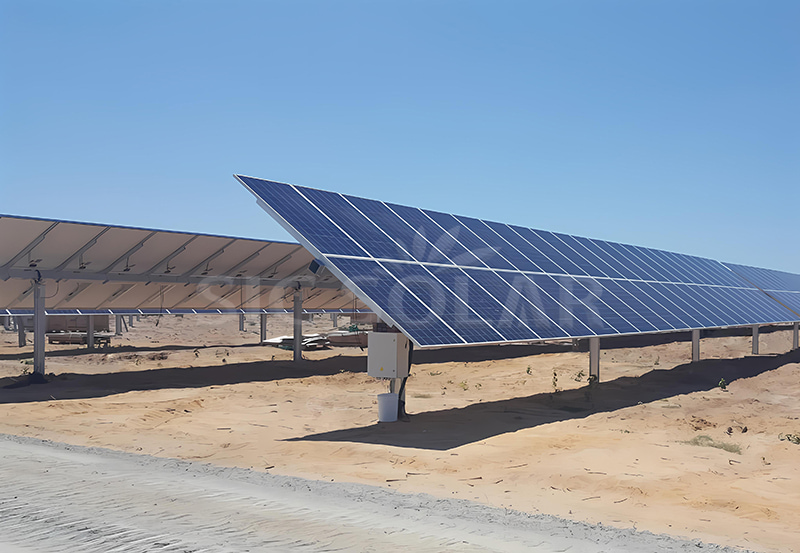

Ground Mounting Solar Panel Tracker

Click here to learn more Ground Mounting System

1️⃣ Site Assessment & Layout

Survey topography, solar availability, and soils; design row spacing to avoid inter-row shading.

2️⃣ Foundation Engineering

Install concrete stakes or anchor screws as per geotechnical specifications; ensure horizontal alignment within ±10 mm for the entire row length.

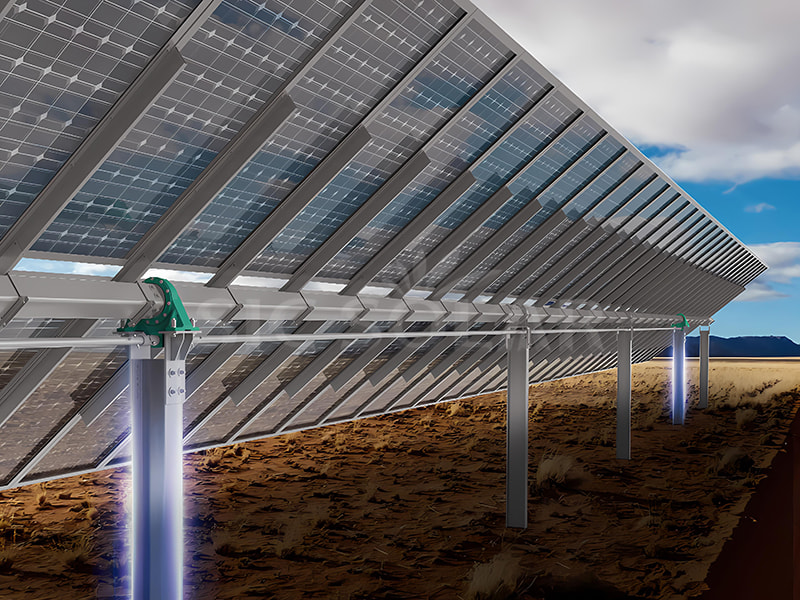

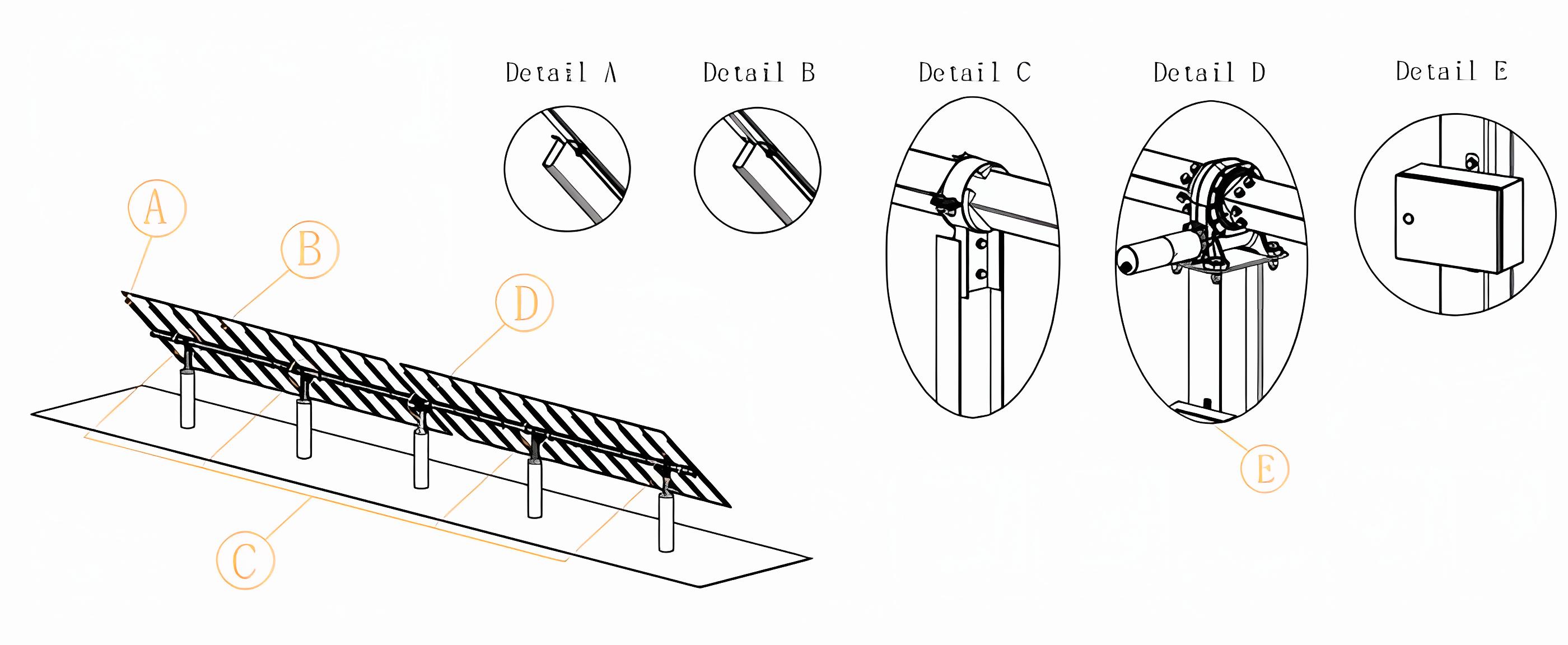

3️⃣ Tracker Assembly

Build main frame sections, secure drive motors and gearbox, and install bearings on torque tubes or pivot points.

4️⃣ Sensor & Controller Integration

Install light sensors or write astronomical algorithms; connect controllers to motors and farmhouse SCADA system.

5️⃣ Module Installation

Use clamps to secure PV modules to horizontal rails; tighten to manufacturer specifications.

6️⃣ Commissioning & Testing

Perform functional tests, including wind load and limit switch checks; verify electrical grounding and perform infrared scans.

Advantages as follow:

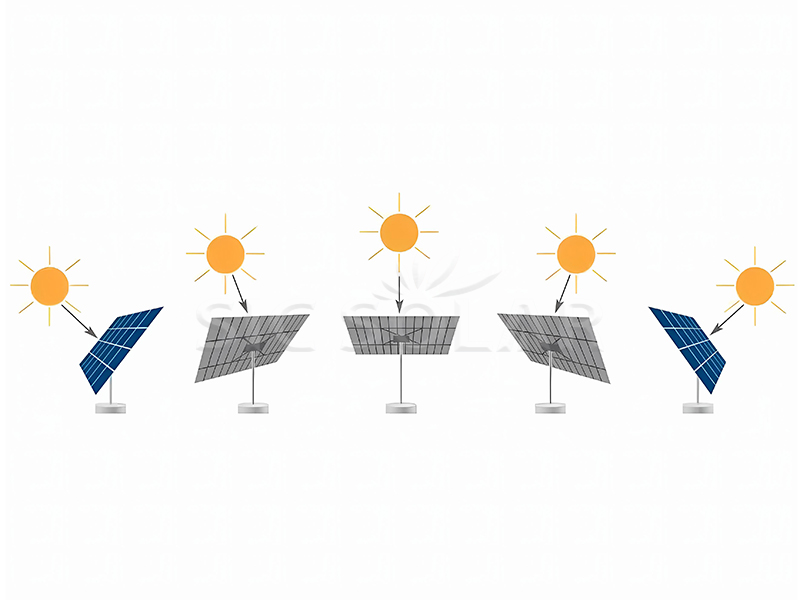

☆ Adjustable solar angle -60-+60 degree - Win more solar energy during solar tilt angle change

☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.

☆ Pre-assembled main frame  – highly save the labor cost at your installation site.

Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
