Metal roof mounting L feet
Metal roof mounting L feet

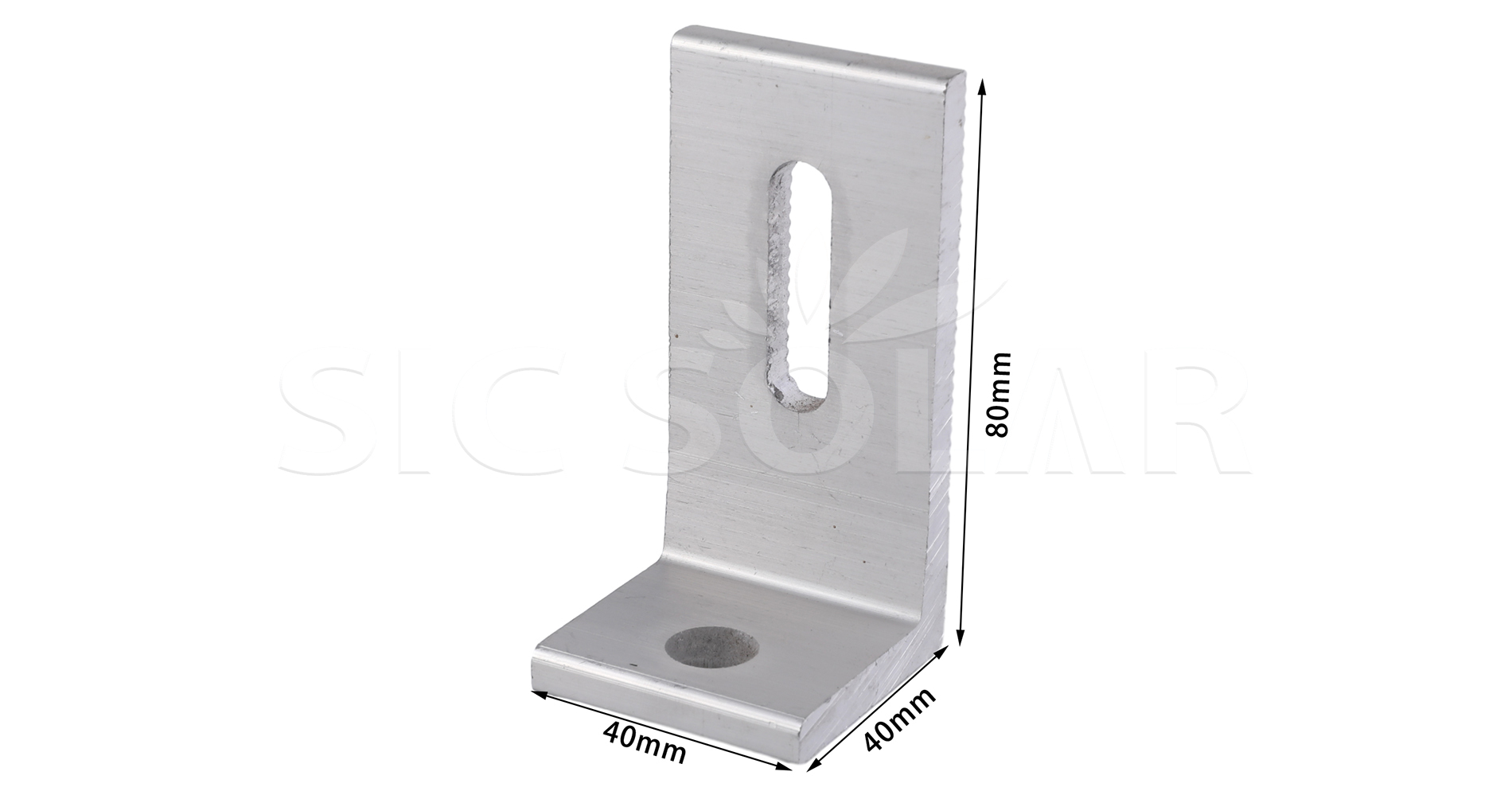

Aluminum L feet solar mount for metal roof

Aluminum L feet solar mount for metal roof is a mounting bracket specifically designed for mounting solar panels to metal roofs. Made of aluminum, the L-shaped bracket is lightweight, durable, and highly corrosion-resistant, making it an excellent choice for outdoor solar panel installations.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-L2

  • Installation Site:

    Metal roof

  • Color:

    Silver or black

  • Material:

    Al6005-T5

  • Wind Load:

    60m/s

  • Snow Load:

    1.4kn/m2
Inquire Now
Download



L feet solar panel mount

Aluminum L feet solar mount for metal roof is an essential component of metal roof solar installations, providing a safe and secure connection point for mounting rails and solar panels. Designed for corrugated, trapezoidal and standing seam metal roofs, it provides a strong, corrosion-resistant and lightweight solution for solar panel mounting.

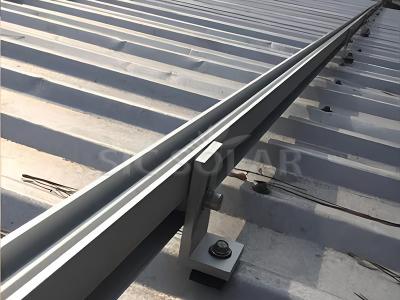

Solar metal roof rack

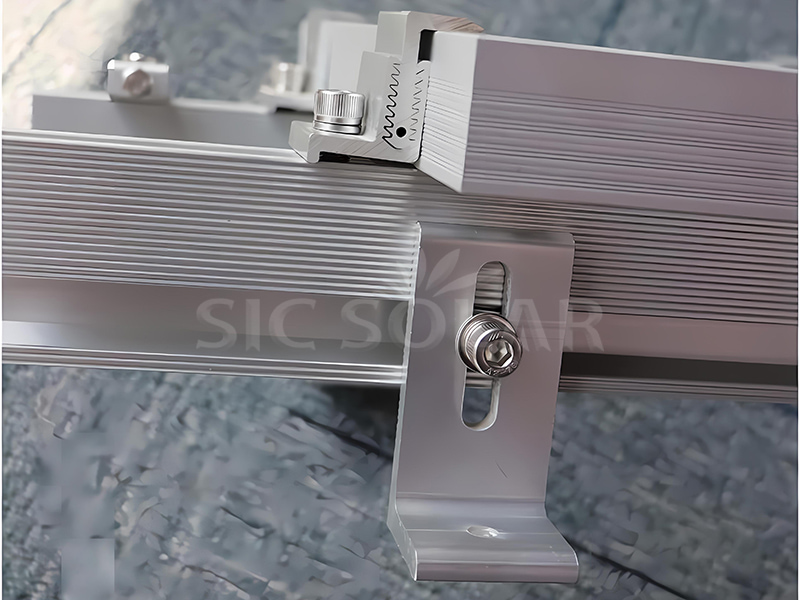

Aluminum L feet solar mount for metal roof is L-shaped to provide vertical and horizontal support for your solar racking system. The design is easy to install and forms a secure connection point to secure the solar panel rail to your metal roof without damaging the roof surface.

Components Video Technical Details Installation Guide Package Advantage

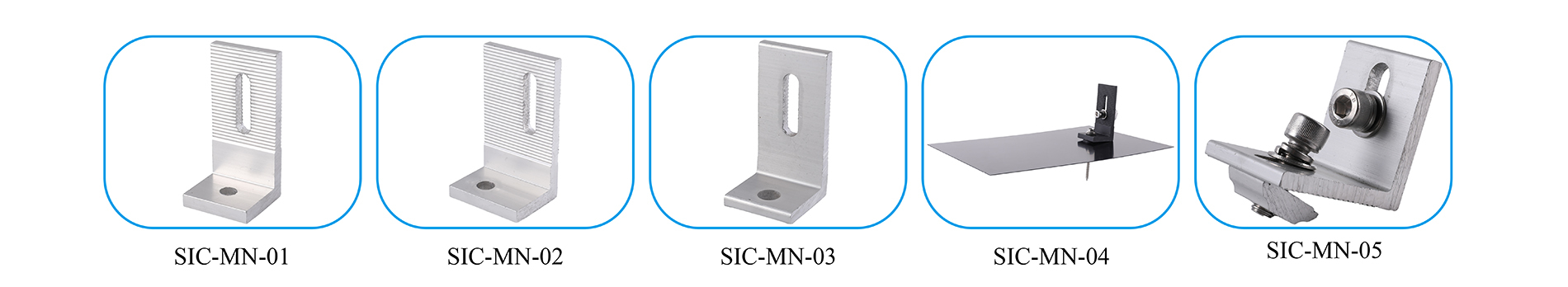

Click here to learn more L feet

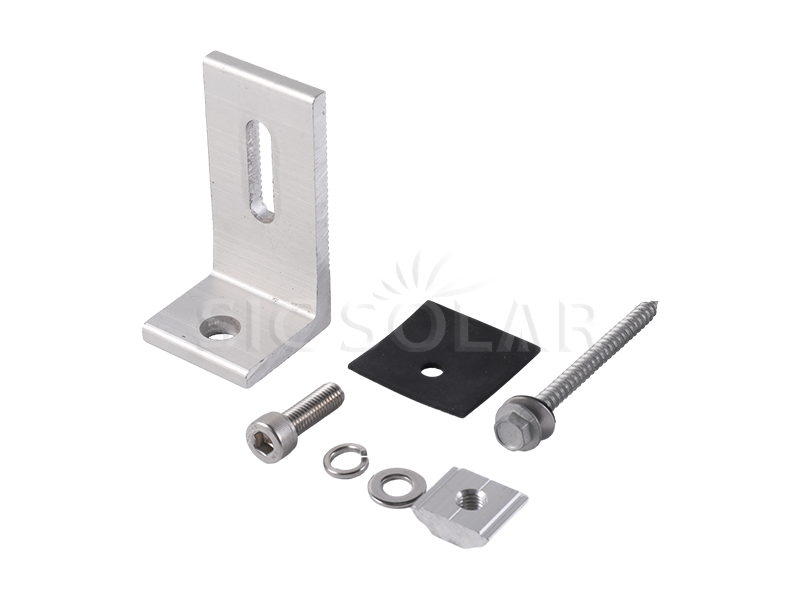

Aluminum L Feet Solar Mount

Solar Panel L Feet For Roof Mount

Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

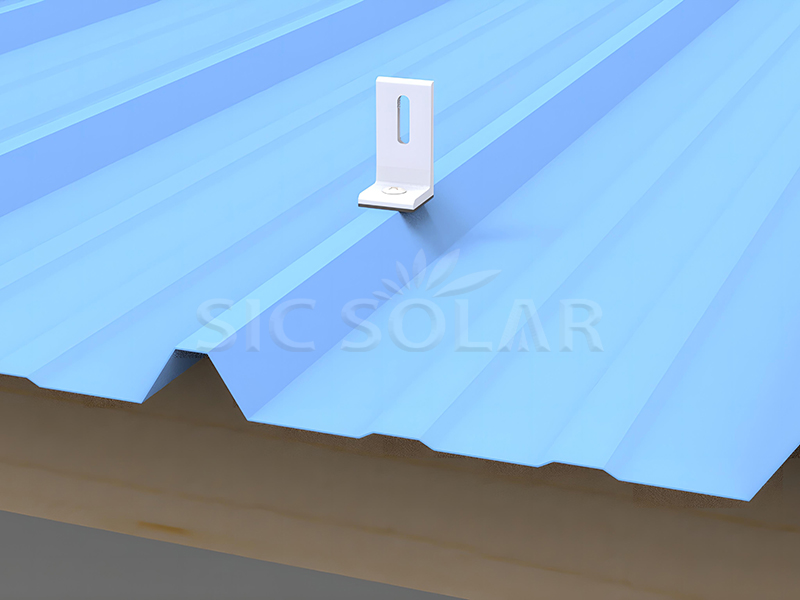

1️⃣ Mark the mounting point – Identify and mark the correct location on the metal roof for the L-foot bracket to be mounted.

2️⃣ Securing the L-foot to the roof – Secure the L-foot to the roof structure using appropriate self-drilling screws, hanger bolts or clamps. (Note: Waterproof gaskets or sealants should be used to prevent leaks.)

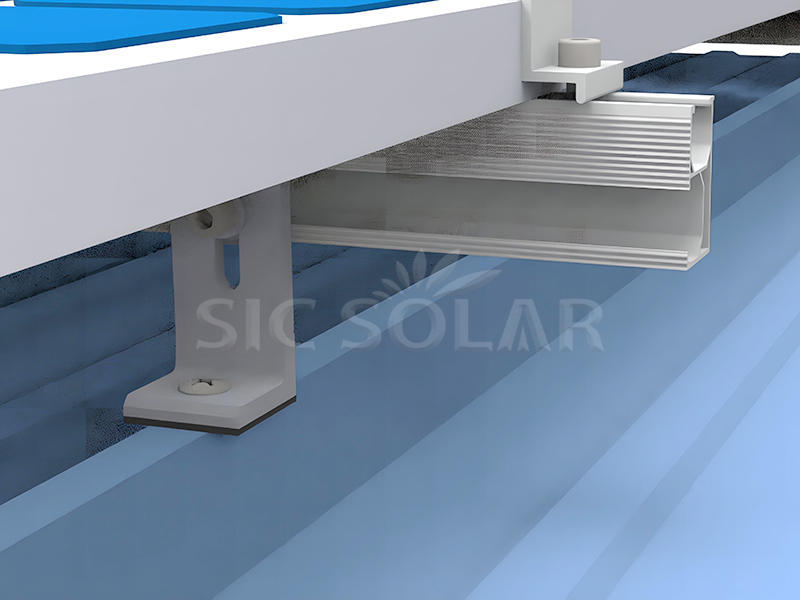

3️⃣ Installing the solar mounting rail – Secure the solar mounting rail to the L-foot bracket using T-bolts or hex bolts.

4️⃣ Installing the solar panel – Secure the solar panel to the rail using the mid-clamp and end-clamps.

5️⃣ Final check and tightening – Make sure all connections are tight and perform a stability check before final installation.

Solar bracket package

Advantages as follow:

☆ Strong connection - L feet will be fixed on the steel or wooden purlin by screws or hanger bolts.

☆ EPDM rubber can be effective waterproofing.

☆ Pre-assembled components  – highly save the labor cost at your installation site.



Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
