Aluminum Solar Panel End Clamps For Pv Mounting System

Aluminum Solar Panel End Clamps For Pv Mounting System for PV mounting systems are key parts designed to securely hold the edges of solar panels to the mounting rails in photovoltaic (PV) systems. They are used across residential, commercial, and large-scale solar installations to keep the panels stable and ensure the system lasts a long time.

Brand:

SIC SOLAR

Item NO.:

SIC-EC-G

Installation Site:

Roof or Ground

Color:

Black and silver

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clamp

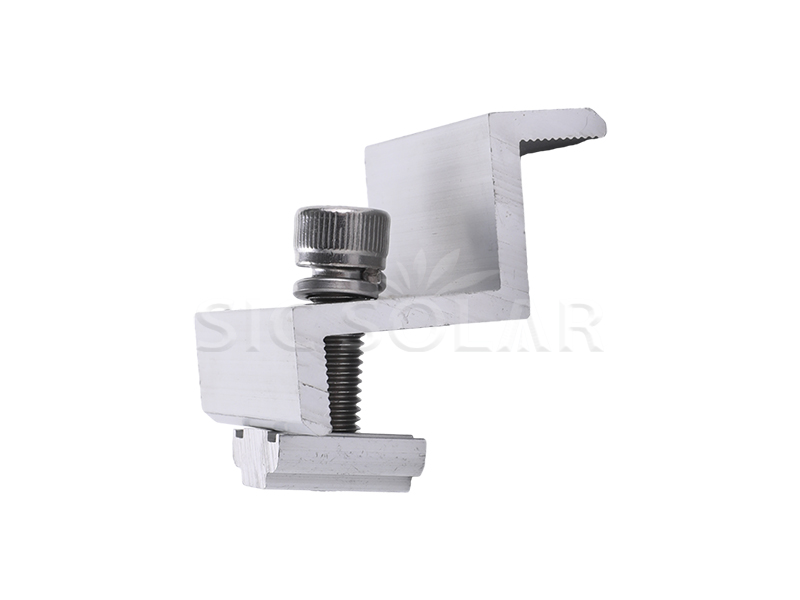

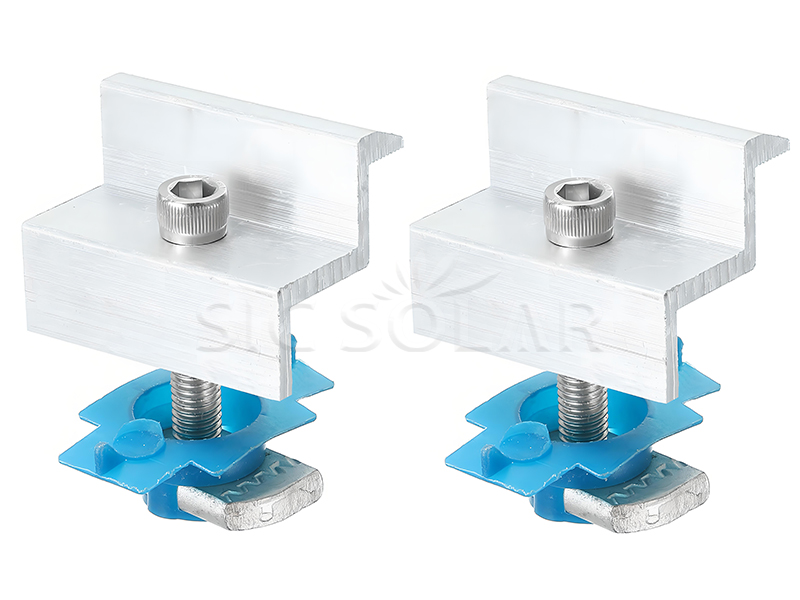

Solar Panel End Clamps

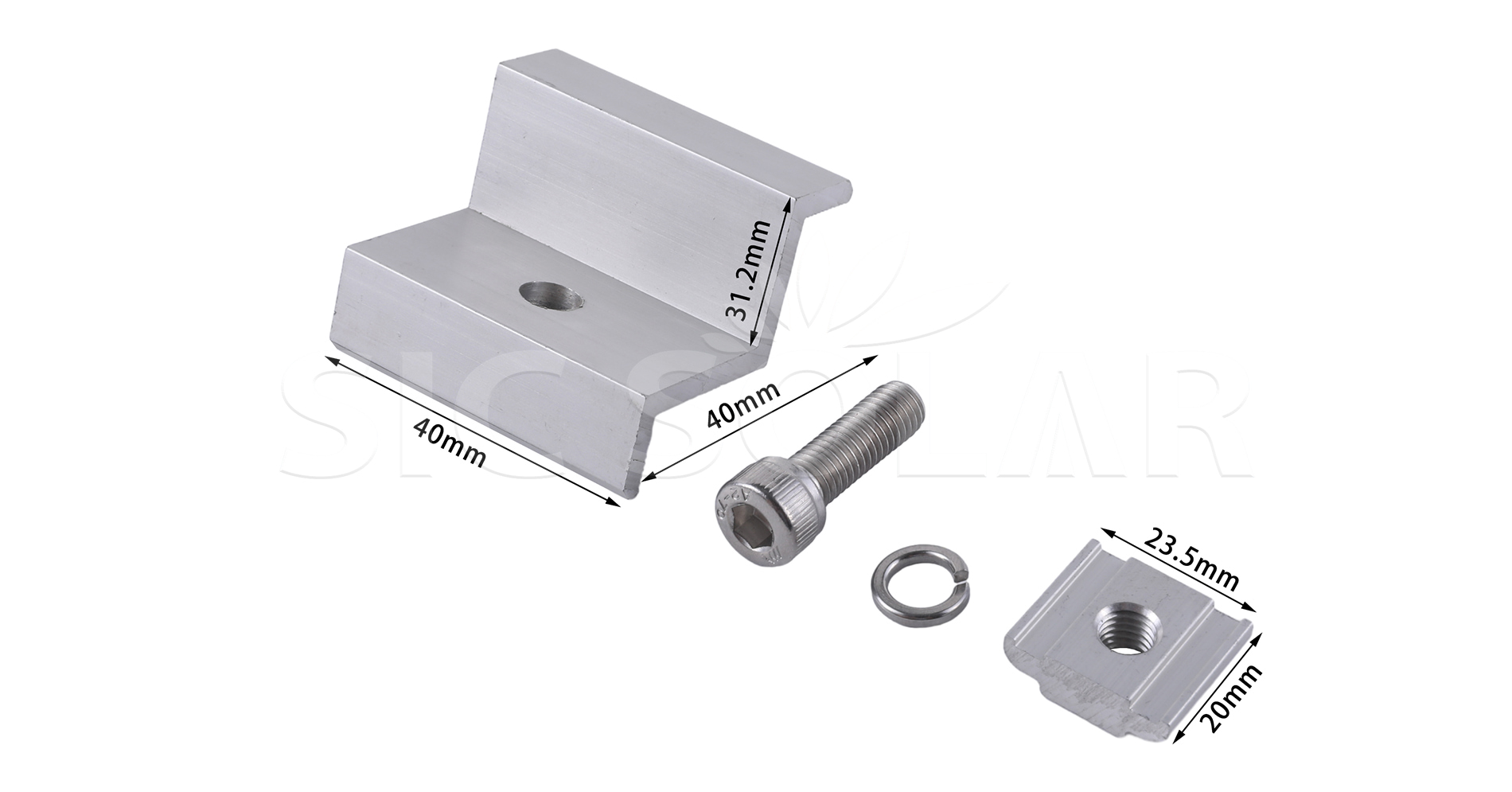

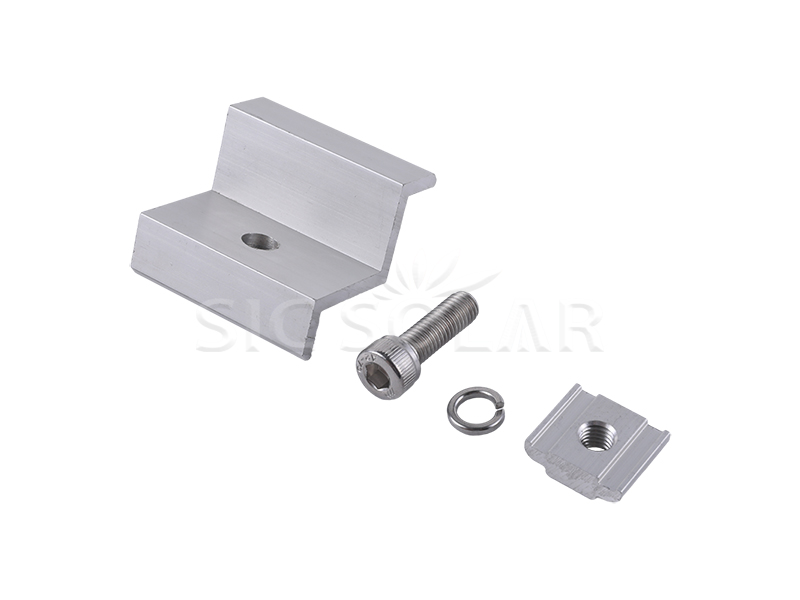

Solar Rail End Clamp Mounting

Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ First, place the solar panel on the mounting rail where you want it.

2️⃣ Next, line up the end clamps along the panel’s edge so they match the frame height.

3️⃣ Then, fasten the clamps into the rail grooves using bolts.Use a wrench to tighten the bolts and secure the panel firmly.

4️⃣ Tighten: Use a wrench to tighten the bolts, securing the panel.

5️⃣ Finally, repeat this process for both ends of each row of panels and double-check all the connections.

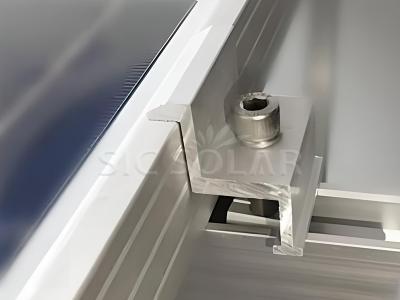

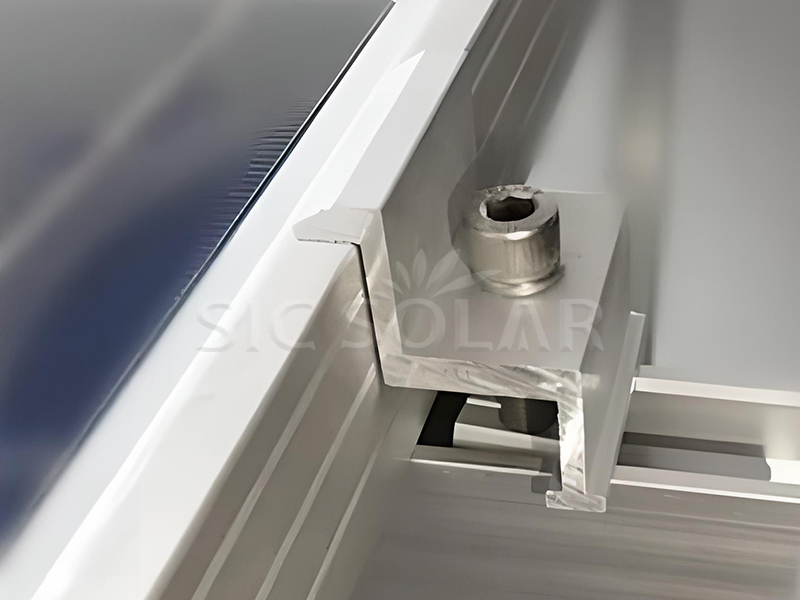

Solar panel hold down clamps

☆ We offer different types of end clamps depending on what the client needs.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Smart patented nut design – "Tilt-in-module" could be slide in at any position of rail.

Solar rail installation

Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.

Q1. Can the bolts also be made black ?

Yes.

Q2. Can the clamps be customized ?

Yes.
