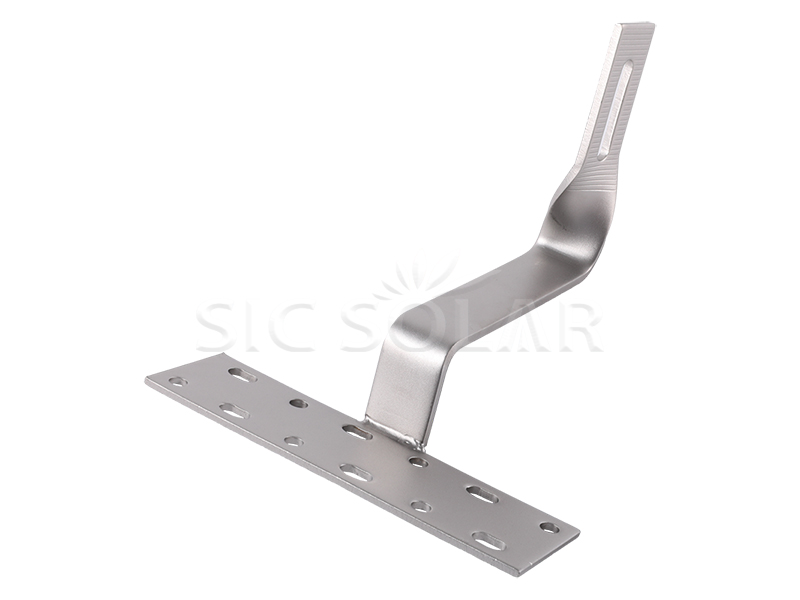

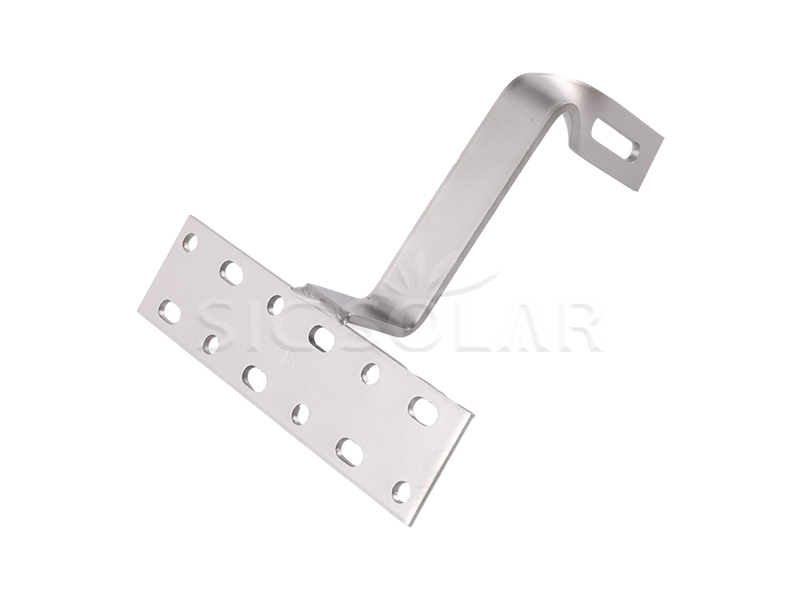

Tile Twist Roof Hooks For PV Mounting Structure

Click here to learn more

1️⃣ Locate the roof beam – Identify the rafter or structural beam beneath the tile.

2️⃣ Lift the tile edge – Carefully lift the tile from its mounting point without breaking it.

3️⃣ Position the hook – Slide the swivel hook under the tile and align it with the roof beam.

4️⃣ Rotate and secure – Rotate the hook into position and secure it to the beam using the stainless steel screws.

5️⃣ Reposition the tile – Gently lower the tile back into position, ensuring it is flush with the hook.

6️⃣ Install the rail – Secure the PV mounting rail to the bracket portion of the hook using bolts and nuts.

7️⃣ Install the panel – Install the solar panel using the mid-section and end clamps to complete the system assembly.

Advantages as follow:

☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.

☆ High strength – Stainless steel material makes the hook can sustain strong wind and heavy snow.

☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGSCertificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

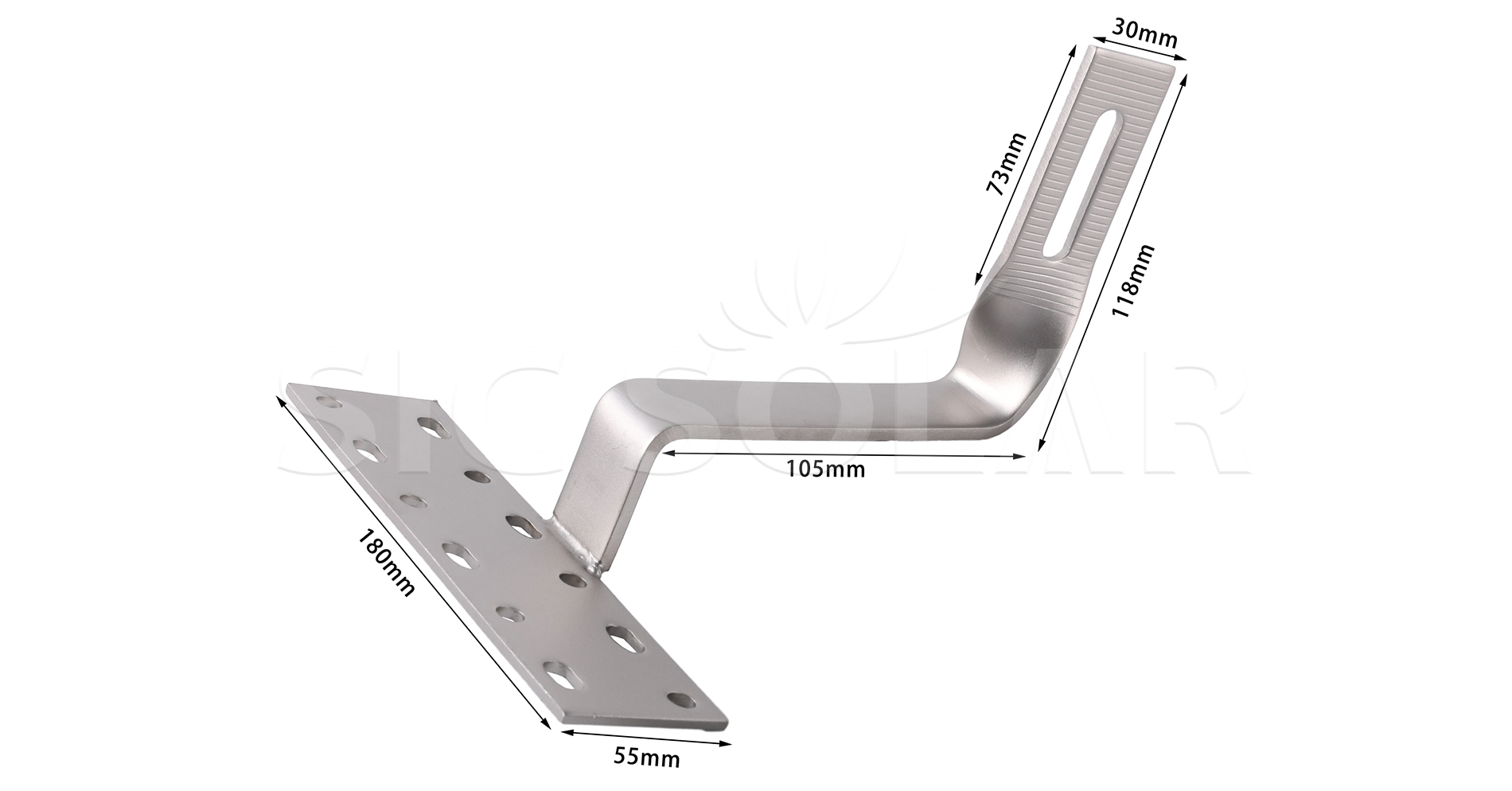

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

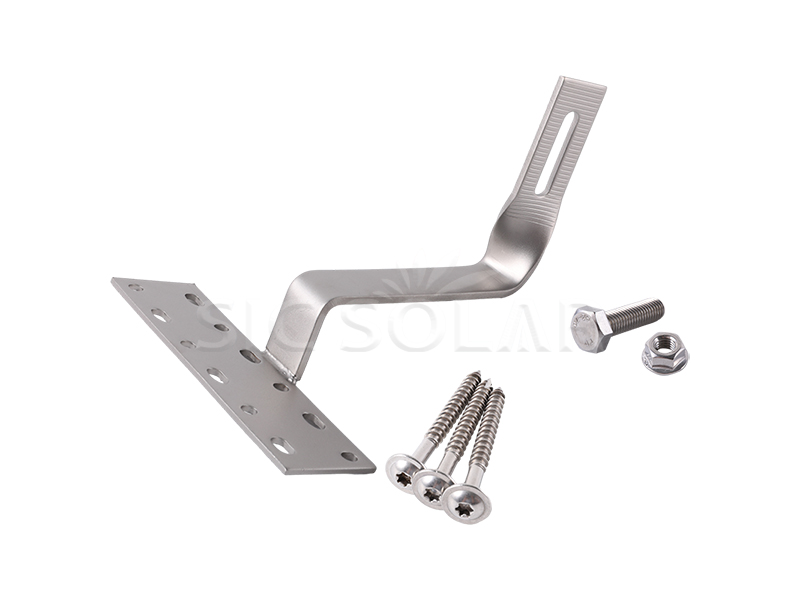

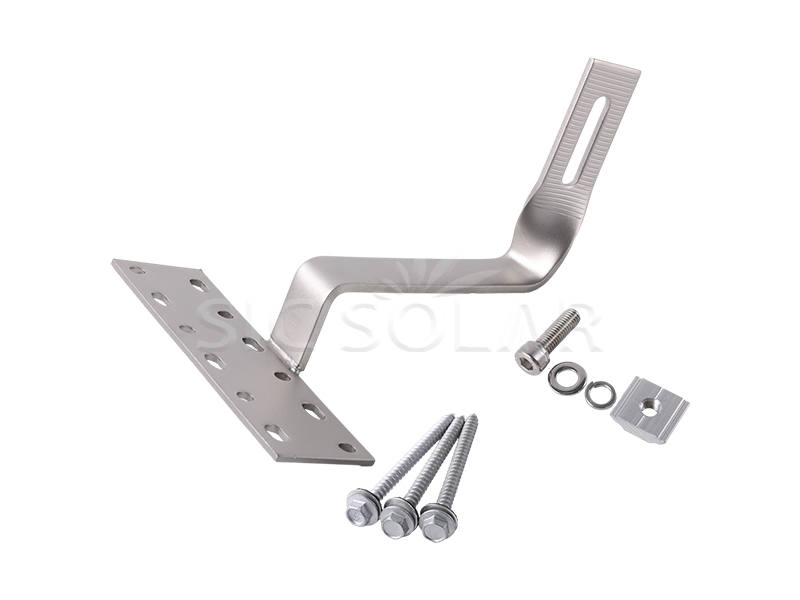

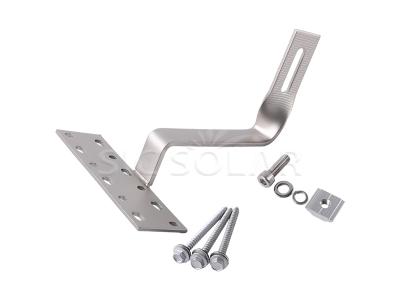

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
