Solar Curved Tile Roof Hook

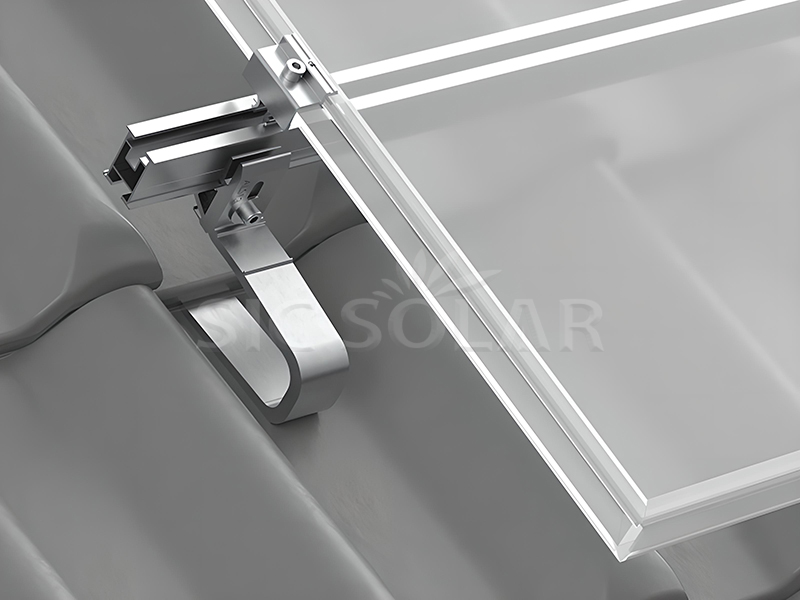

Solar Curved Tile Roof Hook is designed for installing solar panels on curved tile roofs. It connects the roof structure to the solar mounting rails while helping the mounting system follow the shape of the curved tiles.

Brand:

SIC SOLAR

Item NO.:

SIC-TH-06

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Tile roof

Color:

Can be customized

Material:

SUS304

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

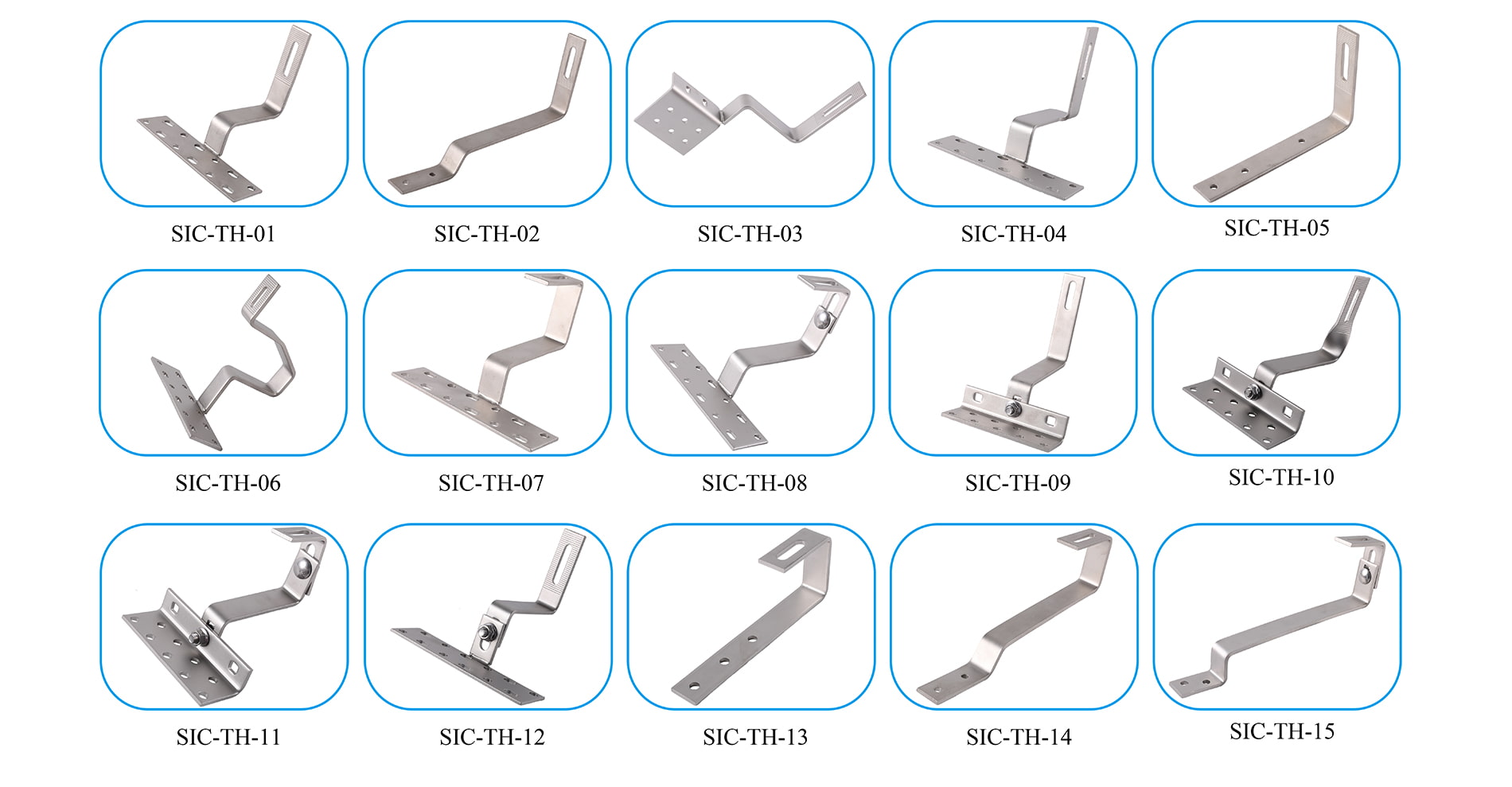

Click here to learn more hooks

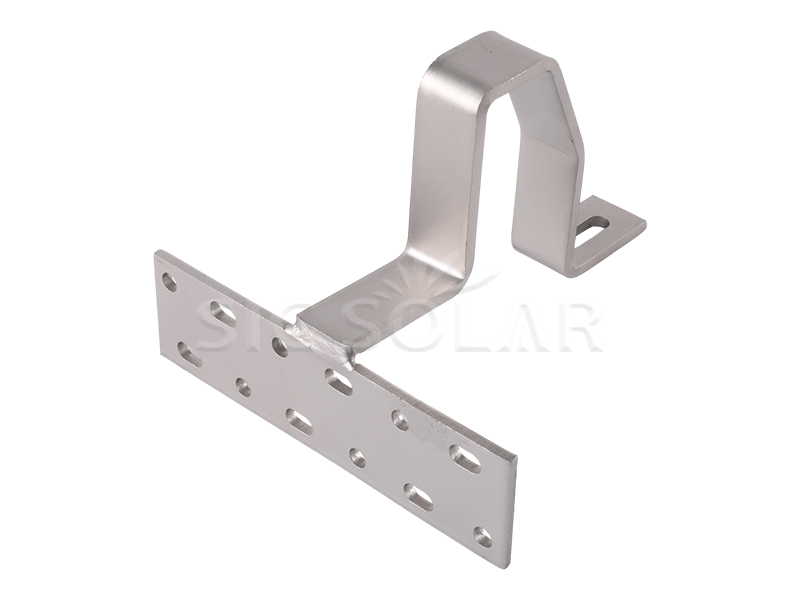

Tile roof hook

Roof Tile Hook

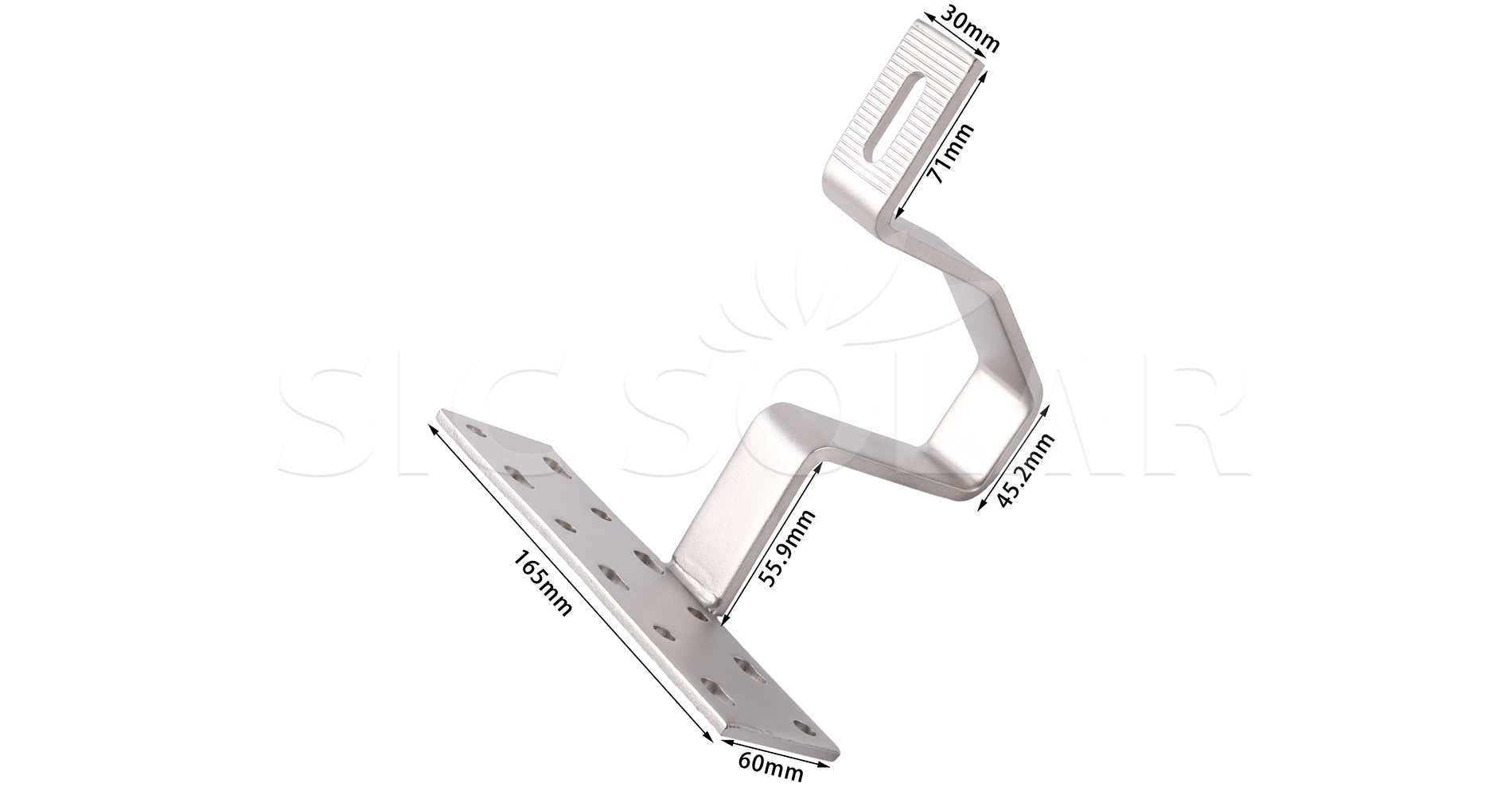

Name	Solar Curved Tile Roof Hook
Material	SUS304
Metal sheet thickness	≧4mm
Warranty	10 Years warranty and 25 Years lifetime
Applicable site	Tile Roof
Range of bolt torque	25-28N*m
Value of pullout resistance	5KN
Value of pressure resistance	5KN

1️⃣ Inspect the Roof
Check the tile profile, roof condition, and supporting structure. Replace damaged tiles before installation.

2️⃣ Mark the Fixing Positions
Plan the panel layout and mark the hook positions according to the rail spacing and system design.

3️⃣ Access the Roof Structure
Carefully lift or remove the necessary tiles to locate the rafters or other suitable load-bearing supports.

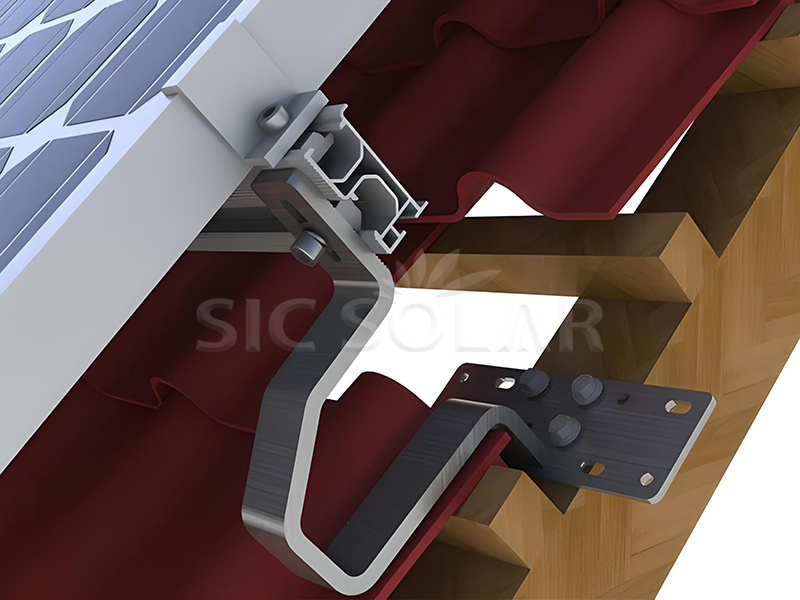

4️⃣ Install the Roof Hook
Position the hook correctly and secure it to the roof structure with suitable screws or bolts.

5️⃣ Complete the Waterproofing
Use suitable flashing, sealing washers, or waterproofing materials around the fixing points.

6️⃣ Install the Rails and Panels
Attach the solar rails to the hooks, adjust their alignment, and secure the panels with compatible clamps.

7️⃣ Perform a Final Check
Check all fasteners, rail connections, tile positions, panel alignment, and waterproofing details.

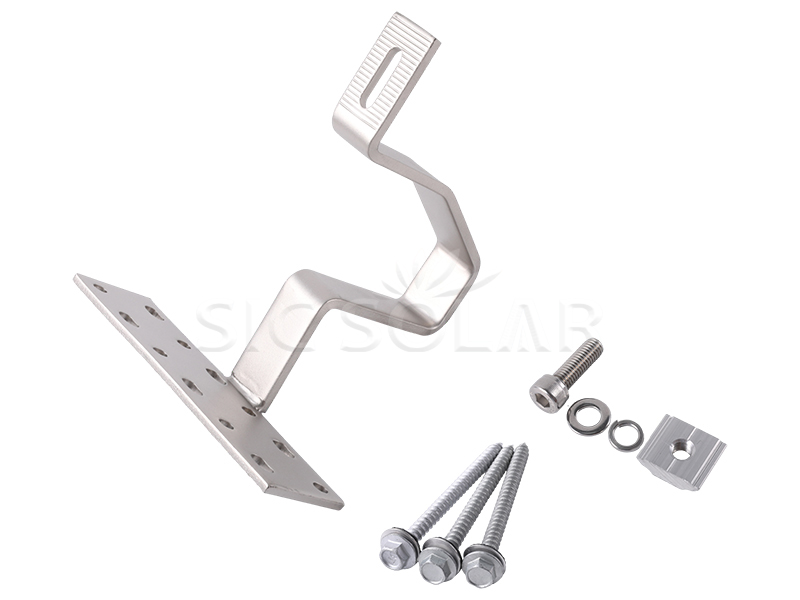

Solar bracket package

☆ Stable Mounting Support: Provides a reliable connection between the roof structure and solar mounting rails.

☆ Durable Material Options: Can be made from suitable metal materials for long-term outdoor use.

☆ Easy Rail Connection: Compatible with suitable solar rails and common mounting accessories.

☆ Neat Installation: Helps the mounting system follow the existing curved roof profile.

Related Certificates

☆ CE Certificate: Available for the solar tile hook roof mounting system.

☆ SGS Certificate: Available for the SUS304 hook material.

Q1: What material is the solar roof hook made of?
It is made from SUS304 stainless steel, also known as A2 or 1.4301 stainless steel in Europe.

Q2: What surface treatments are available for the A2 roof hooks?
Available options include sandblasting, non-sandblasted finishes, and passivation.

Q3: How can roof leakage be prevented?
Suitable flashing, sealing washers, and waterproofing materials should be used around the fixing points according to the roofing system requirements.

Q4: Is it compatible with all solar rails?
No. Compatibility depends on the rail profile, bolt size, slot design, and connection method. These dimensions should be confirmed before installation.

Q5: Can the roof hook be customized?
Yes. The shape, dimensions, thickness, hole position, and surface finish can be customized according to project requirements.
