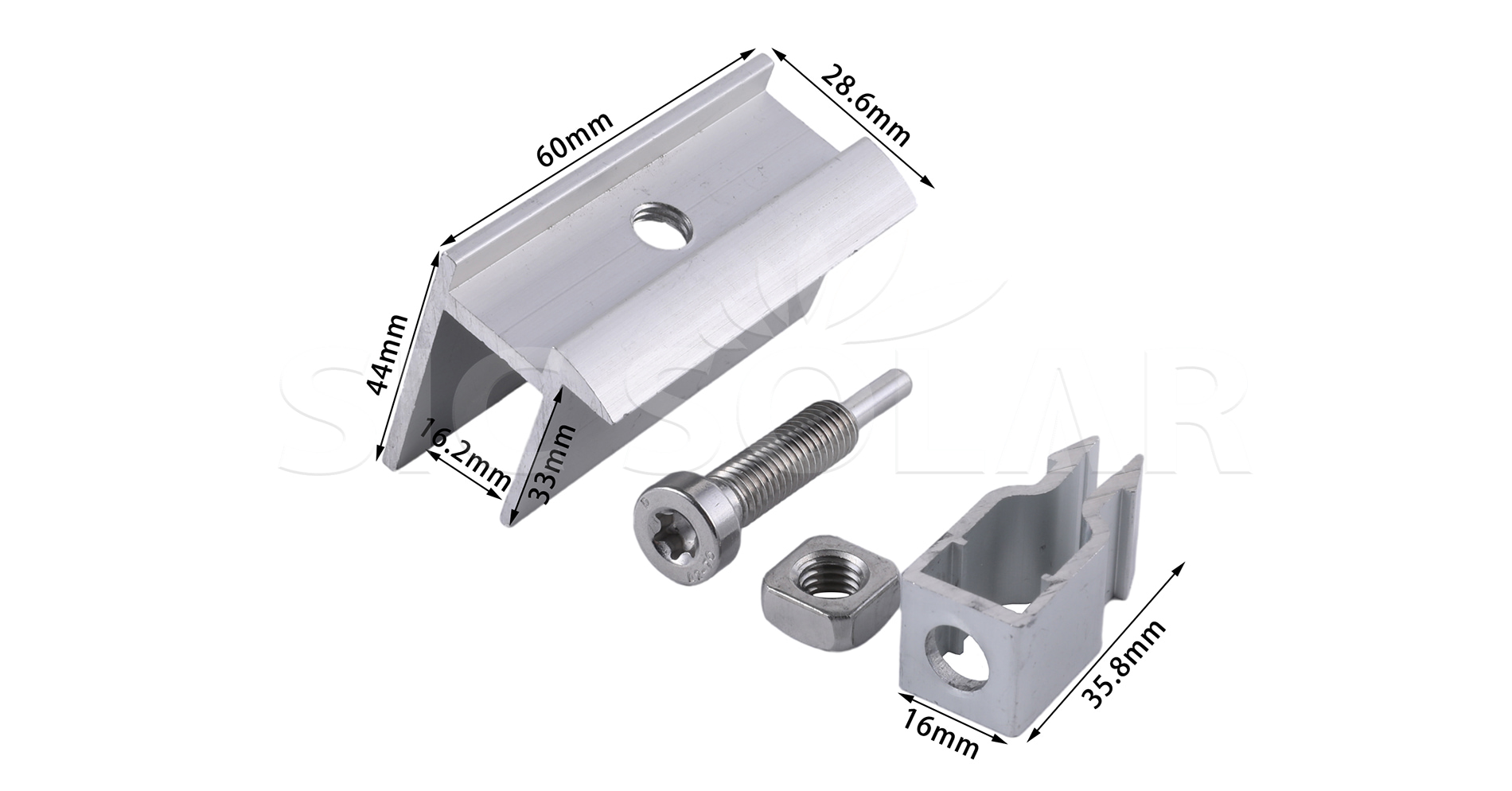

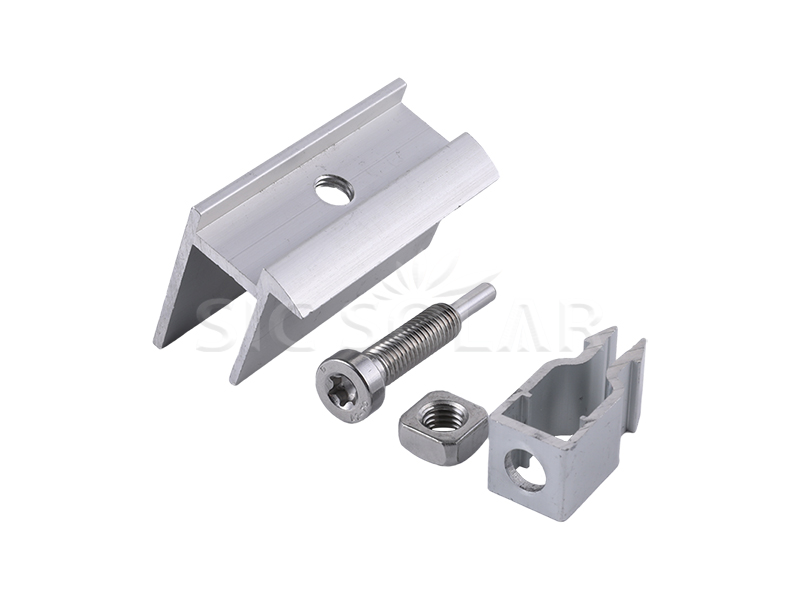

Solar Clamps Mid/End Clamp Quick Mount

Solar Clamps Mid/End Clamp Quick Mount are key parts used to secure solar panels to mounting systems. They are designed to make installation easier while offering reliable support for solar setups in homes, businesses, and industrial sites.

Brand:

SIC SOLAR

Item NO.:

SIC-EC-A

Installation Site:

Roof or Ground

Color:

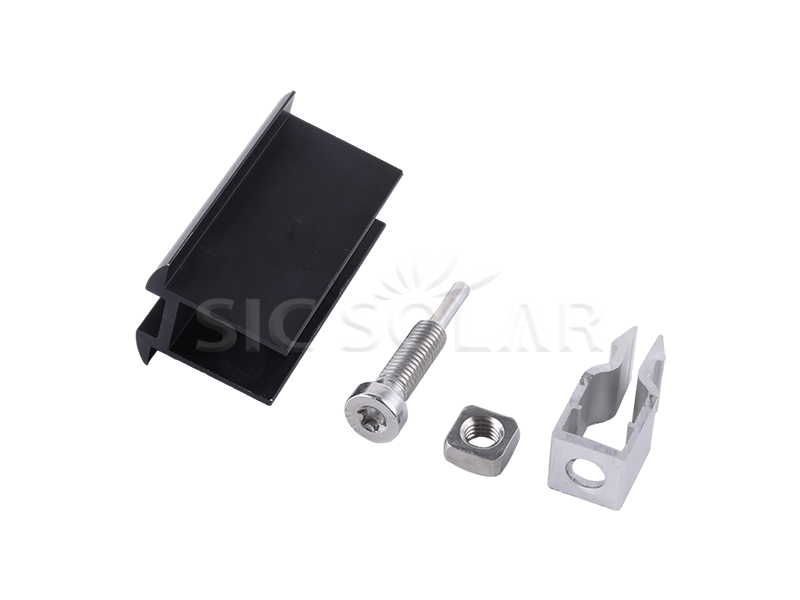

Silver & Black

Material:

AL6005-T5 & SUS304

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more rail clamp

Clamp Quick

Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ Prepare the rails: Install and align the rails on the roof or ground.

2️⃣ Place the modules: Put the solar panels onto the rails.

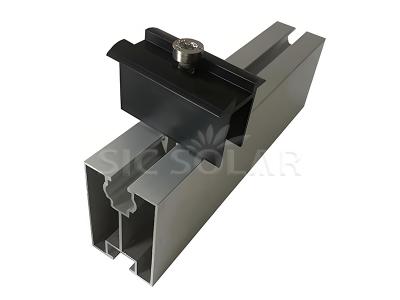

3️⃣ Insert the clamps: Slide the clamps into the desired rail slots.

4️⃣ Tighten the fasteners: Secure the clamps with stainless steel bolts.

5️⃣ Use as intermediate clamps: Place between panels to hold the edges.

6️⃣ Use as end clamps: Position at each end of the array to lock the outer frame.

7️⃣ Final check: Make sure all clamps are tight and panels are properly aligned.

Solar bracket package

☆ Pre-assembled clamps with special clip design could push into the rail quickly.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Flexible panel thickness - 24mm adjustable height with the short and long bolt.

Related certificate

☆ Aluminum quality certificate showing AL6005-T5 composition.

☆ CE Certificate for the solar tile hook roof mount system.

☆ SGS Certificate for the screw material SUS304.

Q1. Can the bolts also be made black ?

Yes.

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
