Quick Installation Solar End Clamp

Click here to learn more end clamps

1. Preparation

Tools required: torque wrench, tape measure and appropriate safety equipment.

Site assessment: Ensure that the mounting rails are properly installed and aligned according to the system design.

2. Installation steps

1️⃣ Position the end clamp

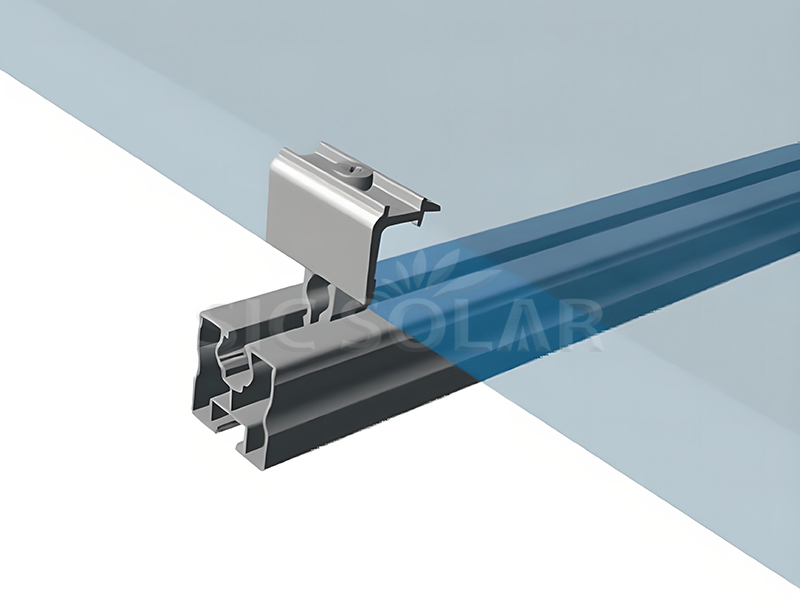

Insert the end clamp into the designated slot of the solar panel array edge mounting rail. Ensure that it is properly aligned with the panel frame.

2️⃣ Secure the clamp

Tighten the clamp's fasteners to the recommended torque to secure it to the panel frame.

3️⃣ Final check

Confirm that the clamp is securely installed and the panel is securely in place. Ensure that there is no movement or gap between the clamp and the panel frame.

Advantages as follow:

☆ Quick installation — Only need to be pressed hard into the rail.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Anticorrossion

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

SGS Certificate for screw material -- SUS304

Q1. Can the bolts also be made black ?

Yes.

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
