Home Products Solar Components Mid clamp Thin Film Solar Panel Mid Clamp
Frameless pv module inter clamp
Frameless pv module inter clamp
Frameless pv module inter clamp

Thin Film Solar Panel Mid Clamp

Thin Film Solar Panel Mid Clamp is a special accessory used to hold thin-film solar panels onto a PV bracket system. These clamps sit between two panels that are next to each other, giving them stability and support while keeping them properly spaced.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-TF

  • Installation Site:

    Roof or Ground

  • Material:

    AL6005-T5 & SUS304

  • Warranty:

    10 years and 25 years service time

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now
Download

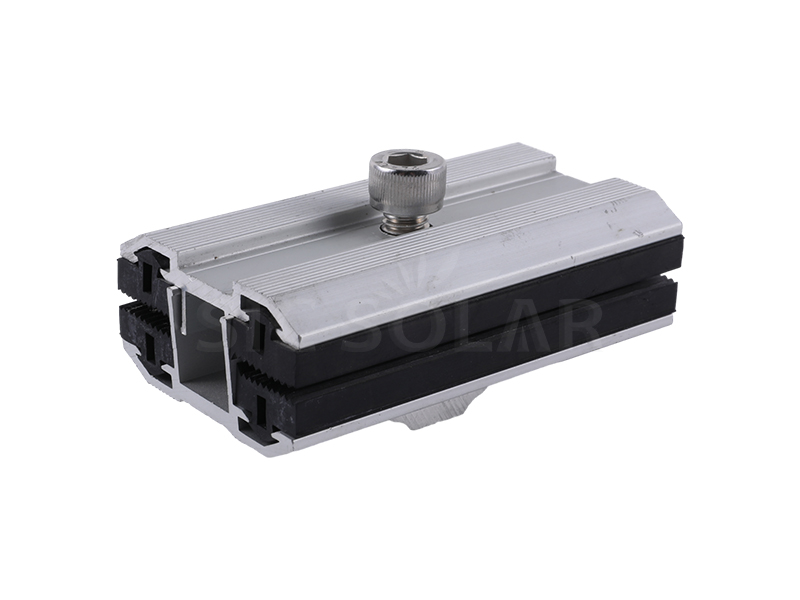

Aluminum Thin Film Solar Mid Clamp

You can use a Thin Film Solar Panel Mid Clamp for both thin film solar panels and solar modules that don't have a frame. The rubber inside the clamp helps protect those frameless solar modules. Thin film PV modules will be held firmly in place with just the right amount of pressure.

Thin Film End Clamp

To pick the right size Thin Film Solar Panel Mid Clamp, you should check the product details and the actual thickness of your solar panel. Or, you can just give us a call to get a custom size made.

Components Project Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clamp

Solar Panel Mid Clamp



Aluminum Thin Film Solar Clamp

Thin Film Solar Panel Mid Clamp

Components

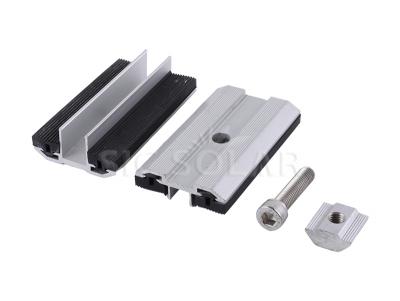

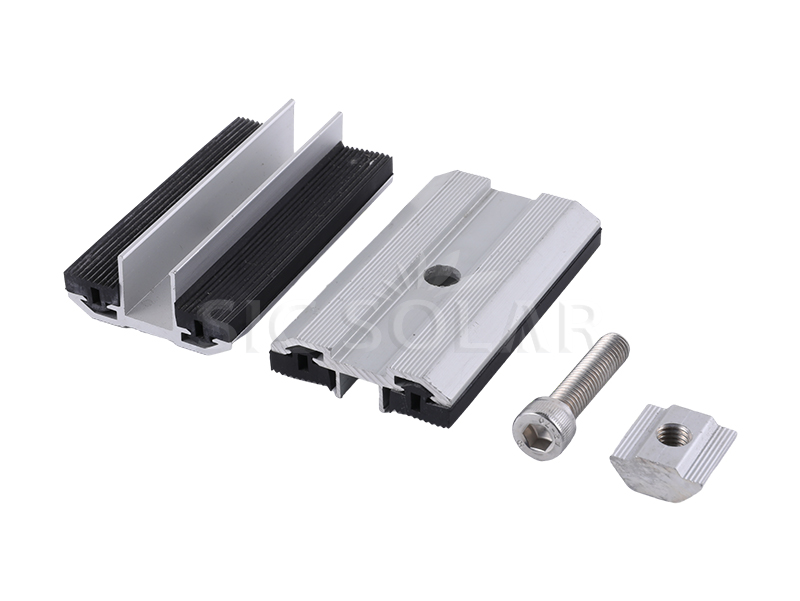

 Aluminium body, A2-70 Bolt, EPDM Rubber

Applicable Module

6-9mm frameless thin film solar module

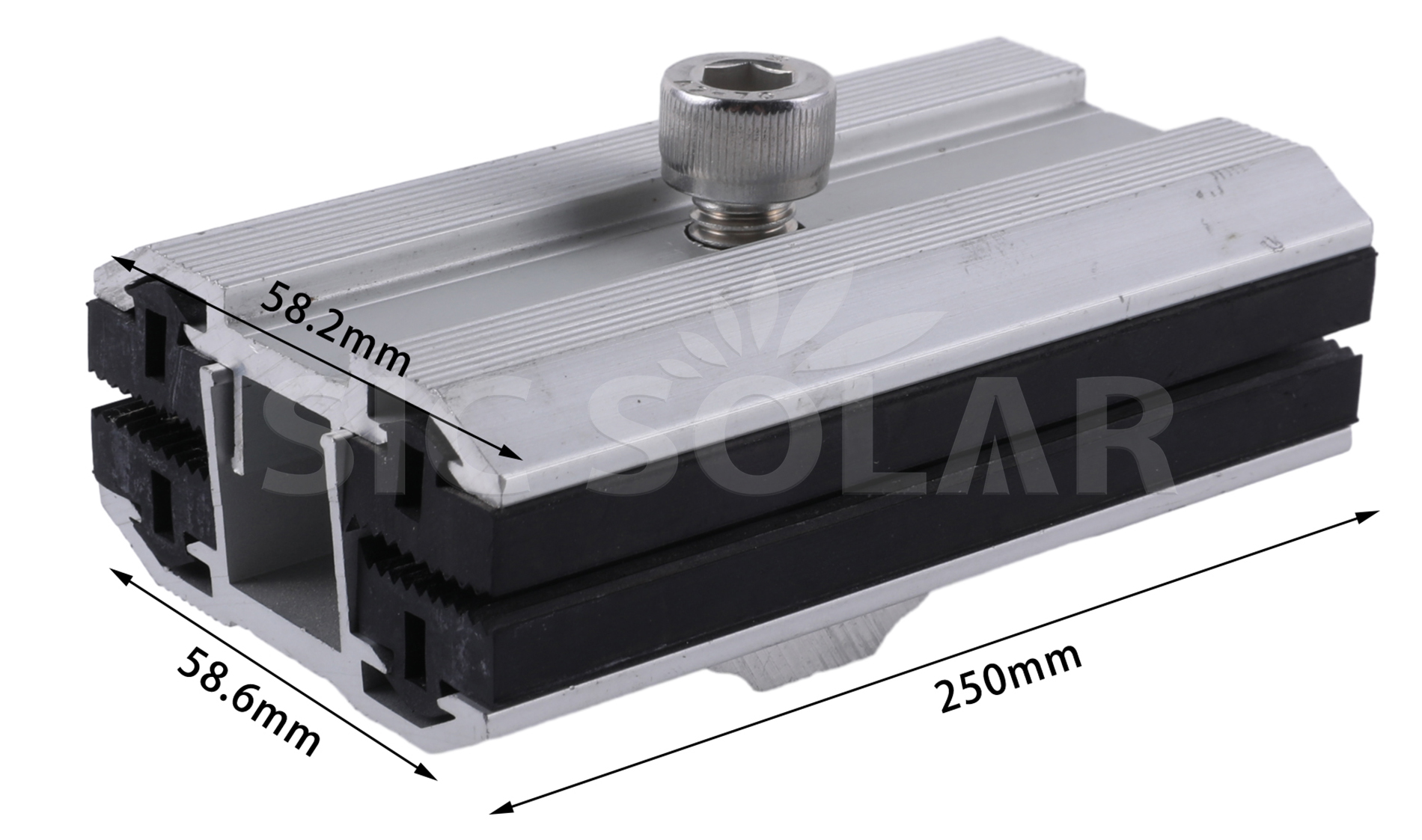

Length

80mm, 120mm, 150mm, 200mm or customized length

Color

Siliver or black anodized
Standard AS/NZS 1170.2, JIS C 8955:2011

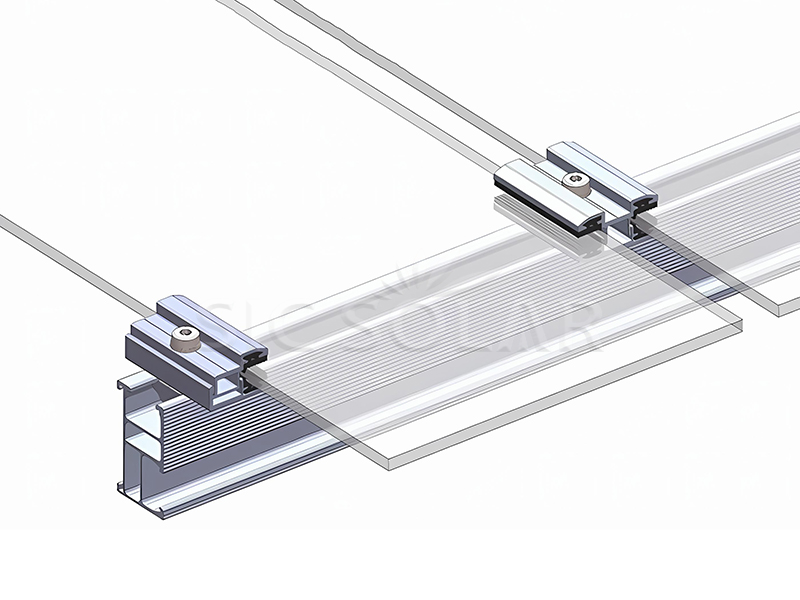

1️⃣ First, put the thin panel onto the mounting rail.

2️⃣ Then, take the center clip and hold it against the panel's edge.

3️⃣ Now, slide the next panel into that clip and make sure it's lined up properly.

4️⃣ Use the stainless steel fasteners to tighten the bolts and secure both panels.

5️⃣ Keep going like this, putting clips between each pair of panels.

Solar bracket package

☆ The good quality rubber inside keeps your thin film solar panel safe.

☆ It's really flexible, working with thin film solar panels that are anywhere from 6mm to 9mm thick.

☆ It's very durable, made from the best AL6005-T5, which means it comes with a 10-year warranty and should last 25 years.



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.

Q1. Can the bolts also be made black ?

Yes.



Q2. Can the clamps be customized ?

Yes.
