PP plastic solar ballast roof mount

PP plastic solar ballast roof mount is designed for installing solar panels on flat roofs without drilling into the roof surface. Concrete blocks or other ballast materials hold the mounting structure in place. Made from durable PP plastic, the mount is lightweight, easy to handle, and suitable for various flat-roof solar projects.

Brand:

SIC SOLAR

Item NO.:

SIC-FPB1

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Flat surface

Tilt Angle:

18 degree

Color:

Black

Material:

Warranty:

5 Years Warranty

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Video Technical Details Installation Guide Package Advantage FAQ

Click here to learn more produce

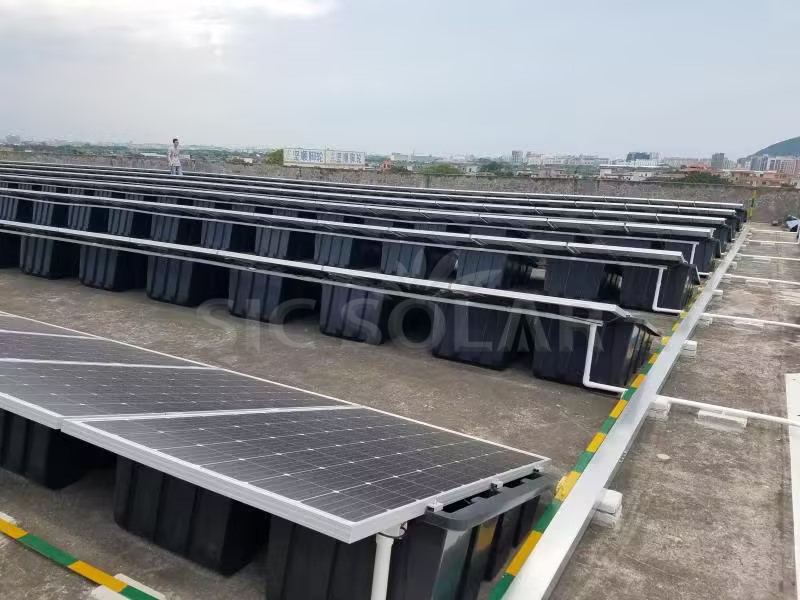

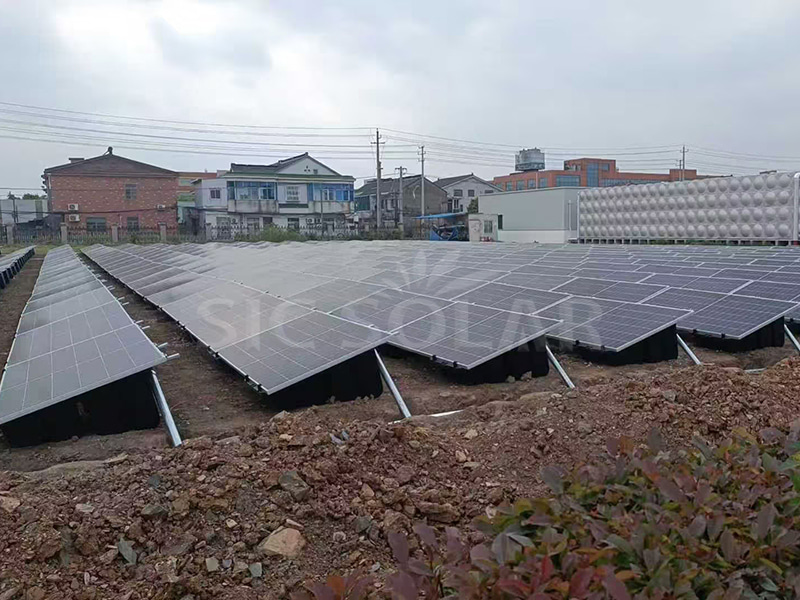

Ballast Solar Installation

Click here to learn more produce

PP plastic solar ballast mount

Installation Site	Flat surface
Material	PP
Filler	Gravel, stone
Weight of filler	120KGS
Content	Plastic pan1, end clamp4, screw*4
Angle of installation	18°
Life time	20 years
Dimension	1017695507 mm
Net weight	7.5 KGS
Warranty	5 Years Warranty

1️⃣ Prepare the Roof – Clean the roof surface and make sure it can support the ballast and solar panels.

2️⃣ Install the Brackets – Position the plastic ballast brackets according to the required panel spacing.

3️⃣ Add Ballast – Fill the ballast trays with the required weight of stones or concrete blocks.

4️⃣ Install the Solar Panels – Place the panels on the brackets and secure them with the supplied clamps.

5️⃣ Final Check – Check the panel alignment and make sure the entire system is stable.

Package for PP plastic solar ballast mount

☆ Non-Penetrating Design: Helps avoid drilling into the roof surface.

☆ Lightweight Construction: PP plastic is easy to carry, position, and handle during installation.

☆ Easy Installation: Simple components help reduce onsite installation time.

☆ Roof-Friendly Solution: Suitable for projects where protecting the roof and waterproofing layer is important.

☆ Flexible Layout: Supports different panel orientations and flat-roof configurations.

☆ Reusable Potential: Components may be repositioned or reused after careful removal if they remain in good condition.

Q1: Is the system tested for wind speed and snow load?
Yes. Wind and snow load testing can be provided according to project requirements.

Q2: Does the product have any certification?
Yes. Relevant certification documents can be provided upon request.

Q3: Can the tilt angle be changed to 15°?
The current mold is fixed at 18°. A new mold is required for other angles, and the tooling cost may be too high for small orders.

Q4: Does the PP mount have any requirements for solar panel size?
For horizontal panel installation, the panel width should be between 992 and 1010 mm. Panels with other widths may require an adapter. There is no specific panel-width requirement for vertical installation.

Q5: Does the price include clamps and other mounting materials?
Yes. The price includes the panel clamps and other standard mounting components. Ballast materials, such as gravel or concrete blocks, are not included.

Q6: What is excluded from the final DDU quotation, such as customs clearance or European taxes?
Under DDU terms, import duties and VAT are not included. For European countries, the estimated additional tax cost is around 6.5%, depending on the destination and applicable regulations.
