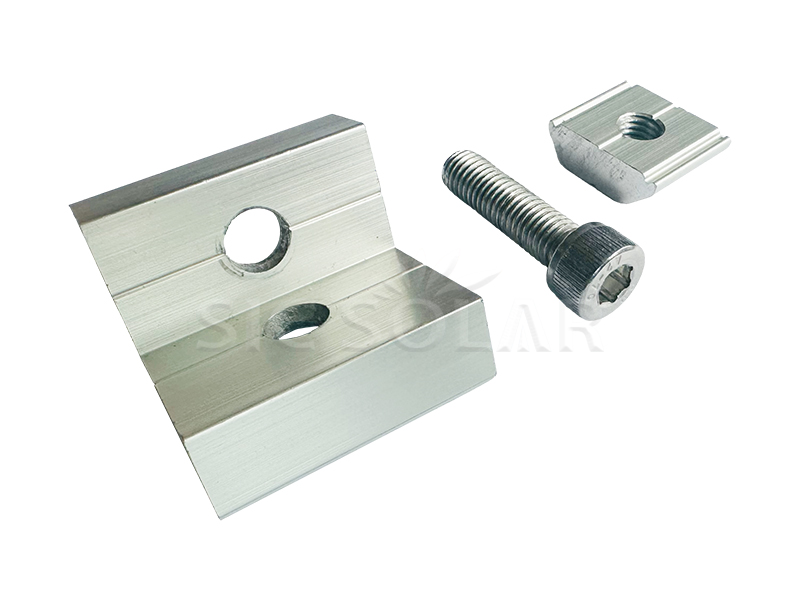

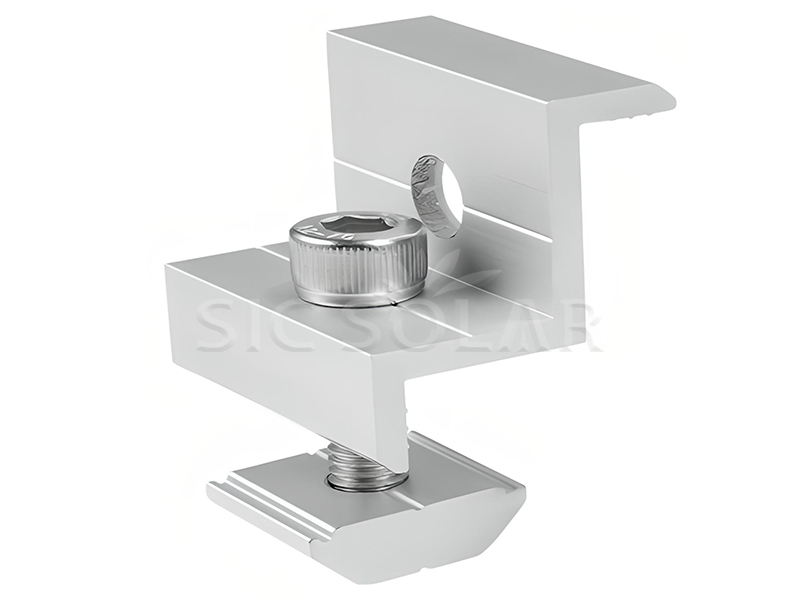

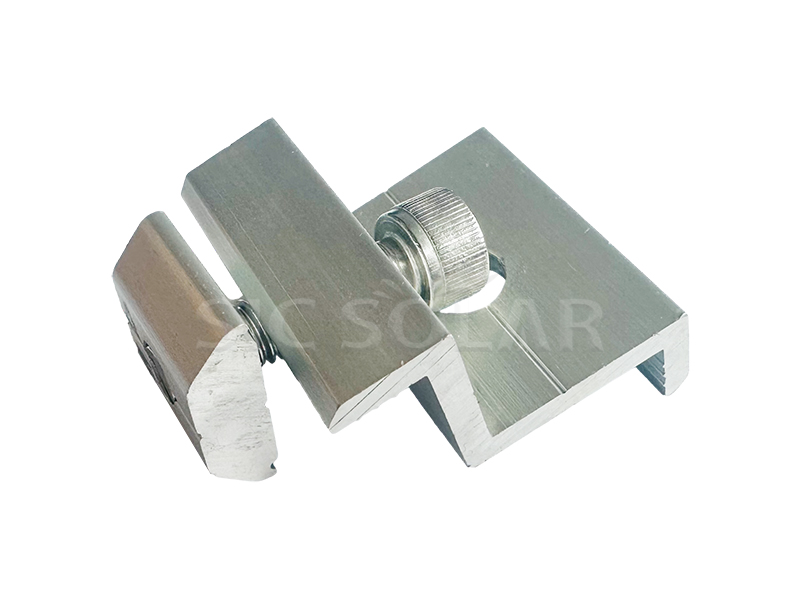

Solar 30/35mm Dual-purpose End Clamp

Solar 30/35mm Dual-Purpose End Clamp is designed to secure solar panels with frame heights of 30mm or 35mm. Its dual-purpose design offers greater flexibility and helps reduce the need to stock separate clamps for different panel sizes.

Brand:

SIC SOLAR

Item NO.:

SIC-EC-C3035

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Roof or Ground

Color:

Black and silver

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clamp

Solar Panel End Clamps

Installation Site	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M²
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

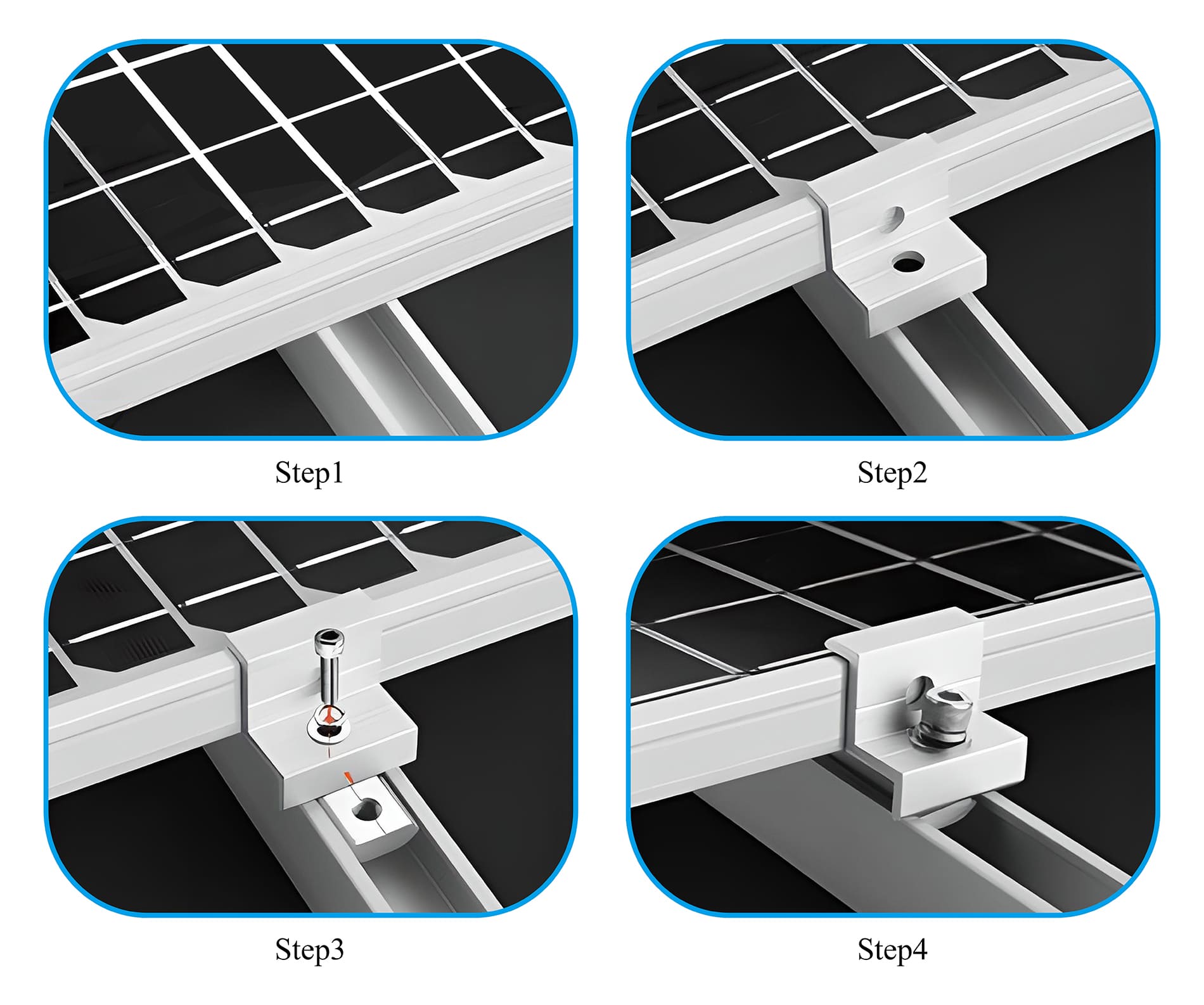

1️⃣ Select the Correct Setting: Check the panel frame height (30mm or 35mm) and adjust the clamp according to the manufacturer's instructions.

2️⃣ Position the Clamp: Place the end clamp against the edge of the solar panel frame and align it with the mounting rail.

3️⃣ Tighten the Fasteners: Insert the bolts into the rail nuts and tighten them to the specified torque using a torque wrench.

4️⃣ Check the Installation: Ensure the clamp sits correctly against the panel frame and all fasteners are securely tightened.

Easy Installation Aluminum Solar Panel End Clamp

Solar panel hold down clamps

☆ Dual-Purpose Design: Fits compatible solar panel frames measuring 30mm or 35mm.

☆ Reduced Inventory Needs: One clamp design accommodates two common frame heights, simplifying purchasing and stock management.

☆ Secure Panel Fixing: Helps keep solar panels in position when correctly installed with compatible rails and hardware.

☆ Easy Installation: The simple fastening structure supports efficient on-site assembly.

Related Certificate

☆ Aluminum Quality Certificate: Provides the material composition details for AL6005-T5 aluminum alloy.

Solar rail installation

Q1: What does “30/35mm dual-purpose” mean?
It means the clamp is designed for solar panel frames measuring either 30mm or 35mm. Follow the manufacturer's instructions to select the correct setting.

Q2: Is this end clamp compatible with all mounting rails?
No. The clamp must match the rail profile and fastening method of the mounting system.

Q3: Can this clamp be used for rooftop and ground-mounted systems?
Yes, provided the clamp, rails, panels, and overall mounting design are compatible.

Q4: How can I prevent the end clamp from loosening?
Use the specified fasteners, follow the recommended tightening torque, and inspect the connections according to the system maintenance plan.

Q5: What information should I provide when requesting a quotation?
Provide the required quantity, panel frame height, mounting rail model, material or finish requirements, and any project-specific installation details.
