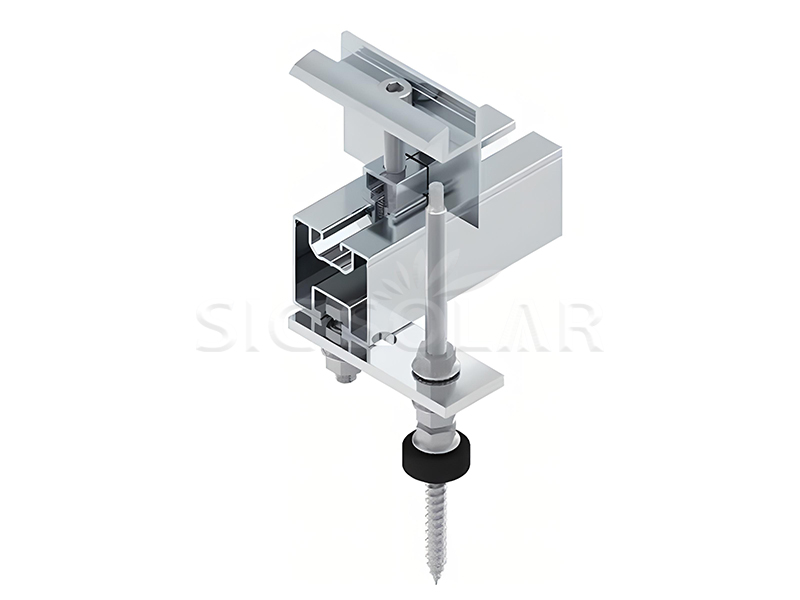

Solar aluminium black/silver end rail clamps
Solar aluminium black/silver end rail clamps
Solar aluminium black/silver end rail clamps

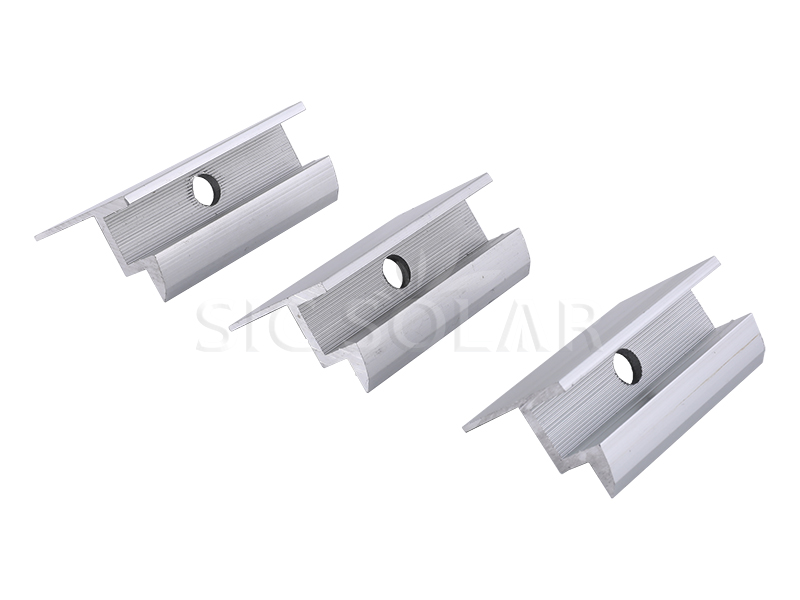

Z type end clamp for framed modules

Z type end clamp for framed modules is a compact and efficient assembly designed to secure the edge of the PV module to the mounting rails. Its "Z" shape provides a streamlined, lightweight design that ensures stability and alignment of the frame solar panels in rooftop and ground mounted systems.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-EC-U
  • Shipping Port:

    Xiamen
  • Installation Site:

    Roof or ground

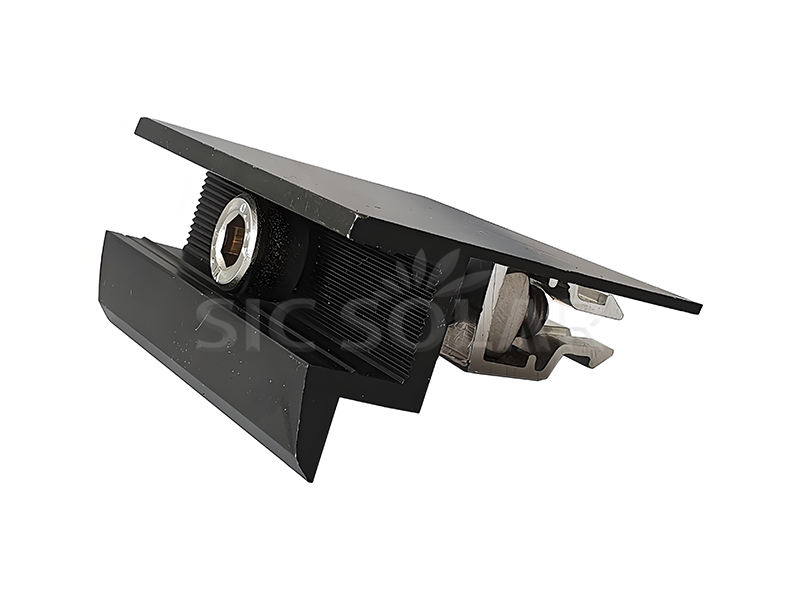

  • Color:

    Black or Silver
  • Material:

    Aluminum
  • Length:

    Customized
  • Thickness:

    Customized

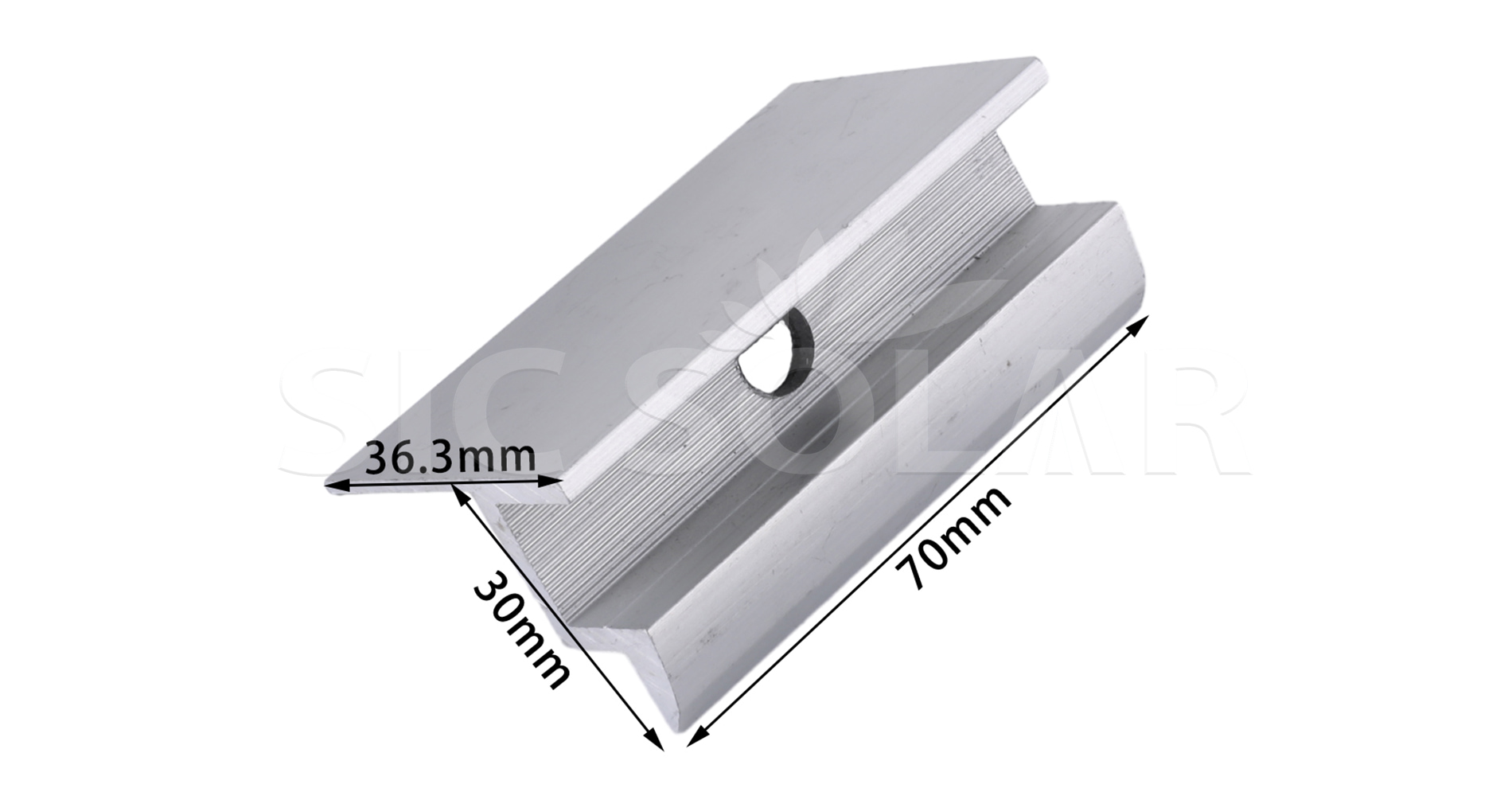

End clamps for solar

Z type end clamp for framed modules fits most standard frame PV modules, making it suitable for a wide range of panel thicknesses (e.g. 30mm, 35mm or custom sizes). Compatible with a wide range of aluminium rail systems.

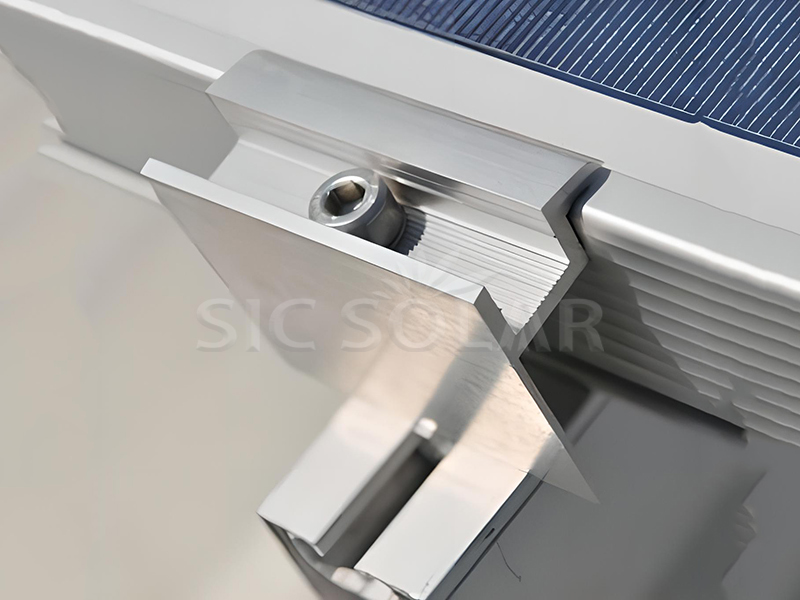

End retaining clamp

Z type end clamp for framed modules. Silver or black color and clamp length could be customized according to client's request.



Pv End Clamp

Name Z type end clamp for framed modules

Installation Site

Pitched roof or ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5

Color

Silver or Black

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

Solar bracket package

Advantages as follow:

☆ Thicker anodized layer -- Effectively prevent corrosion and prolong service life.

☆ Various end clamp design could meet different client's demand for 30-50mm framed panel.

☆ Strong intensity -- It can be used in extremely bad installation condition.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. Can the bolts also be made black ?

Yes.



Q2. Can the clamps be customized ?

Yes.
