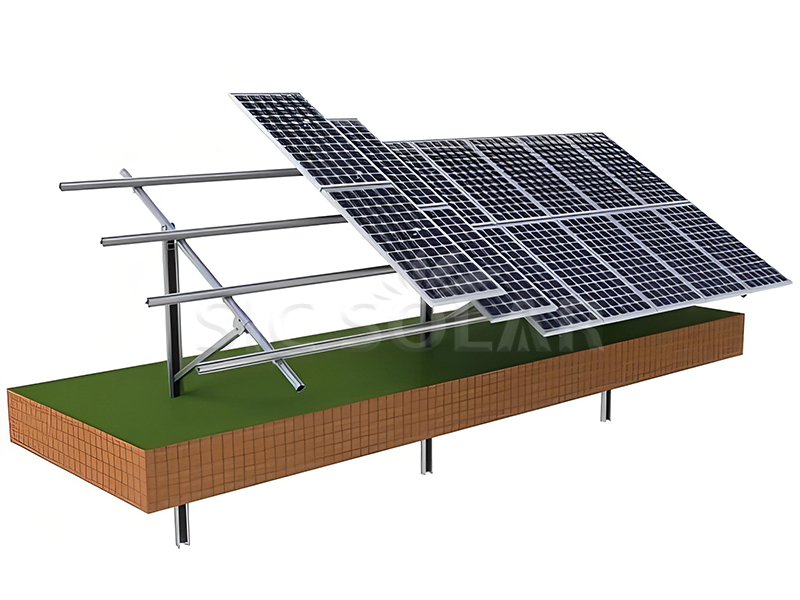

C Type Steel Pile Foundation Solar Ground Power System

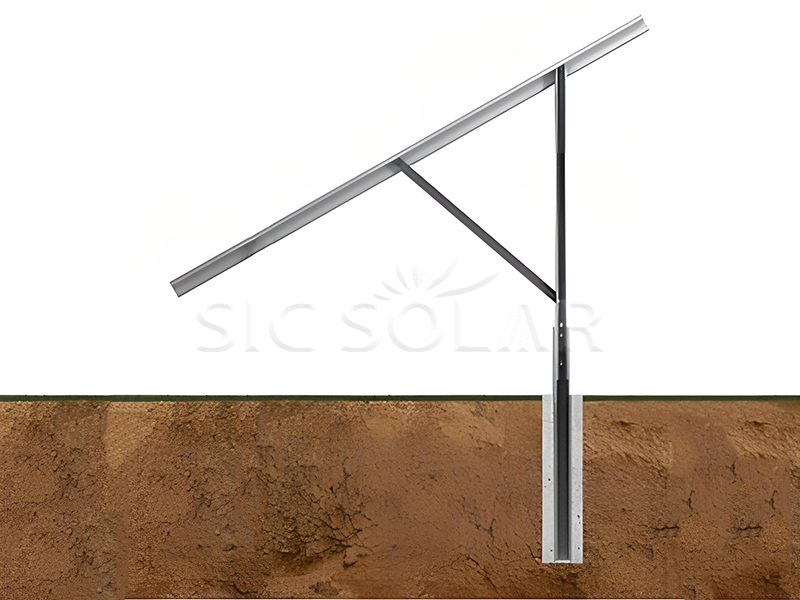

C-shaped steel pile foundation solar ground power generation system uses C-shaped steel piles. It’s a solid, efficient way to mount big solar setups, works well even on tricky land. Basically, the C-shaped steel piles give a steady base for the solar panels.

Brand:

SIC SOLAR

Item NO.:

SIC-C-GM

Installation Site:

Open field

Tilt Angle:

0-60 degrees

Material:

Galvanized steel

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Project Technical Details Installation Guide Package Advantage FAQ

galvanized steel solar panel mounting system

Name	C Type Steel Pile Foundation Solar Ground Power System
Installation Site	Open Field Ground
Material	Hot dipped galvanized steel & Stainless steel
Wind Speed	<60M/S
Snow Load	<1.4KN/M2
Color	Natural
Warranty	10 years warranty and 25 years service time

1️⃣ Check the Site: Look at the ground, the lay of the land, and the environment to make sure it’s good for piling.

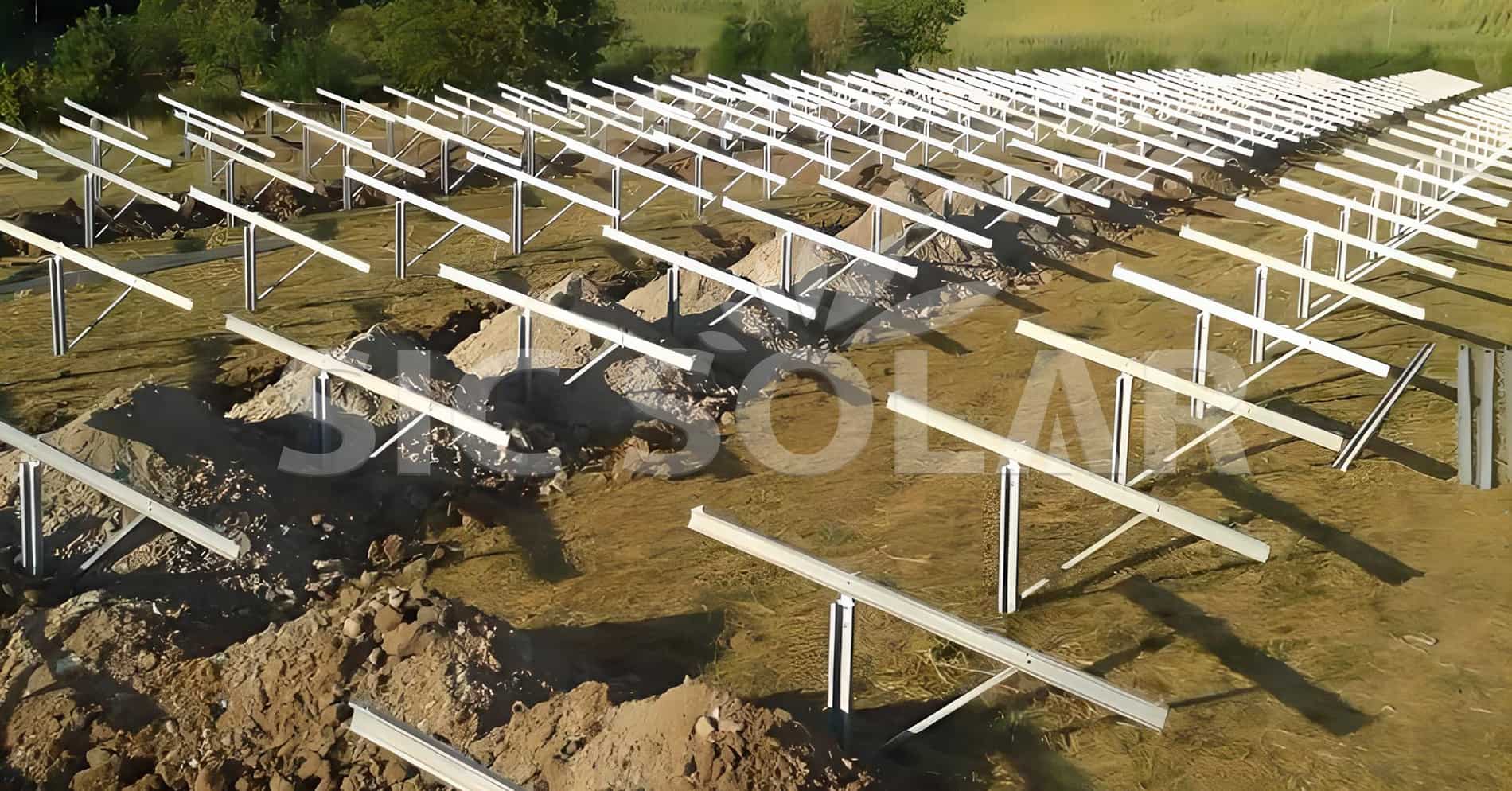

2️⃣ Drive in the Piles: Use a pile driver to stick those C-shaped steel piles deep enough, making sure they’re lined up right.

3️⃣ Put the Frame Together: Hook up the rails and supports to the piles to build the panel frame.

4️⃣ Add the Panels: Fasten the panels to the frame and tilt them just right to grab the most sun.

5️⃣ Wire it Up: Hook the panels up to the inverter based on the plan and local rules.

6️⃣ Test the System: Give it a full check to be sure everything’s running like it should.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Solar bracket package

☆ Works almost anywhere, whatever the ground is like.

☆ You can adjust the solar angle from 0 to 60 degrees. Get energy when the sun changes angle

☆ Mostly pre-assembled. Saves time and money on labor, needs few tools.

☆ The C-type pile is tough, doesn’t corrode easy, and can handle salt.

☆ Super fast to install. Just use a pile driver to ram the C-type piles into the ground.

Related certificate:

☆ Strength Report: The mounts are tested to handle the strength you need, like for strong wind and lots of snow.

Q1. What’s the MOQ request?

MOQ=50KW.

Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
