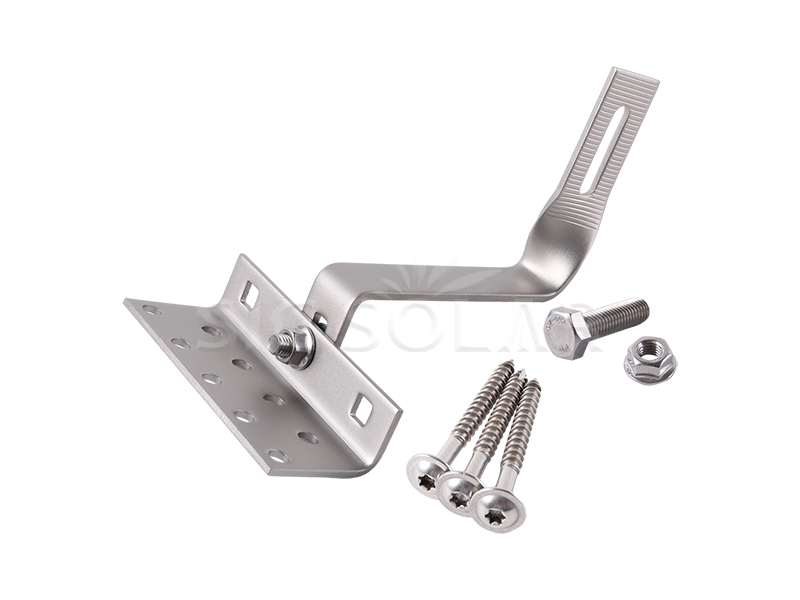

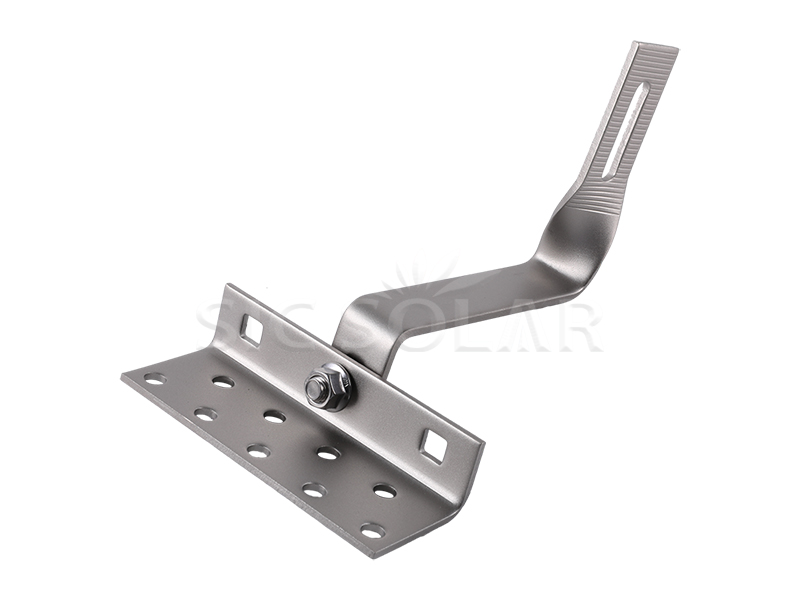

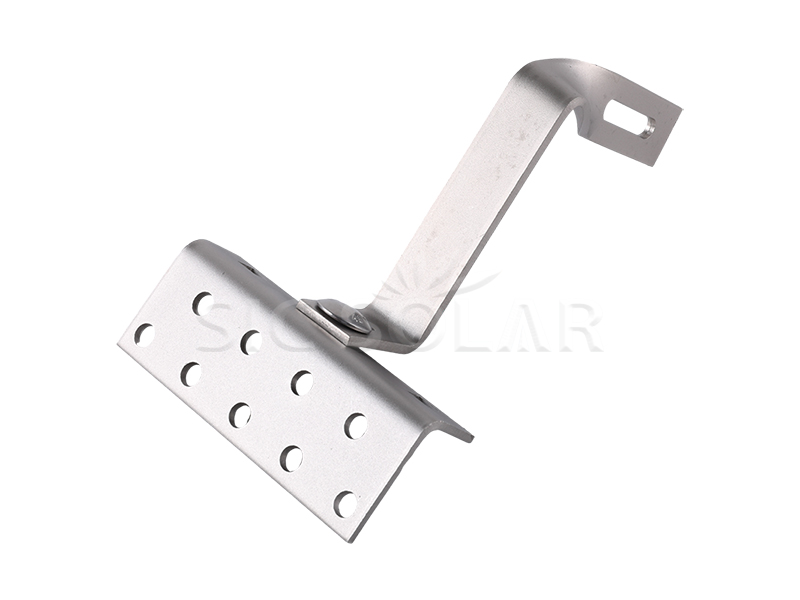

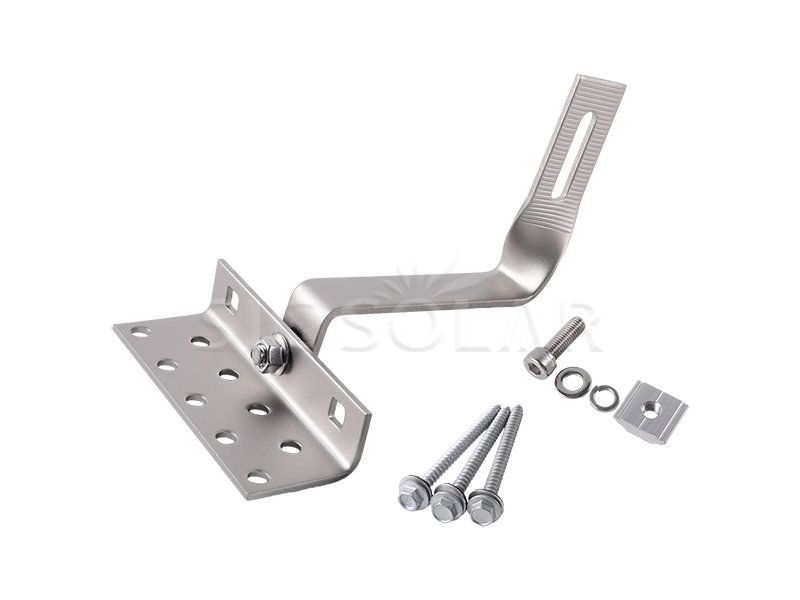

Twist Adjustable Photovoltaic Tile Roof Hooks

Click here to learn more

1️⃣ Locate the roof rafters – Identify the wooden or metal beams beneath the shingles.

2️⃣ Slightly lift the shingles – Gently lift the shingles so they sit over the hooks, but don't damage them.

3️⃣ Insert the twist hooks – Slide the hooks under the shingles and twist them into place above the rafters.

4️⃣ Attach to the rafters – Secure the hooks to the rafters using stainless steel screws or lag bolts.

5️⃣ Adjust the hook position – Use the adjustable slots to adjust the height and position for perfect rail placement.

6️⃣ Reposition the shingles – Return the shingles to their original position, ensuring they are flush with the hooks.

7️⃣ Install the rails and panels – Attach the mounting rails to the hooks, then secure the solar panels using the center and end clamps.

Advantages as follow:

☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.

☆ High strength – Stainless steel material makes the hook can sustain strong wind and heavy snow.

☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGSCertificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

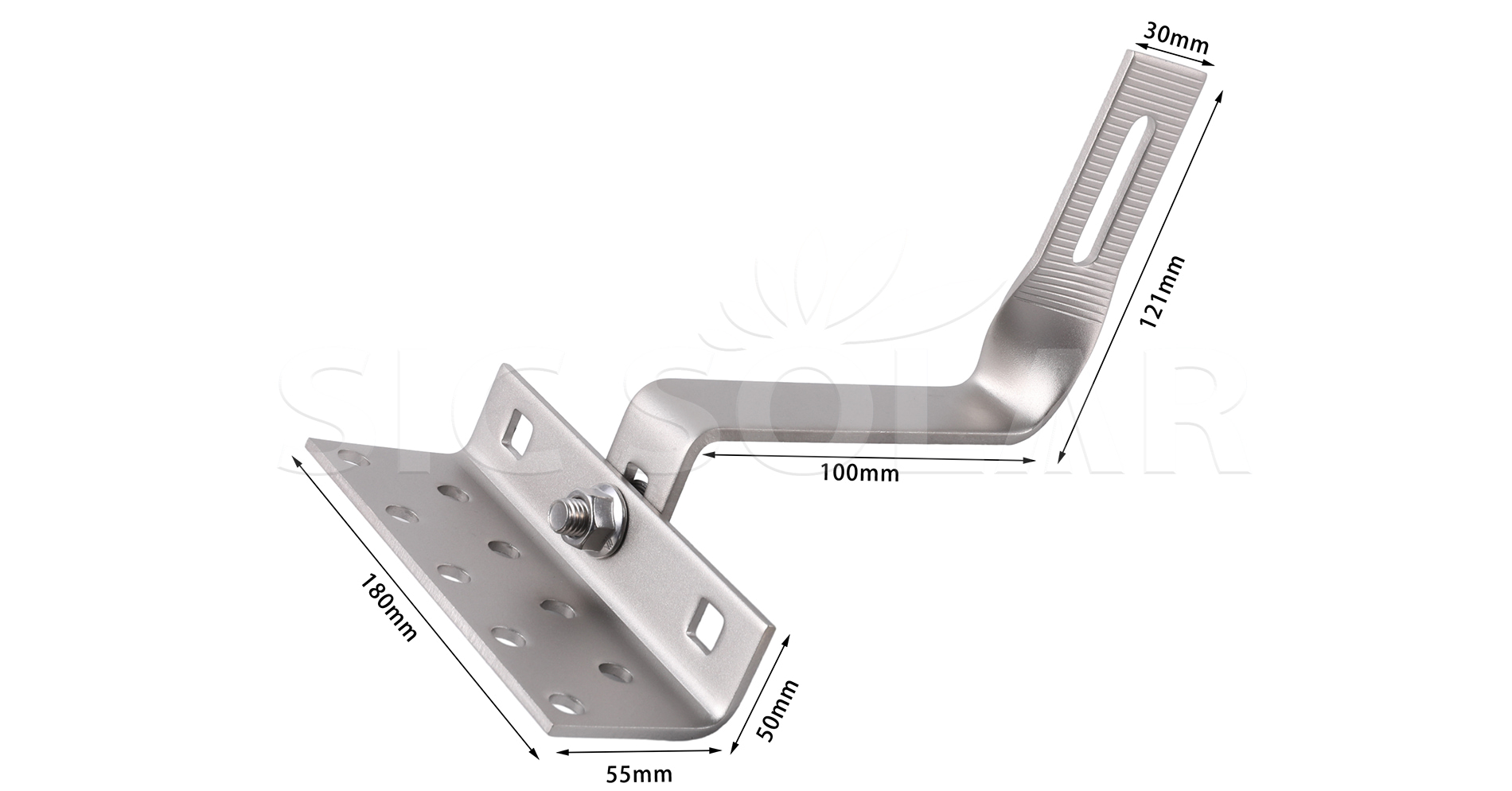

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
