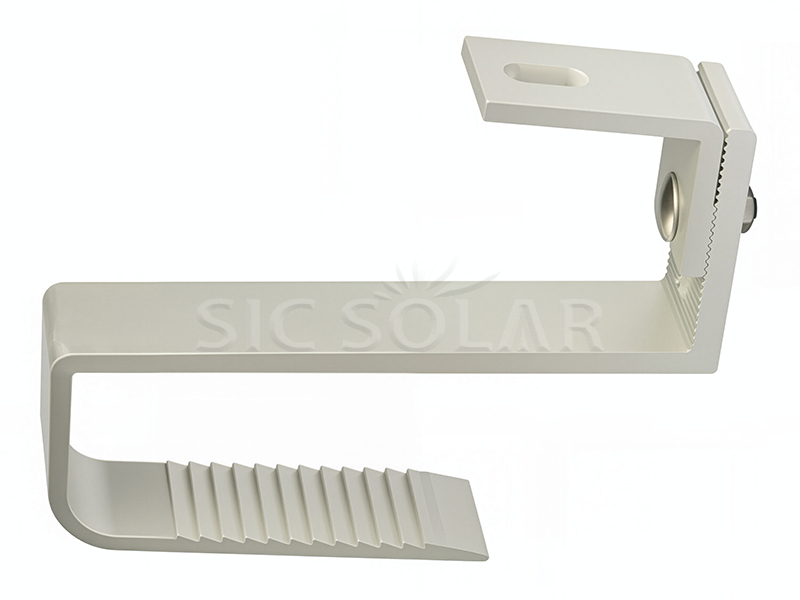

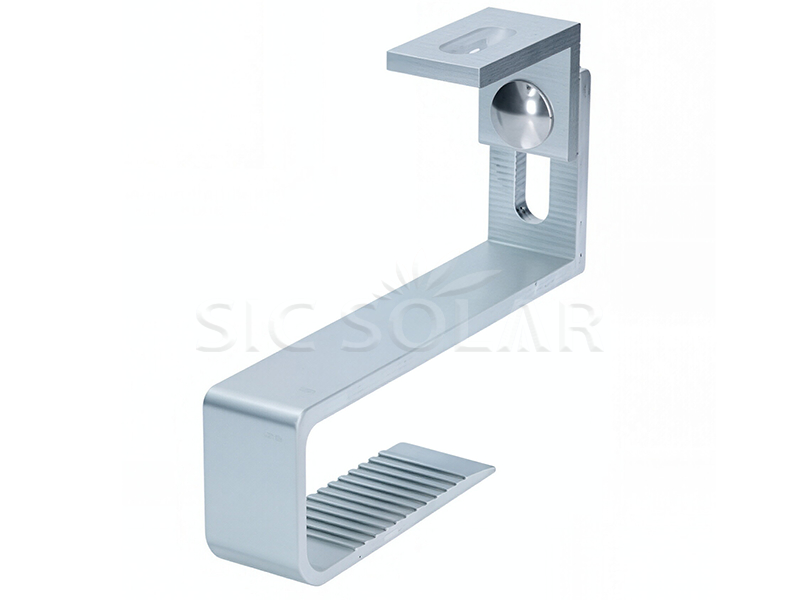

Adjustable Solar Roof Aluminium Hooks

Adjustable Solar Roof Aluminium Hooks are designed for secure and flexible installation of solar panels on tiled roofs. With adjustable height and positioning, they help achieve a stable mounting structure while adapting to different roof conditions.

Brand:

SIC SOLAR

Item NO.:

SIC-AH-05

Shipping Port:

Xiamen port

Installation Site:

Pitched roof

Color:

Silver and Black

Material:

AL6005-T5

Warranty:

10 years and 25 years

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

Click here to learn more hooks

Name	Adjustable Solar Roof Aluminium Hooks
Installation Site	Pitched roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Silver and Black
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Locate the roof rafters: Find and mark the locations of the rafters for the installation hooks.

2️⃣ Remove or lift the roof tiles: Carefully lift the tiles to make contact with the rafters, avoiding damage.

3️⃣ Secure the hooks: Use stainless steel screws or bolts to secure the adjustable hooks to the rafters.

4️⃣ Adjust the height and position: Fine-tune the hook height to ensure alignment with the mounting rails.

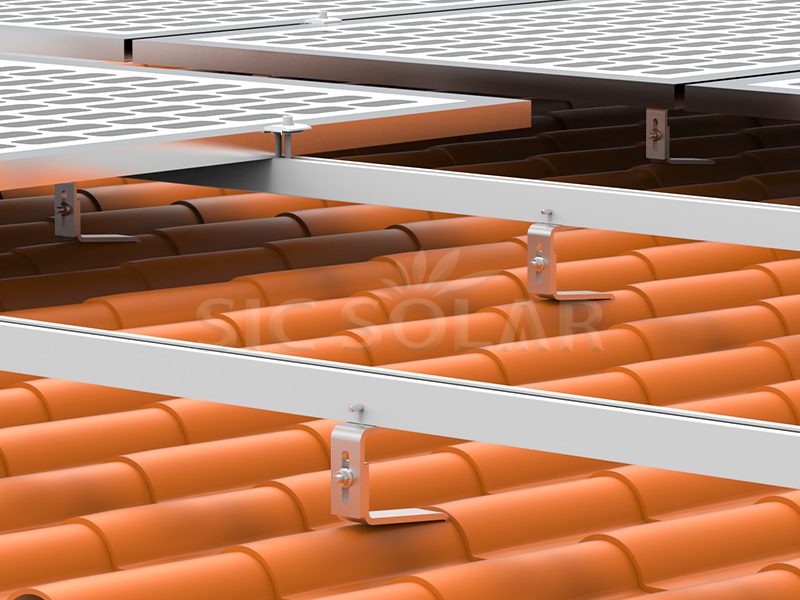

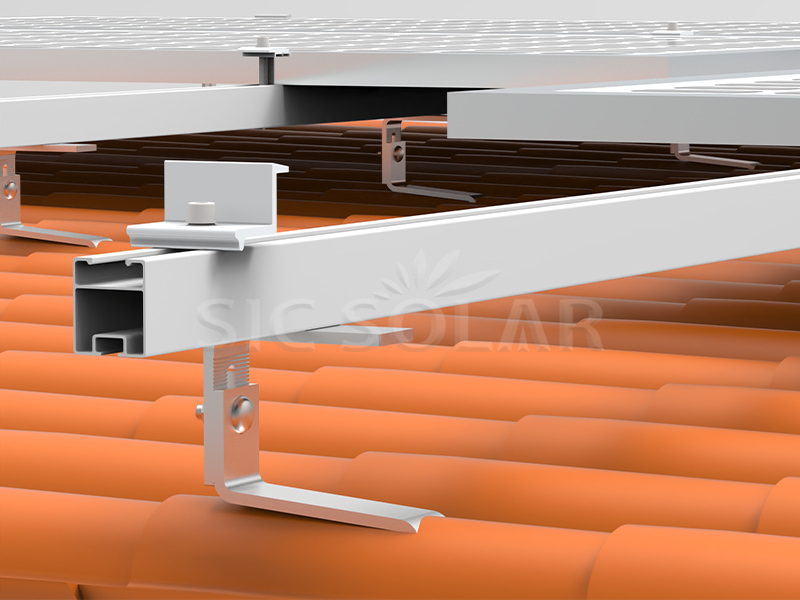

5️⃣ Reinstall the tiles and install the rails: Place the tiles back in their original positions and install the aluminum rails onto the hooks.

6️⃣ Install the solar panels: Use center and end clips to secure the solar panels to the rails.

Solar bracket package

☆ High anodized -- Effectively prevent corrosion and prolong service life.

☆ High-quality and light weight aluminum -- Quick and easy to mount.

☆ Strong intensity -- It can be used in extremely bad installation condition.

☆ Decrease Labor -- No cutting of the tile required.
