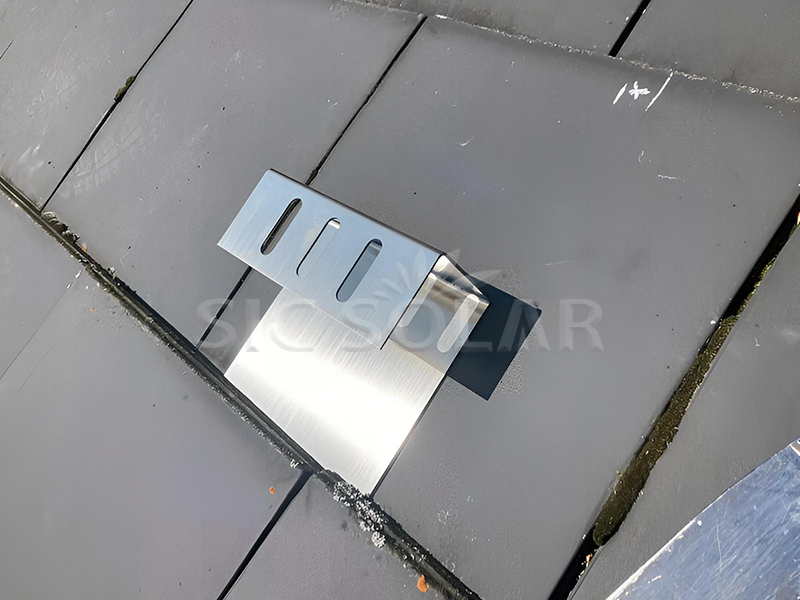

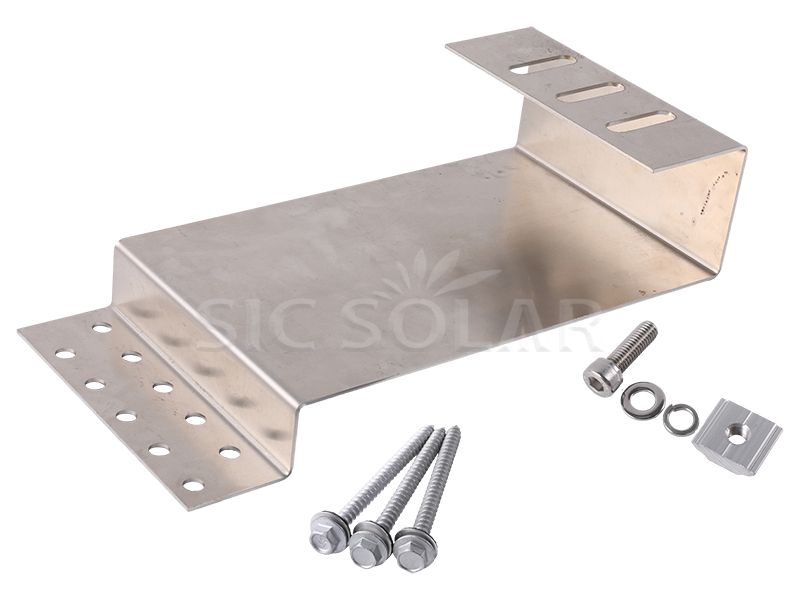

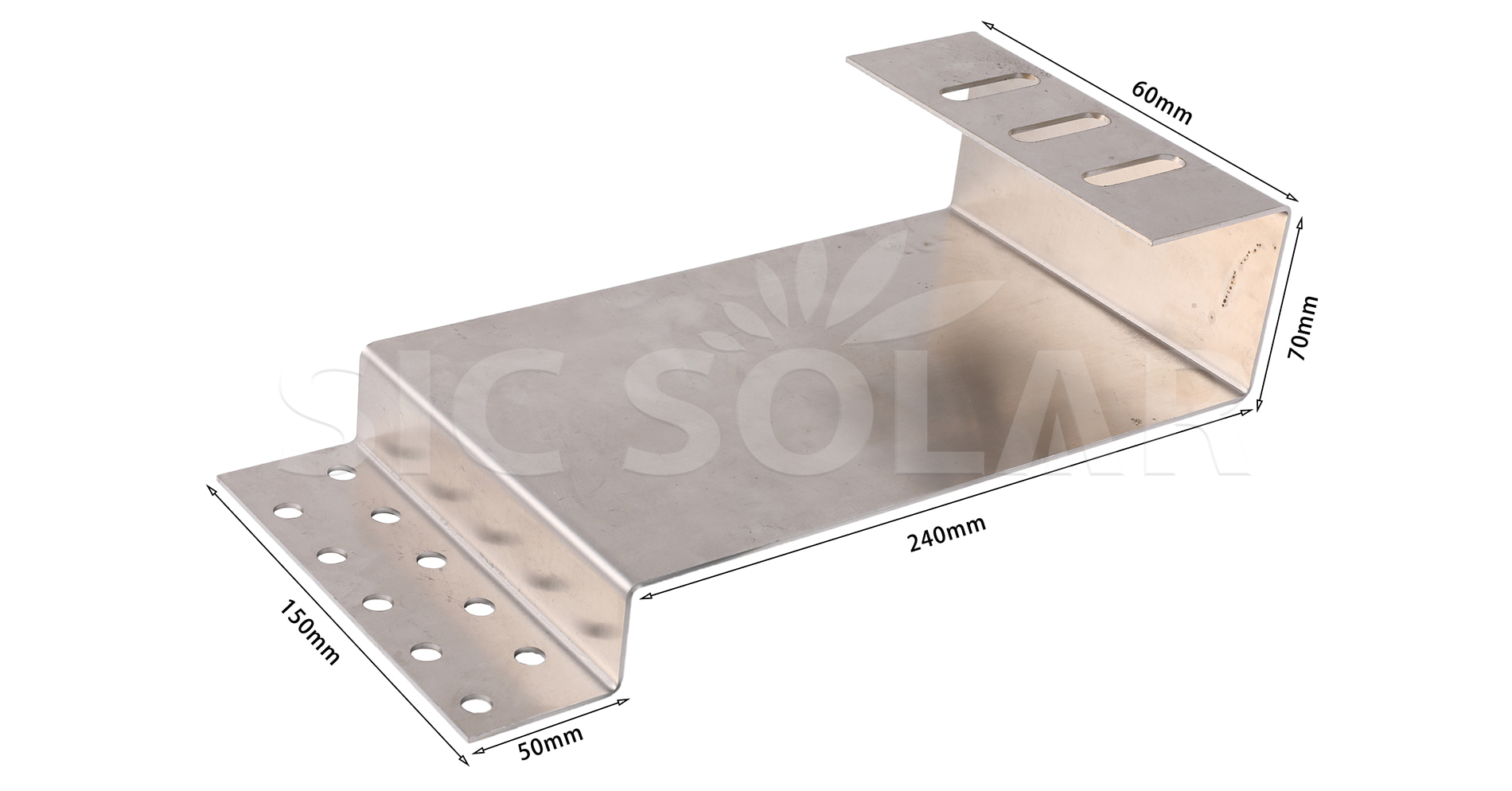

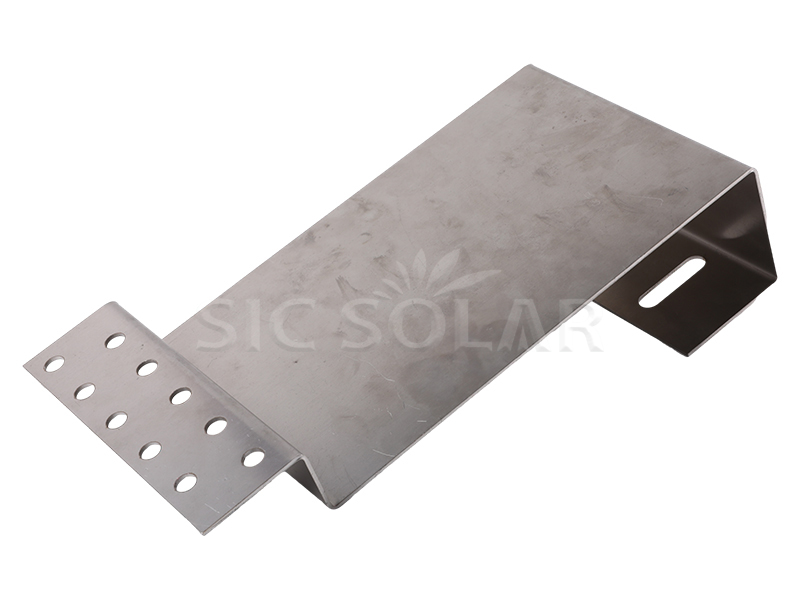

Solar Mounting Plain Tile Roof Hook

Click here to learn more

1. Preparation

• Required Tools: Measuring tape, chalk line, power drill and bits, torque wrench, and suitable safety equipment.
• Roof Inspection: Check that the roof structure can support the additional weight of the solar system.

2. Installation Steps

1️⃣ Mark the Hook Positions – Mark the installation points according to the roof structure, panel layout, and system design.

2️⃣ Remove the Tiles – Carefully remove the tiles to access the rafters or supporting beams.

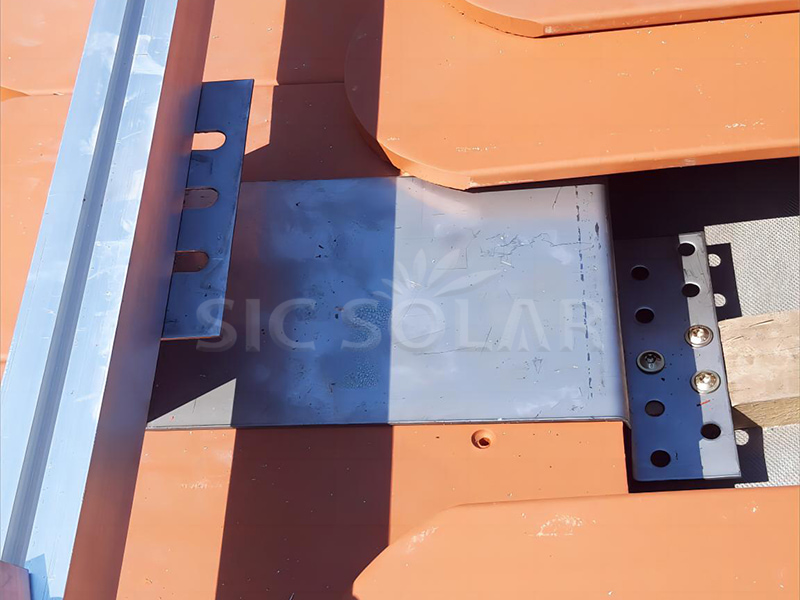

3️⃣ Install the Hooks – Align the hooks with the rafters and secure them with suitable stainless steel bolts or screws.

4️⃣ Replace the Tiles – Cut the tiles where necessary to fit around the hooks, then put them back into position.

5️⃣ Install the Rails – Attach the mounting rails to the hooks and check that they are properly aligned and level.

6️⃣ Mount the Panels – Secure the solar panels to the rails using suitable mid clamps and end clamps.

7️⃣ Complete the Grounding – Ground the system according to local electrical regulations and project requirements.

3. Final Inspection

• Make sure all hooks, rails, and panels are securely fixed.
• Check that the mounting structure is straight, level, and stable.
• Confirm that the installation meets applicable safety and performance requirements.

☆ Secure Roof Connection: Provides a stable fixing point between the roof structure and mounting rails.

☆ Suitable for Plain Tile Roofs: Designed for compatible plain and flat tile roofing applications.

☆ Durable Construction: Corrosion-resistant materials support long-term outdoor use.

☆ Roof-Friendly Installation: Can be fitted with limited changes to the existing roof when properly installed.

☆ Easy Installation: Works with compatible rails and standard solar mounting accessories.

Q1: Can the roof hook be used on all plain tile roofs?
Not necessarily. The hook must match the tile shape, roof structure, and available fixing space. Compatibility should be checked before installation.

Q2: Does installing the roof hook require removing the tiles?
The necessary tiles usually need to be lifted or temporarily removed to access the fixing points. They should be handled carefully and correctly replaced after installation.

Q3: Can the hook be used with different solar rails?
Yes, as long as the hook and rail connection are compatible and the correct mounting accessories are used.

Q4: Can the roof hook be customized?
Yes. The dimensions, hook shape, fixing holes, and other details can be adjusted according to the roof type and project requirements.

Q5: Does the roof hook affect roof waterproofing?
The installation should preserve the roof’s weather protection. Tiles must be correctly repositioned, and any required sealing or adjustment should follow the roofing and mounting system instructions.
