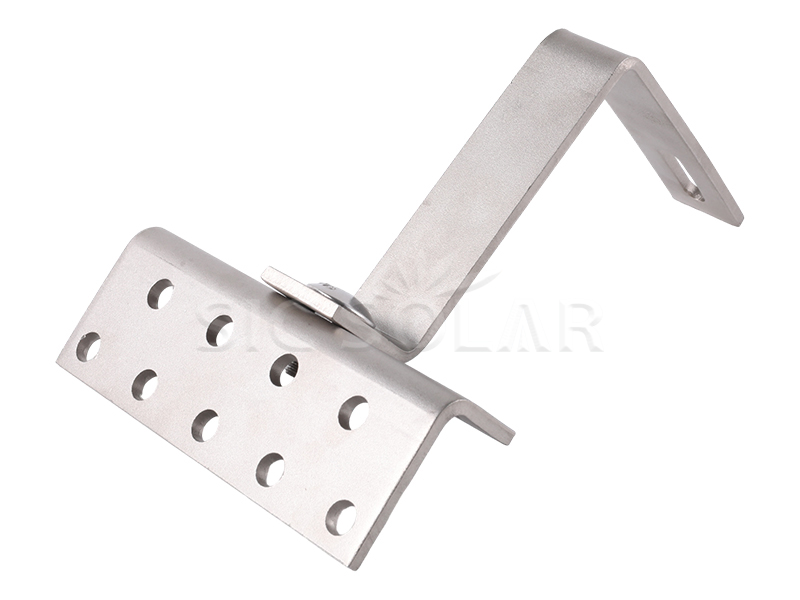

Solar Panel Shingle Tile Roof Hook

Solar Panel Shingle Tile Roof Hook is designed for installing solar panels on shingle tile roofs. It connects the roof structure to the solar mounting rails, providing a stable fixing point for PV panels.

Brand:

SIC SOLAR

Item NO.:

SIC-TH-09

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Tile roof

Color:

Natural or Customized

Material:

SUS304

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

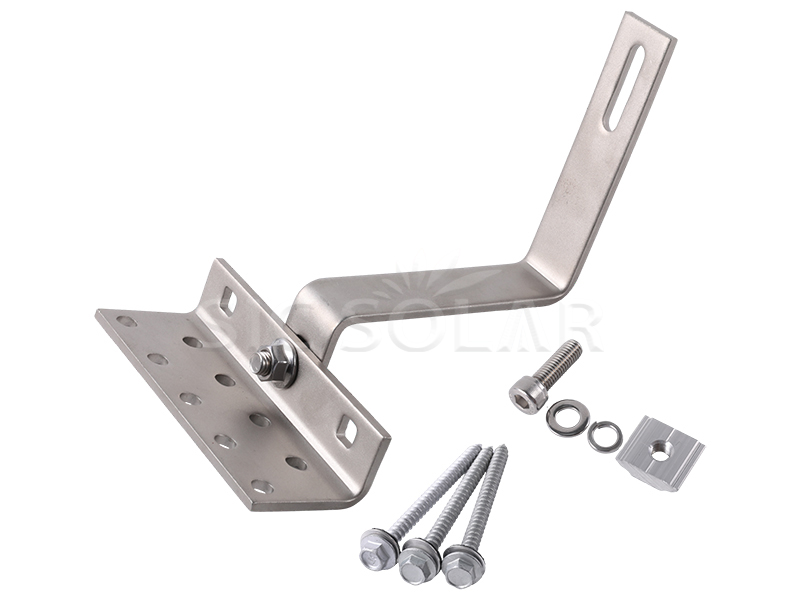

Components Video Technical Details Installation Guide Package Advantage FAQ

Click here to learn more

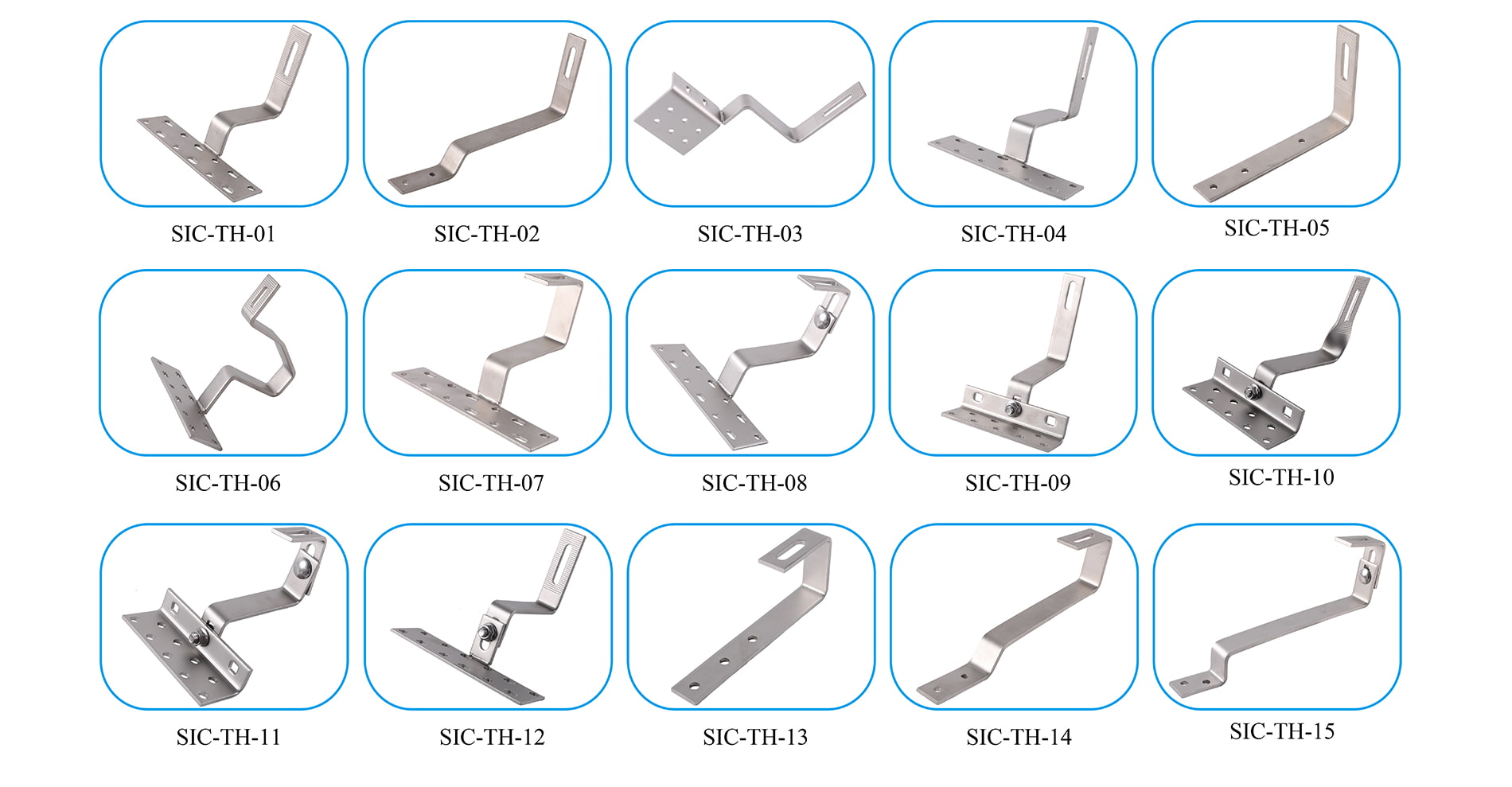

Tile Roof Hook Solar Racking

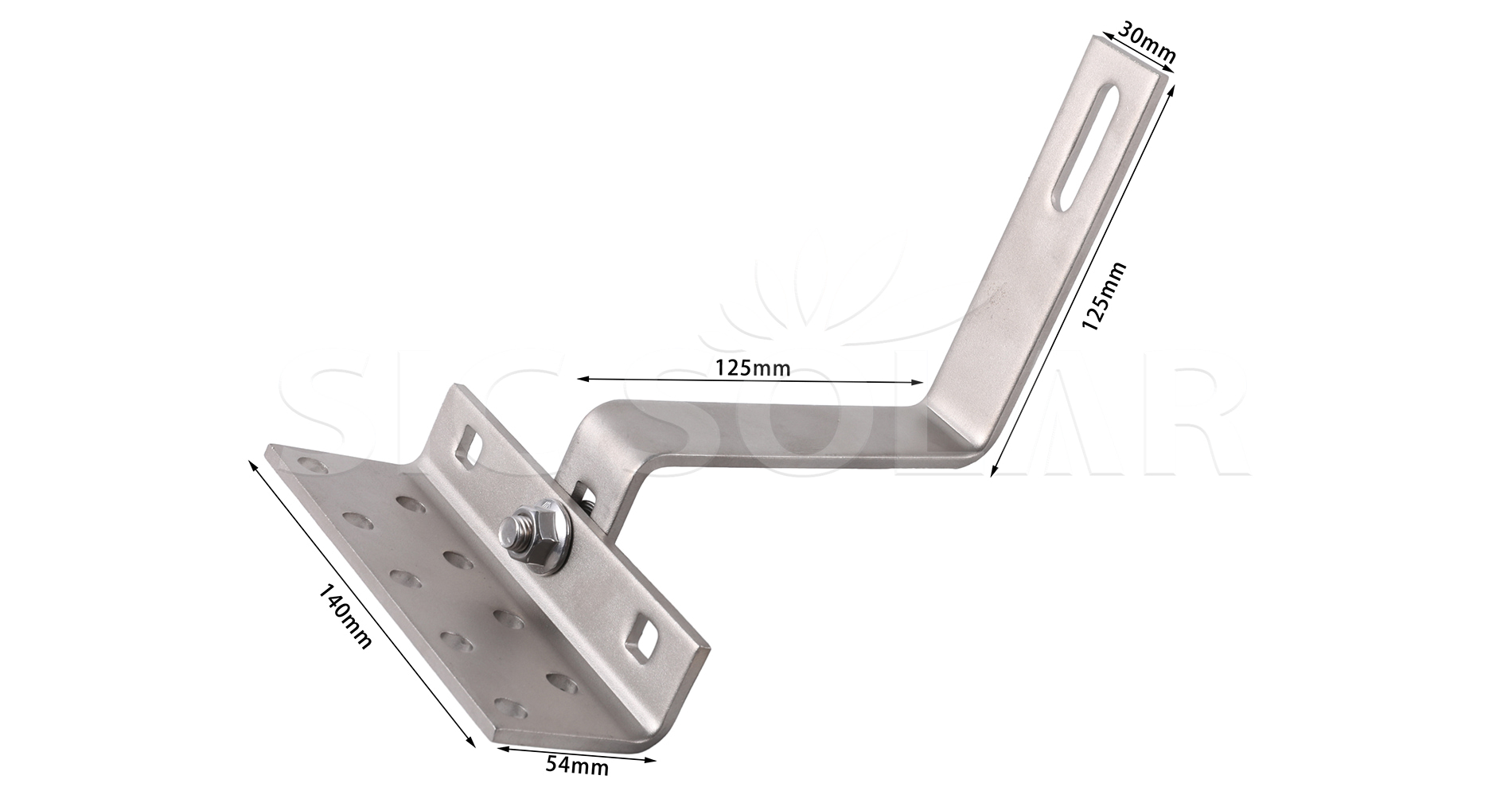

Name	Solar Panel Shingle Tile Roof Hook
Material	SUS304
Sheet metal thickness	≧4mm
Warranty	10 Years warranty and 25 Years lifetime
Applicable roof	Tile Roof
Range of bolt torque	25-28N*m
Value of pullout resistance	5KN
Value of pressure resistance	5KN

1️⃣ Mark the Hook Positions
Mark the fixing points according to the panel layout and roof structure.

2️⃣ Lift or Remove the Shingles
Carefully lift or temporarily remove the necessary shingles to access the roof structure.

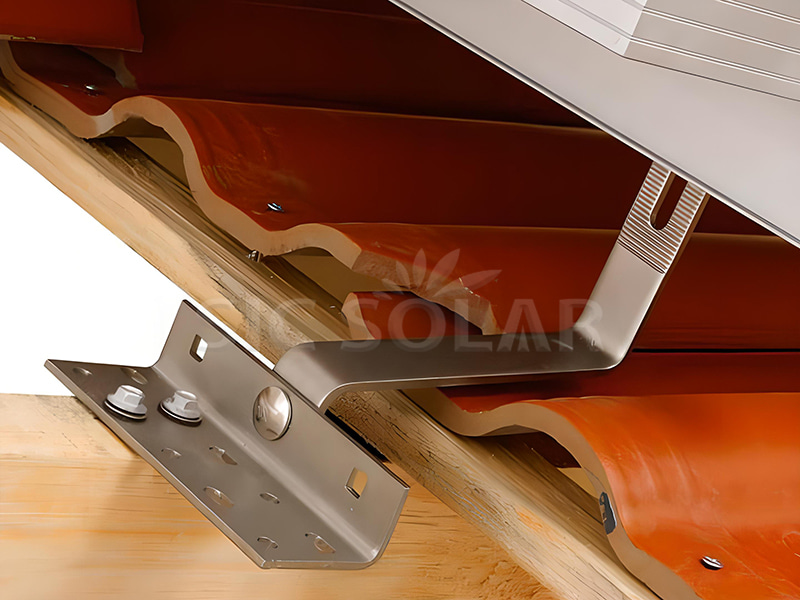

3️⃣ Install the Hooks
Align the hooks with the supporting rafters or beams and secure them with suitable stainless steel screws.

4️⃣ Replace the Shingles
Cut the shingles where necessary to fit around the hooks, then reinstall them properly to help maintain roof protection.

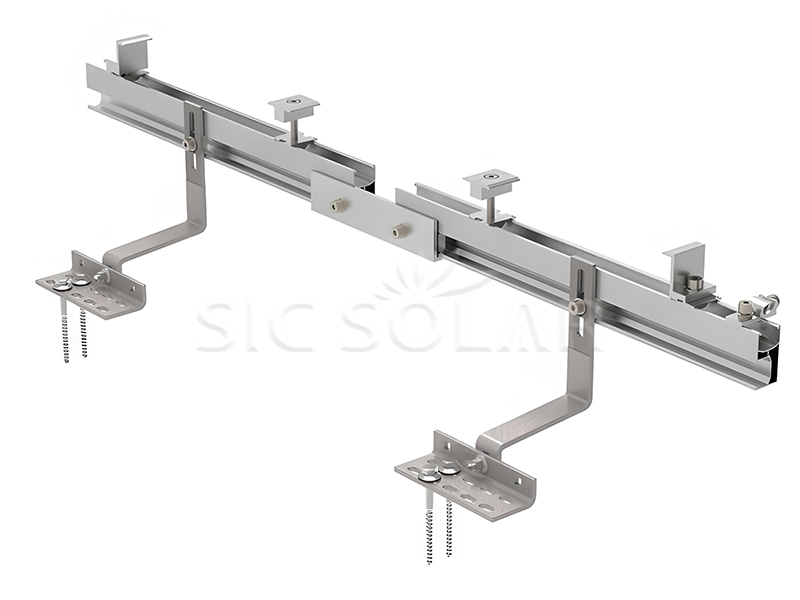

5️⃣ Install the Mounting Rails
Attach the rails to the hooks and check that they are properly aligned and level.

6️⃣ Mount the Solar Panels
Secure the panels to the rails using suitable mid clamps and end clamps.

7️⃣ Complete the Grounding
Ground the system according to local electrical regulations and project requirements.

Solar bracket package

☆ Durable Construction: Made from suitable metal materials for reliable outdoor performance.

☆ Flexible Installation Options: Available in fixed or adjustable designs, depending on project requirements.

☆ Compatible with Solar Mounting Systems: Works with matching rails, clamps, and other PV mounting accessories.

Related Certificates

☆ CE Certificate: Available for the solar tile hook roof mounting system.

☆ SGS Certificate: Available for the SUS304 hook material.

☆ SGS Certificate: Available for the SUS304 screw material.

Q1: Can this roof hook be used on all shingle tile roofs?
Not necessarily. Shingle profiles, roof structures, and fixing requirements vary. The hook should be selected according to the actual roof type and compatibility requirements.

Q2: Does installation require removing the roof tiles?
Usually, some shingles need to be lifted or temporarily removed to access the fixing points and install the hook. The exact method depends on the roof design and hook structure.

Q3: Can the roof hook be adjusted?
Some models offer adjustable height or positioning, while others have a fixed design. Adjustable hooks can help accommodate different shingle profiles and mounting requirements.

Q4: How can I prevent roof leaks after installation?
Use suitable flashing, sealing materials, and installation methods for the roof type. Make sure the hook and fasteners are correctly installed, and check the surrounding shingles and waterproofing details.

Q5: Can I request a customized Solar Panel Shingle Tile Roof Hook?
Customization may be available depending on the supplier and project requirements. Roof type, hook dimensions, material, and mounting details can be discussed with the manufacturer.
